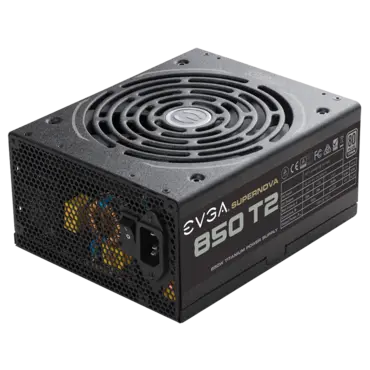

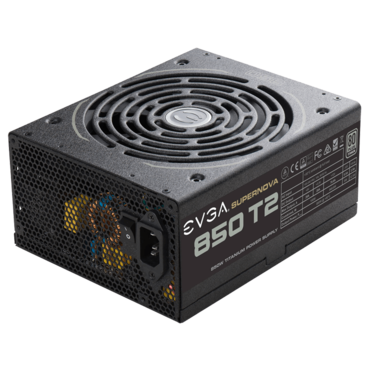

850 T2, 80 PLUS Titanium 850W, ECO Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 10262089
- Manufacturer: EVGA
- MPN: 220-T2-0850-X1
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$292.51
- Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI & AMD Crossfire Ready
- Double Ball Bearing fan for exceptional reliability and quiet operation
- Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
- 80 PLUS Titanium certified, with 94% (115VAC) / 96% (220VAC~240VAC) efficiency or higher under typical loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
| CABLE LENGTH | |
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 700mm (m) |
| PCIE Cable | 2x 700mm, 850mm (m) 2x 700mm (m) |
| SATA Cable | 1x 550mm, 650mm, 750mm, 850mm (m) 2x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| Connector Quantity | |
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIE | 4x 8pin (6+2), 2x 6pin |
| SATA | 10x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |
| Input | |
| Input Voltage | 100 - 240 VAC |
| AC Input | 10A |
| Input Frequency Range | 50 - 60 Hz |
| Efficiency | 94% (115VAC) / 96% (220VAC~240VAC) or Higher Typical |
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 8 lbs |
| Size | 85mm (H) x 150mm (W) x 180mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 140mm Double Ball Bearing |

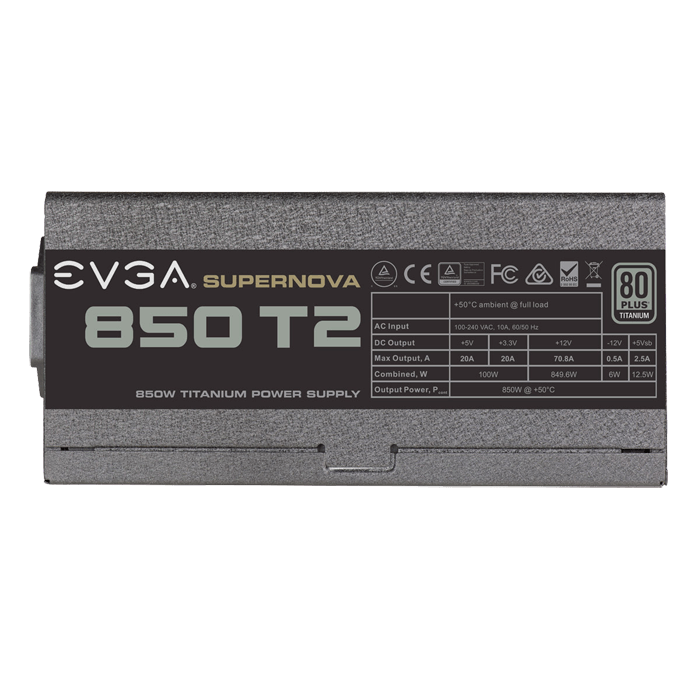

| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max output | 20A | 20A | 70.8A | 2.5A | 0.5A |
| 70.8A | |||||
| 100W | 849.6W | 12.5W | 6W | ||
| Total | 850W @ +50C | ||||
