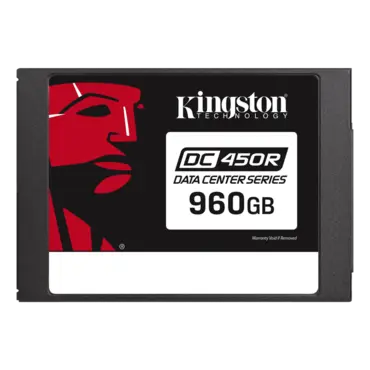

960GB DC450R 7mm, 560 / 530 MB/s, 3D TLC NAND, SATA 6Gb/s, SED, 2.5" SSD
Quantity:
- SKU: 13047524
- Manufacturer: KINGSTON
- MPN: SEDC450R/960G
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$142.28
960GB DC450R 7mm, 560 / 530 MB/s, 3D TLC NAND, SATA 6Gb/s, SED, 2.5" SSD
Kingston 960GB DC450R (SEDC450R/960G). Kingston’s Data Center 450R (DC450R) is a high performance 6Gbps SATA SSD with 3D TLC NAND, designed for Read Centric application workloads. This streamlined SSD delivers on performance while providing exceptional I/O and latency predictability, a requirement now amongst Data Center Class SSDs. Built to Kingston’s strict QoS requirements, the DC450R is designed to ensure performance consistency over a wide range of read intensive and read caching workloads.
Read-Centric Applications
- Performance consistency in Edge Computing and CDN applications.
Reduce application latencies
- Database and web-based applications leverage predictable I/O and latency performance.
Data Integrity Protection
- ECC protection with advanced read/disturb management safeguards against data corruption; end-to-end data protection.
Strategically Optimized
- Focused feature set enables data centers to select the most cost effective SSD for their workload(s).
| Form Factor | 2.5" |
| Interface | SATA Rev. 3.0 (6Gb/s) – With backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities | 960GB |
| NAND | 3D TLC |
| Self-Encrypting Drive (SED) | XTS-AES 256-bit Encryption |
| Sequential Read/Write | 960GB – 560MBs/530MBs |
| Steady-State 4k Read/Write | 960GB – 98,000/26,000 IOPS |
| Quality of Service (Latency)2,3,4 | TYP Read/Write: <500 µs / <2 ms |
| Hot-Plug Capable | Yes |
| Static and Dynamic Wear Leveling | Yes |
| Power Loss Protection (Power Caps) | No |
| Enterprise SMART tools | Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature |
| Endurance DC450R | 960GB — 582TB (0.3 DWPD/5yrs) |
| Power Consumption | 960GB: Idle: 1.15W, Average Read: 1.3W, Average Write: 3.18W, Max Read: 1.3W, Max Write: 4.25W |
| Storage temperature | -40°C ~ 85°C |
| Operating temperature | 0°C ~ 70°C |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| MTBF | 2 million hours |
| Warranty/support6 | Limited 5-year warranty with free technical support |
