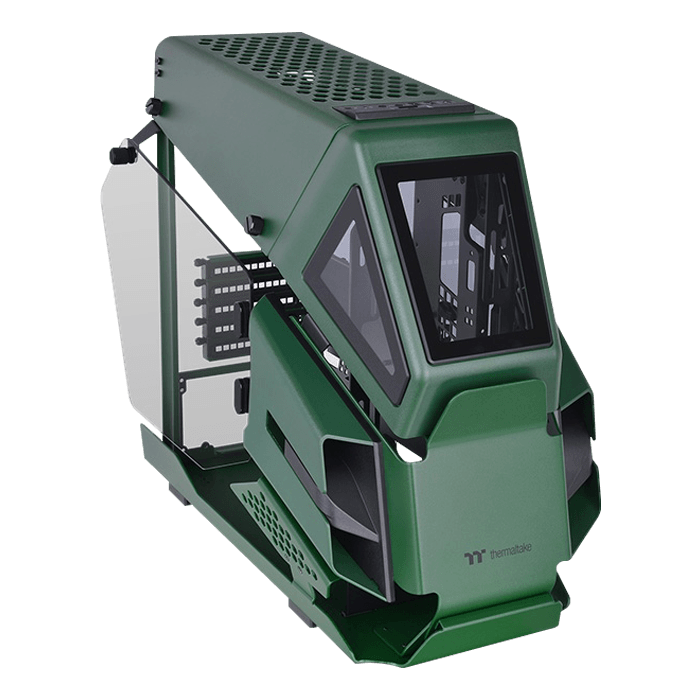

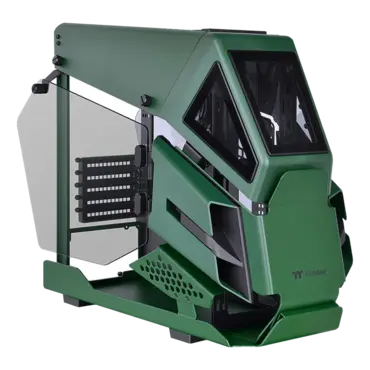

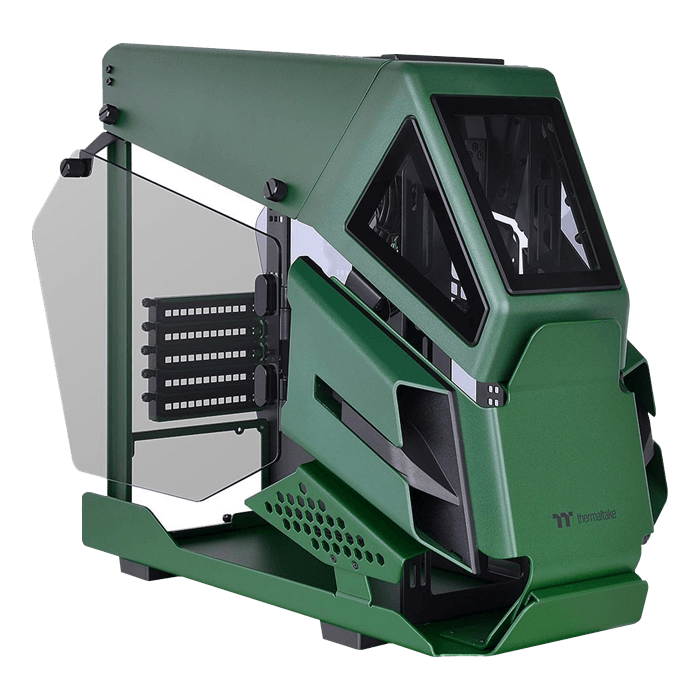

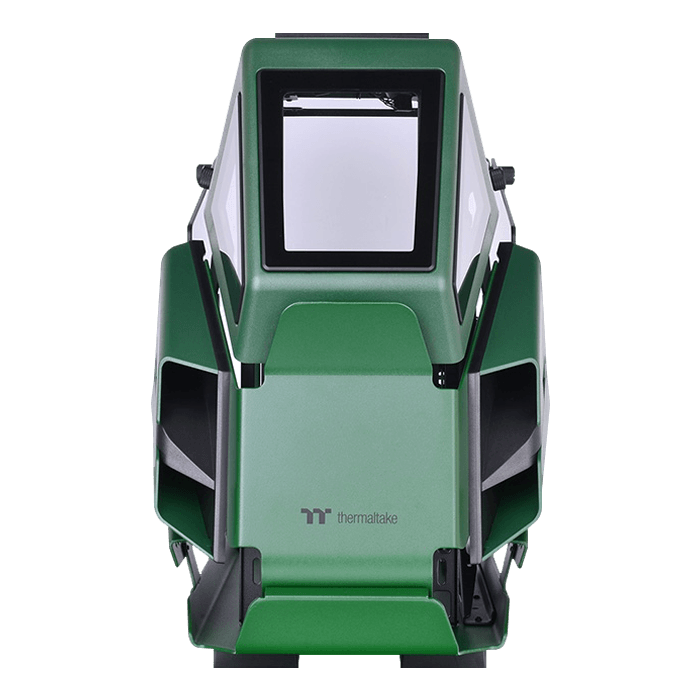

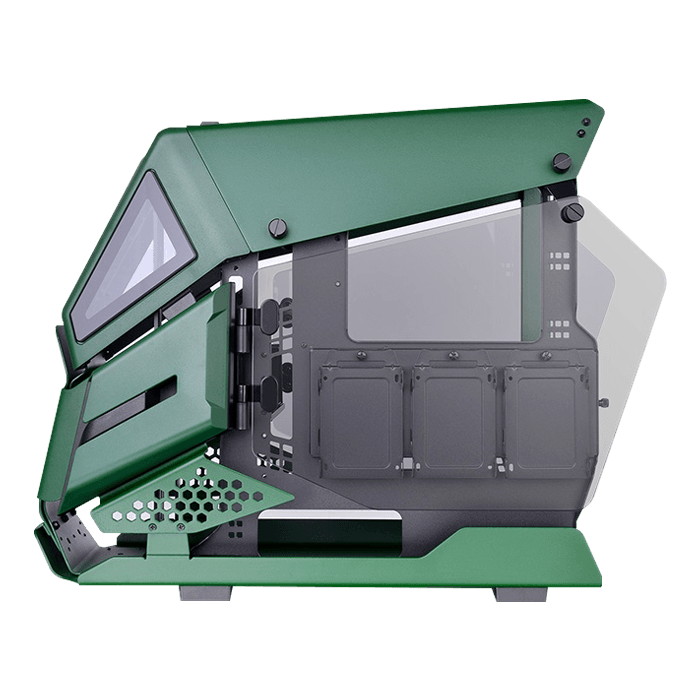

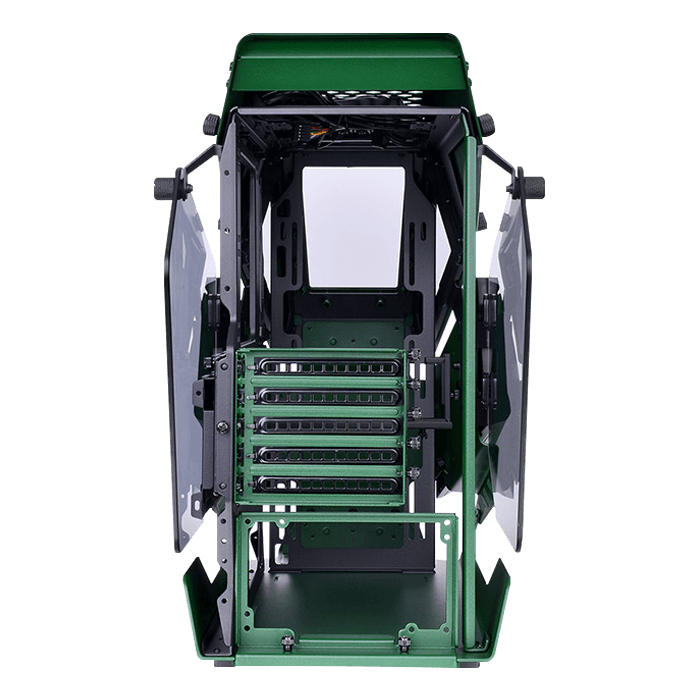

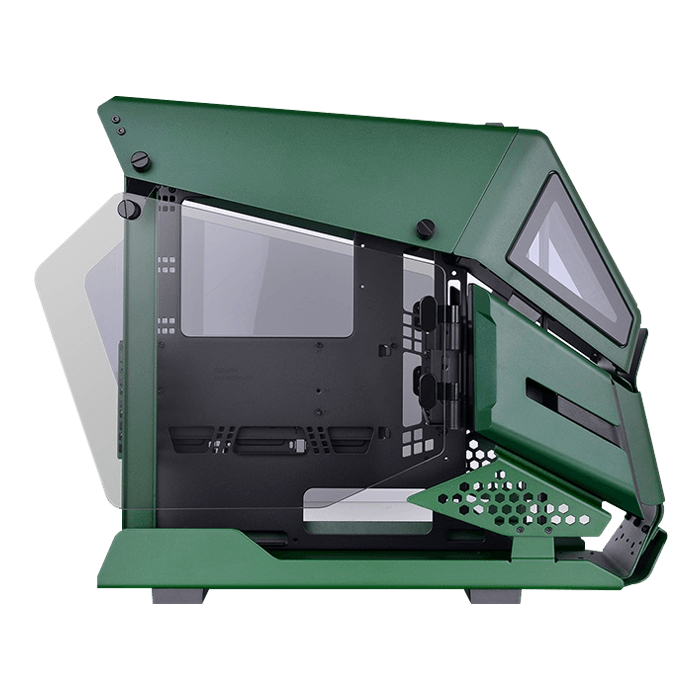

AH T200 Racing Green Micro Chassis
The AH T200 Racing Green is a limited-edition version of the AH T200 Micro Chassis. It is forged with a sturdy, air-force styled architecture with a racing green body, two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows at the front. I/O ports are located at the top-front panel with a futuristic power button. The AH T200 Racing Green is an innovative and truly unique chassis that not only ensures outstanding ventilation but enables users to demonstrate their craftsmanship and showcase their internal components. It can hold up to two 140mm fans at the front and on the top, and a 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Racing Green Micro Chassis is one-of-a-kind and appeals to people who love their PC cases to be stylish and unique at the same time.
P/N | CA-1R4-00SCWN-00 |
---|---|
SERIES | AH Series |
MODEL | AH T200 Racing Green |
CASE TYPE | Micro Case |
DIMENSION (H X W X D) |
444.2 x 282 x 551.5 mm (17.5 x 11.1 x 21.7 inch) |
NET WEIGHT | 10.8 kg / 23.8 lbs. |
SIDE PANEL | Tempered Glass x 2 |
COLOR | Black & Racing Green |
MATERIAL | SPCC |
COOLING SYSTEM | N/A |
DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm) |
EXPANSION SLOTS | 5 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
I/O PORT | USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT |
Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm |
RADIATOR SUPPORT |
Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm |
CLEARANCE |
CPU cooler max height: 150mm VGA max length: 320mm PSU max length: 180mm 3.5” HDD thickness limitation: 22mm |
