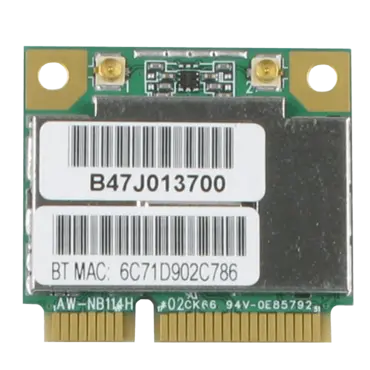

AW-NB114H 802.11b/g/n Wi-Fi and Bluetooth PCIe Module

SKU: 9786468

Manufacturer: AzureWave

MPN: AW-NB114H

Availability: Low Stock


Price: $17.24
or as low as $1/month
Quantity:

The Azurewave AW-NB114H Wi-Fi/Bluetooth PCIe Mini Card half-height module provides a cost-effective, reliable wireless option for systems featuring a PCIe Mini Card slot. It supports two antennas for WLAN (transmit and receive) and Bluetooth (Piconet, and Scatternet) with Wireless Coexistence System. With a wireless connection speed of up to 150 Mbps and 2 Mbps and 3 Mbps Enhanced Data Rate (EDR) compliance, the AW-NB114H is ideal for a wide variety of applications requiring wireless networking or Bluetooth capabilities.

  • Realtek RTL8723AE Controller
  • Wireless-N and Bluetooth 4.0
  • PCIe Mini-Card; Half-Height
Frequency Range Wi-Fi: 2.4 GHz ISM bands 2.412~2.472 GHz. 2.484 GHz
BT: 2402 MHz ~ 2483 MHz
Authentication Protocols Modulation: DSSS, OFDM, BPSK, QPSK, CCK, QAM
Dimensions (WxHxD) 26.65 x 29.85 x 3.1 mm
1.00" x 1.18" x 0.12"
Expansion Type PCIe Mini Card (half-height)
Operating Temperature Range 0°C ~ 70°C
64-bit Yes
Certifications & Ratings CE
FCC
RoHS
Network Standards IEEE 802.11a/b/g/n
