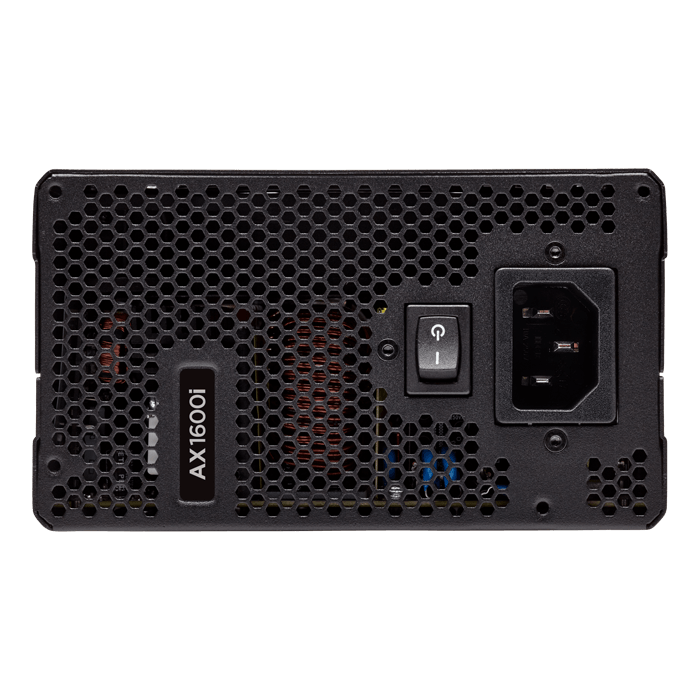

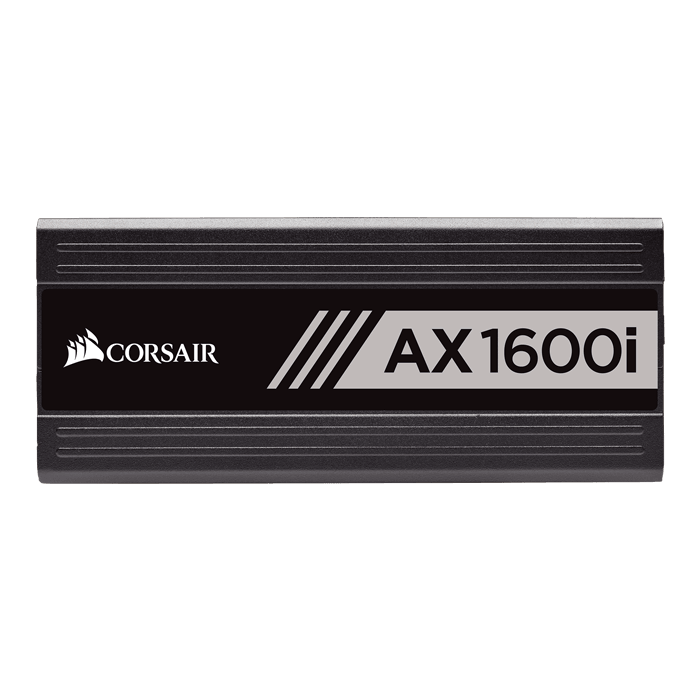

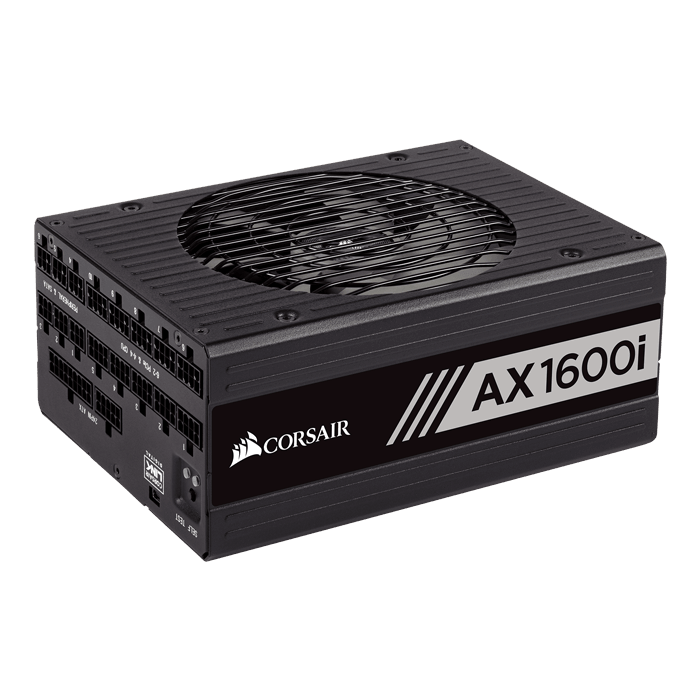

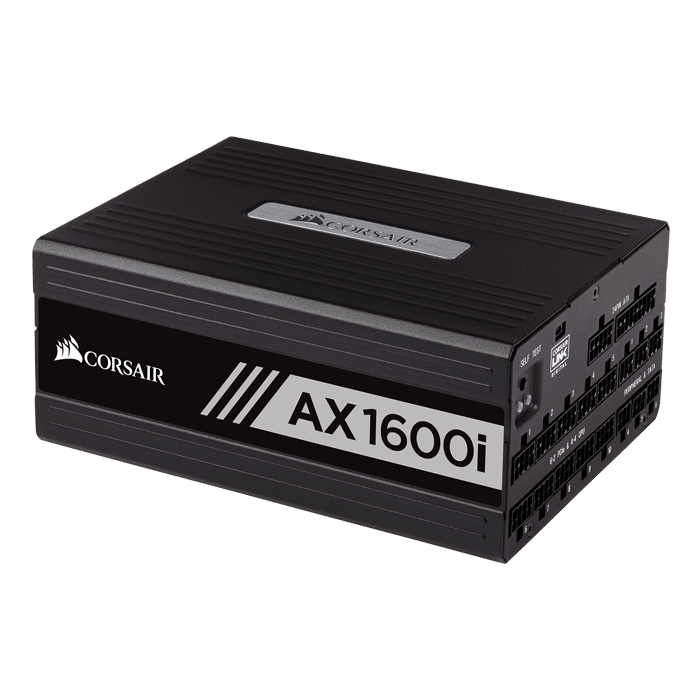

AX1600i Digital, 80 PLUS Titanium 1600W, Fanless Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 11704954
- Manufacturer: CORSAIR
- MPN: CP-9020087-NA
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$644.95
AX1600i Digital, 80 PLUS Titanium 1600W, Fanless Mode, Fully Modular, ATX Power Supply
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
Compatibility
- Conforms to ATX12V v2.4 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards
- Delivers 1600 watts of continuous power on 15A circuits of 115V and higher
Features
- Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power
- 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency
- The only enthusiast PSU to use Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor over traditional silicon parts
- World Class Electrical Performance for incredibly stable voltages and ultra-low ripple noise
- Powerful CORSAIR LINK software monitoring and control allows you to supervise and adjust PSU power settings, and switch from single to multi- rail overcurrent protection (OCP) on-the-fly
- 140mm Patented FDB cooling fan delivers low-noise operation even at demanding loads
- Zero RPM Fan Mode for near-silent operation at low to medium loads
- Three-color customizable magnetic side labels let you choose your PSU’s style to match your build
- Fully modular cables for quick and easy installation
- Ten-Year comprehensive CORSAIR warranty
Package contents
- AX1600i Digital ATX Power Supply
- Modular cable set in roll-up storage bag
- User manual
- AC power cord
- Cable ties
- “Velcro” cable straps
- Mounting screws
- CORSAIR case badge
- CORSAIR LINK USB cable
- Replaceable magnetic side labels
| Warranty | Ten years |
| Weight | 2.65kg |
| MTBF | 100,000 hours |
| 80 Plus | Titanium |
| Power | 1600 Watts |
| Fanless mode | Yes |
| Fan bearing technology | Fluid Dynamic Bearing |
| Fan size (mm) | 140mm |
| C-Link Digital | Yes |
| Continuous output rated temperature (°C) | 50°C |
| Dimensions | 200mm x 150mm x 86mm |
| Modular | Fully |
| Sleeved cables | Low-Profile, All Black |
| ATX Connector | 1 |
| EPS Connector | 2 |
| Floppy Connector | 2 |
| Four Pin Peripheral Connector | 3 |
| PCIe Connector | 8 |
| SATA Connector | 5 |
| Corsair AX1600i ATX Power Supply | ||
| AC Input Rating | ||
| AC Input | 100-240V | |
| Input Current | 15A-9A | |
| Frequency | 50~60Hz | |
| Max Load | Max Output | |
| +5V | 30A | 180W |
| +3.3V | 30A | |
| +12V | 133.3A | 1600W |
| -12V | 0.8A | 9.6W |
| +5Vsb | 3.5A | 17.5W |
| Total Power | 1600W 155V-240V | |
