Adaptec Series 8 RAID Adapters
Data center, IT, and general consumer server environments have a broad range of requirements — from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success.. The Adaptec Series 8 12Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry.
The Adaptec Series 8 RAID adapter family features PMC’s 12Gb/s RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of high- performance RAID adapters for the 12Gb/s storage ecosystem. Adaptec Series 8 RAID adapters are available with 4, 8, or 16 native SAS/SATA ports in an LP/MD2 form factor. The mini SAS HD connectors combined with SAS HD cables allow for greater flexibility in configuration options by supporting up to 16 native SAS/SATA ports in a Low-Profile MD2 form factor.
New Levels of Performance
Series 8 adapters perform at up to 6.6 GB/s on sequential reads and up to 5.2 GB/s on sequential writes on parity RAID 5. With 16 direct-connected solid-state drives (SSDs), Series 8 adapters deliver more than 700K IOPS.
Advanced Data Protection
Adaptec RAID Code (ARC) delivers maximum reliability with RAID levels 0, 1, 1E, 5, 6, 10, 50 and 60. ARC also offers RAID Level Migration (the ability to easily migrate RAID levels), Online Capacity Expansion (expand capacity without powering down the server), and Copyback Hot Spare (when a failed drive has been replaced, data is automatically copied from the hot spare back to the restored drive).
Additionally, the auto configuration capability allows users to operate in HBA mode (expose drives to the host directly) or Simple Volume mode (use fast DRAM cache to reduce latency and improve performance), without the need to use setup tools. In RAID mode, they can mix and match all devices and handle them at the same time.
Zero-Maintenance Cache Protection (ZMCP)
Series 8 adapters can be combined with our third-generation AFM-700 flash-based cache protection module (sold separately) to enable instant battery-free cache protection.
Zero-Maintenance Cache Protection (ZMCP), is a revolutionary advancement that solves BBU deficiencies by providing full protection to cached data with no monitoring, maintenance, disposal, or replacement costs. ZMCP features SLC based NAND flash memory with super capacitor technology. During a system power loss, the flash memory-based cache protection can preserve data for years.
Adaptec maxView Storage Manager
Adaptec maxView Storage Manager provides the powerful features of Adaptec Storage Manager™ in an HTML5 web interface that can be viewed in standard desktop or mobile browsers without the need for separate software installation.

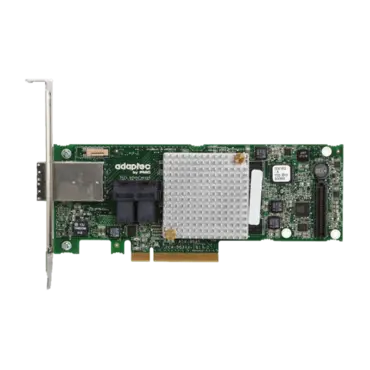

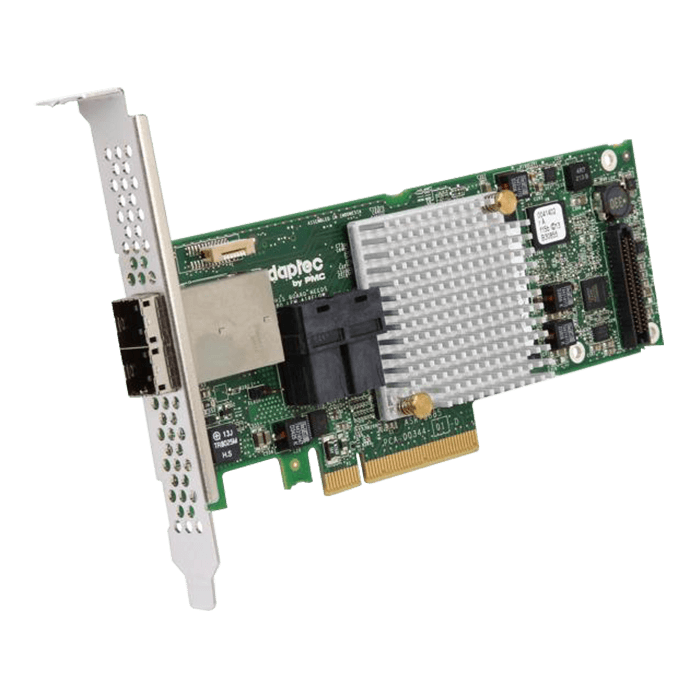

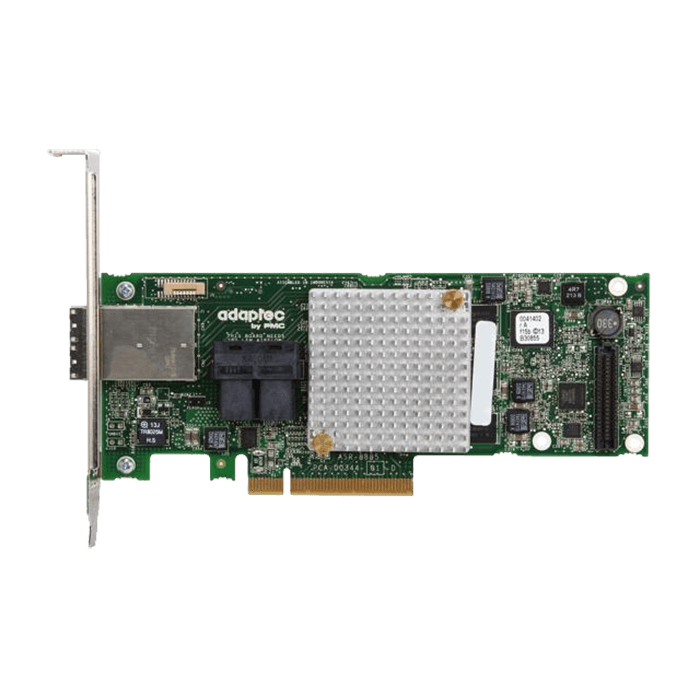

|Model||Adaptec RAID 8885 (2277000-R)|
|Form Factor||MD2 – Low Profile|
|Type||SATA / SAS|
|External Connectors||2 x SFF-8644 mini-SAS HD|
|Internal Connectors||2 x SFF-8643 mini-SAS HD|
|Interface||8-lane PCIe Gen3|
|Transfer Rate||Up to 12 Gb/s|
|RAID||0 1 1E 5 6 10 50 60|
|Operating Systems Supported||Microsoft Windows
Red Hat Linux
|Dimensions||6.6" x 2.535" (L x H)|
|Features||Flexible Configuration: HBA Mode & Auto Volume Mode for automatic deployment
Optimized Disk Utilization (Multiple Arrays per disk)
Supports up to 256 SAS or SATA devices using SAS expanders
Supported RAID levels: 0, 1, 1E, 5, 6, 10, 50, 60
Support for native 4K sector SAS and SATA devices in addition to 512byte sector devices
Hybrid RAID 1 & 10
Online Capacity Expansion
Performance modes: Dynamic, OLTP & Big Block ByPass
Copyback Hot Spare
Dynamic caching algorithm
Native Command Queuing (NCQ)
Hot-plug drive support
RAID Level Migration
Hot spares - global, dedicated, and pooled
Automatic/manual rebuild of hot spares
SES and SAF-TE enclosure management
Configurable stripe size
Multiple arrays per disk drive
Dynamic sector repair
Staggered drive spin-up
Bootable array support
Support for Tape Devices, Autoloaders
MSI-X support for all device driver for all supported Operating Systems
Secure boot support for the uEFI host bios
USB image available, after shipping, on start.adaptec.com to boot maxView GUI from any USB device for enhanced GUI based setup and offline maintenance
|Package Contents||Adaptec RAID 8885 adapter
Additional low profile vented bracket
