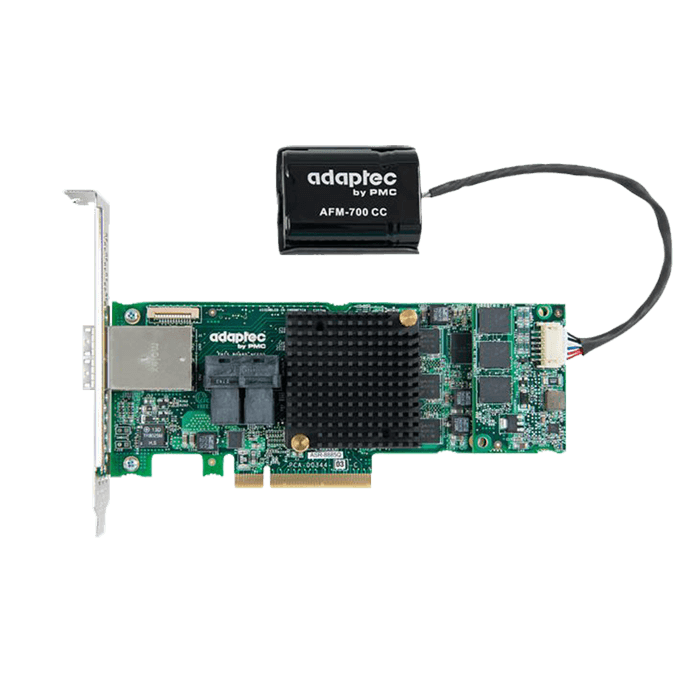

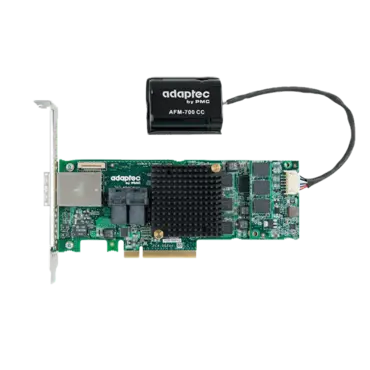

Adaptec RAID 8885Q with maxCache, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Controller with 1GB Cache

Quantity:
  • SKU: 8274115
  • Manufacturer: Microsemi
  • MPN: 2277100-R
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,266.14
Quantity:
Adaptec RAID 8885Q with maxCache, SAS 12Gb/s, 16-Port, PCIe 3.0 x8, Controller with 1GB Cache

Adaptec maxCache Plus– A Caching and Tiering Solution

Adaptec by PMC's maxCache Plus solution introduces a revolutionary new tiering software for direct-attach-storage data management. Our new tiering solution is a secured (non-opened source) filter driver. The architecture establishes a presence in the management layer of the host server and can manage any underlying hardware. The solution supports any/all block-level storage devices and structures it as storage space, with enhanced granularity of fast/faster/fastest media recognition.

The Series 8 "Q" products are equipped with maxCache Plus, supporting both caching and tiering functionality. This technology allows IT managers, system integrators, and ISV's to garner the fastest performance and best overall value from their storage assets. It provides flexibility to configure any & all storage devices in server environments and allows for the fastest media to be used as storage instead of just cache, maximizing the use of the newest 12Gb/s drives.

Brand Microsemi Adaptec
Model 8885Q (2277100-R)
Form Factor Low Profile
Type SATA / SAS
External Connectors 8 x SAS
Internal Connectors 8 x SAS
Interface PCI-Express 3.0 x8
Cache Memory 1GB
RAID RAID 0/1/1E/5/6/10/50/60
Dimensions 6.6" x 2.535" (L x H)
Features Processor: PMC PM8063
Cache Protection:
AFM-700 (included)

Connectors:
2 x SFF-8643
2 x SFF-8644

MC's PM8063 RAID-on-Chip (ROC), x8 PCIe Gen3 interface

with 12Gb/s SAS ports to enable a new generation of performance

16 native SAS/SATA ports in a LP/MD2 design

12Gb/s throughput with mini SAS HD connectors

>700K IOPS; 6.6GB/s sequential reads, 5.2GB/s sequential writes
