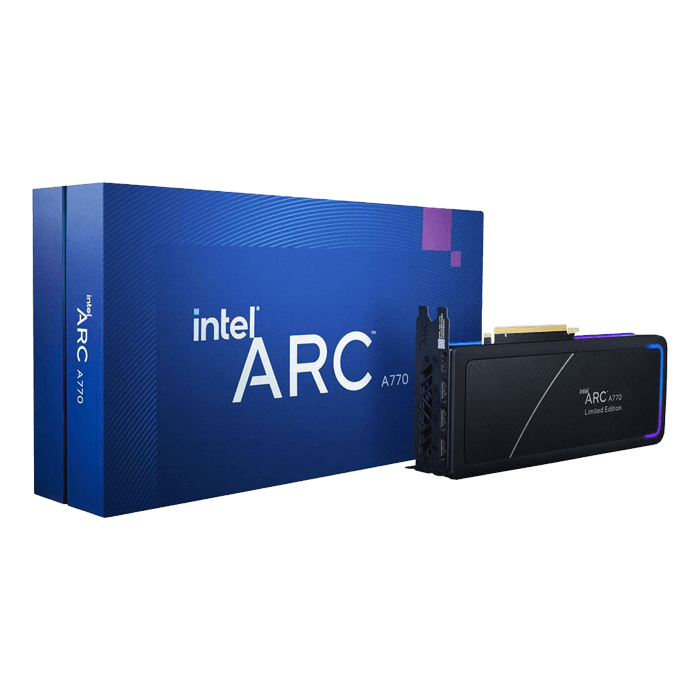

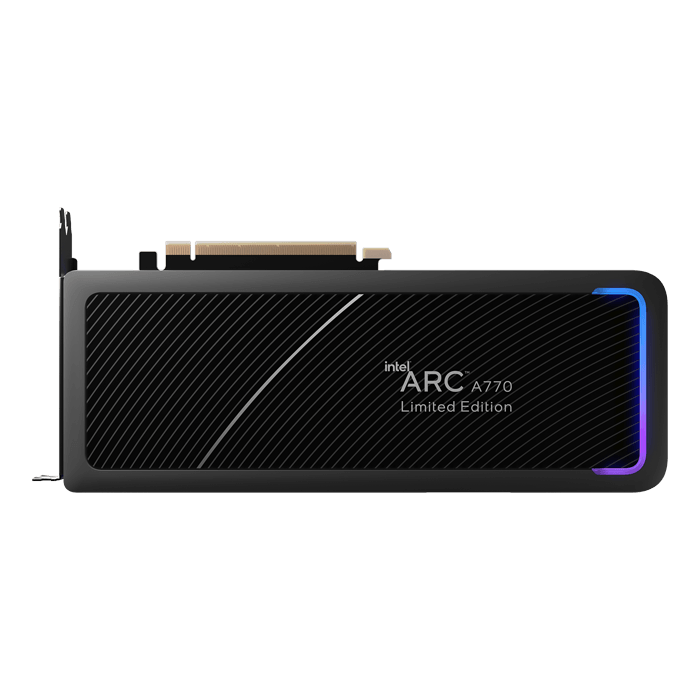

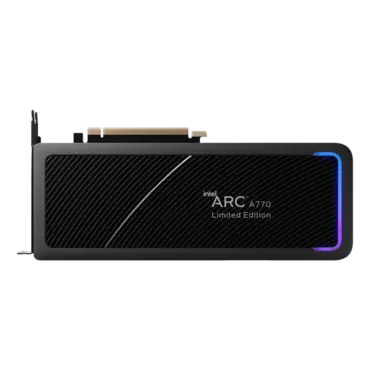

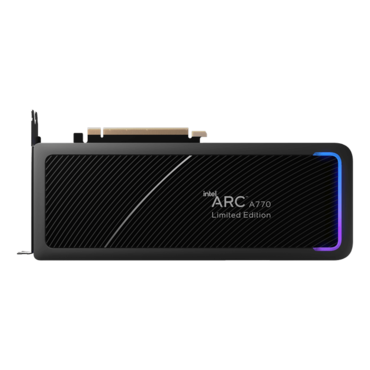

Arc™ A770, 2100 - 2100MHz, 16GB GDDR6, Graphics Card
Quantity:
- SKU: 15177573
- Manufacturer: INTEL
- MPN: 21P01J00BA
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$399.21
| Essentials | |
| Product Collection | Intel® Arc™ A-Series Graphics |
| Code Name | Products formerly Alchemist |
| Model Number | A770 |
| Microarchitecture | Xe HPG |
| Lithography Type | TSMC N6 |
| Vertical Segment | Desktop |
| Status | Announced |
| Launch Date | Q3'22 |
| GPU Specifications | |
| Xe-cores | 32 |
| Render Slices | 8 |
| Ray Tracing Units | 32 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 512 |
| Xe Vector Engines | 512 |
| Graphics Clock | 2100 MHz |
| TBP | 225 W |
| PCI Express Configurations | Up to PCI Express 4.0 x16 |
| Device ID | 0x5690 |
| Memory Specifications | |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Graphics Memory Interface | 256 bit |
| Graphics Memory Bandwidth | 560 GB/s |
| Graphics Memory Speed | 17.5 Gbps |
| Supported Technologies | |
| Ray Tracing | Yes |
| Variable Rate Shading (VRS) | Yes |
| DirectX* Support | DirectX 12 Ultimate |
| Vulkan* Support | 1.3 |
| OpenGL* Support | 4.6 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Adaptive Sync | Yes |
| I/O Specifications | |
| # of Displays Supported | 4 |
| Graphics Output | eDP* 1.4 | DP 2.0 up to UHBR 10** | HDMI* 2.1 | HDMI* 2.0b |
| Max Resolution (HDMI) | 4096 x 2160@60Hz |
| Max Resolution (DP) | 7680 x 4320@60Hz |
| Features | |
| H.264 Hardware Encode/Decode | Yes |
| H.265 (HEVC) Hardware Encode/Decode | Yes |
| AV1 Encode/Decode | Yes |
| VP9 Bitstream & Decoding | Yes |
| Intel® Deep Link Technologies | |
| Intel® Deep Link Hyper Compute | Yes |
| Intel® Deep Link Hyper Encode | Yes |
| Intel® Deep Link Stream Assist | Yes |
