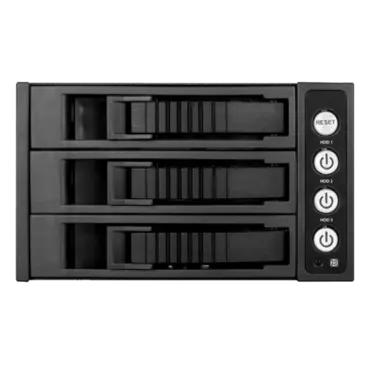

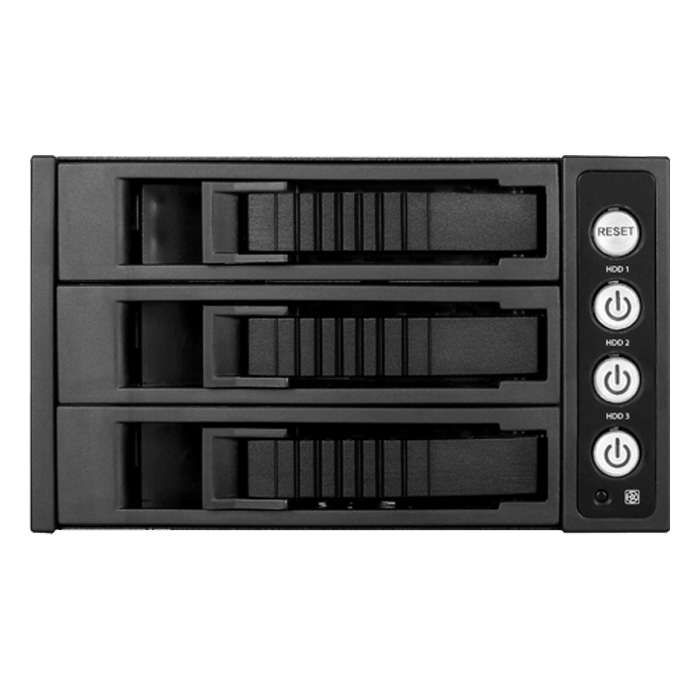

BPU-230HD-BLACK 2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack

Quantity:
  • SKU: 12841824
  • Manufacturer: ISTARUSA
  • MPN: BPU-230HD-BLACK
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$102.35
Quantity:
BPU-230HD-BLACK 2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
Create more space for hard drive with hot-swap capability, BPU-230HD-BLACK supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides light weight but strong stability and extra 70mm fan keep hard drive at maximum performance. High density multi-disk storage backplane that allows multiple 3x3.5" SAS/SATA hard drives to be mounted into 2 standard 5.25". Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD),Security System,SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup

BPU-230HD-BLACK 2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack

  • Stylish aluminum color handle and heat-sink body
  • Support Hot-Swap & RAID Configuration (need an additional RAID controller)
  • Aluminum Design with Conductive Dissipation Grooves
  • Power, fan and high temperature LED indicators
  • High Performance Transfer Rate up to 12Gb/s
  • Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD
  • Equipped with Fan Speed Control Switch
  • 14TB Hard Drives Compatible
Model Number BPU-230HD-BLACK
RoHS Compliance Yes
Standard Drive Bays Hotswap 3.5": 3
5.25" Drives: 2
Hotswap HDD Type: 2.5" & 3.5" SAS I/II/III & SATA I/II/III
Indicators Power, HDD, fan, and high temperature
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel Black
Color of Main Chassis Black
Package Content SATA Cable Included (3pcs)
Cooling Fan 1x70mm
Ordering Information
(Part Number)
Black Tray:BPU-230HD-BLACK
Dimensions (WxHxD) 5.75" x 3.39" x 8.22"
146.0 mm x 86.1 mm x 208.8 mm
