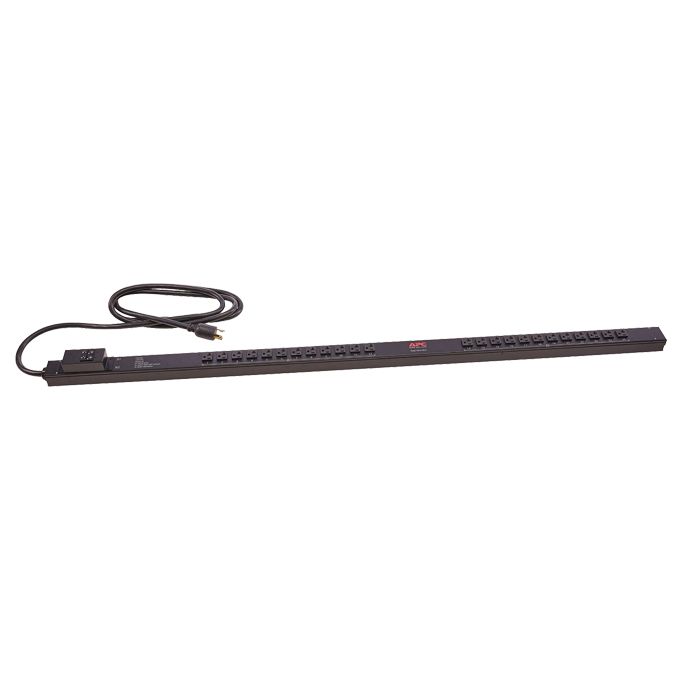

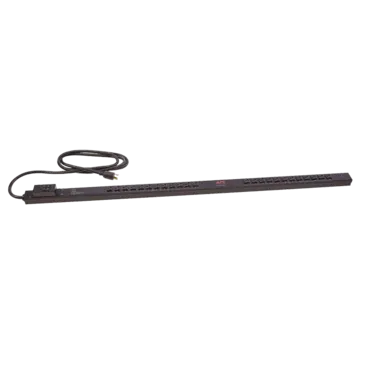

Basic Zero U PDU, Power Strip, 24x / NEMA 5-20R, 120V AC, 50/60Hz, 24A, 2880VA, 10-feet, Black
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount veritcally without tools in the rear channel of a NetShelter VX.Primary InformationPower Device Type : Power distribution strip Voltage Provided : AC 120 V Voltage Required : AC 120 V Power Provided (W) : 2880 VA Power Provided (VA) : 2880 VA Power Device / Form Factor : Rack-mountable Networking Type : Basic Rack PDU Input Connector(s) : 1 x power NEMA L5-30 Output Connector(s) : 24 x power NEMA 5-20 Enclosure Color : Black Width : 2.2 Inch Depth : 1.7 Inch Height : 63.8 Inch Compliant Standards : cUL ListedCSA C22.2 No. 60950-1-03UL 60950-1UL Listed Service & Support Type : 2 years warranty Features : Cables Included: 1 x power cable - 10 feet UNSPSC CodeUNSPSC Code : 39121017
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount veritcally without tools in the rear channel of a NetShelter VX.Primary InformationPower Device Type : Power distribution strip Voltage Provided : AC 120 V Voltage Required : AC 120 V Power Provided (W) : 2880 VA Power Provided (VA) : 2880 VA Power Device / Form Factor : Rack-mountable Networking Type : Basic Rack PDU Input Connector(s) : 1 x power NEMA L5-30 Output Connector(s) : 24 x power NEMA 5-20 Enclosure Color : Black Width : 2.2 Inch Depth : 1.7 Inch Height : 63.8 Inch Compliant Standards : cUL ListedCSA C22.2 No. 60950-1-03UL 60950-1UL Listed Service & Support Type : 2 years warranty Features : Cables Included: 1 x power cable - 10 feet UNSPSC CodeUNSPSC Code : 39121017
- Number of Output Connections:24
- Power Rating:2.55 kVA
- Output Receptacles:24 x NEMA 5-20R
Output | |
Nominal Output Voltage | 120V |
Maximum Total Current Draw per Phase | Phase 24A |
Output Connections | (24) NEMA 5-20R |
Always on Outlets | 24 |
Overload Protection | No |
Input | |
Nominal Input Voltage | 100V, 120V |
Input Frequency | 50/60 Hz |
Regulatory Derated Input Current (North America) | 16A |
Input Connections | NEMA L5-20P |
Cord Length | 10 feet (3.05 meters) |
Number of Power Cords | 1 |
Acceptable Input Voltage | 100-120 VAC |
Maximum Input Current per phase | 30A |
Load Capacity | 2880 VA |
Physical | |
Net Weight | 12.25 lbs. (5.57 kg) |
Maximum Height | 63.75 inches (1619 mm) |
Maximum Width | 2.19 inches (56 mm) |
Maximum Depth | 1.73 inches (44 mm) |
Shipping Weight | 14.25 lbs. (6.84 kg) |
Shipping Height | 84.00 inches (2134 mm) |
Shipping Width | 6.00 inches (152 mm) |
Shipping Depth | 5.00 inches (127 mm) |
Color | Black |
Environmental | |
Operating Environment | 32 - 113 °F (0 - 45 °C |
Operating Relative Humidity | 0 - 95% |
Operating Elevation | 0-10000 feet (0-3000 meters) |
Storage Temperature | -13 - 149 °F (-25 - 65 °C) |
Storage Relative Humidity | 0 - 95% |
Storage Elevation | 0-50000 feet (0-15000 meters) |
Conformance | |
Regulatory Approvals | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed |
Standard Warranty | 2 years repair or replace |
Environmental Compliance | RoHS |
