C621-SU8, Intel C621, LGA 3647, DDR4-2933 1TB 3DS LRDIMM / 8, SATADOM / 2, VGA, USB 3.1, GbLAN / 3, ATX Retail

Quantity:
  • SKU: 13018262
  • Manufacturer: GIGABYTE
  • MPN: C621-SU8
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$458.12
Quantity:
C621-SU8, Intel C621, LGA 3647, DDR4-2933 1TB 3DS LRDIMM / 8, SATADOM / 2, VGA, USB 3.1, GbLAN / 3, ATX Retail

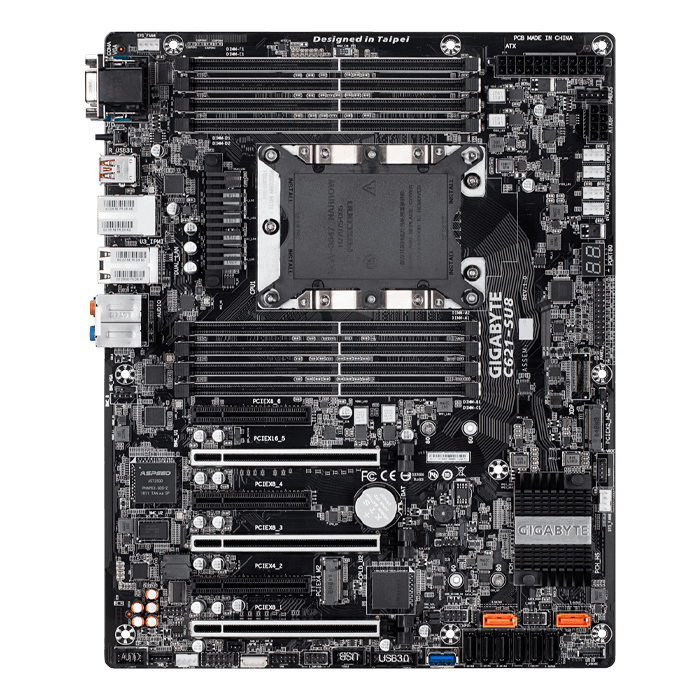

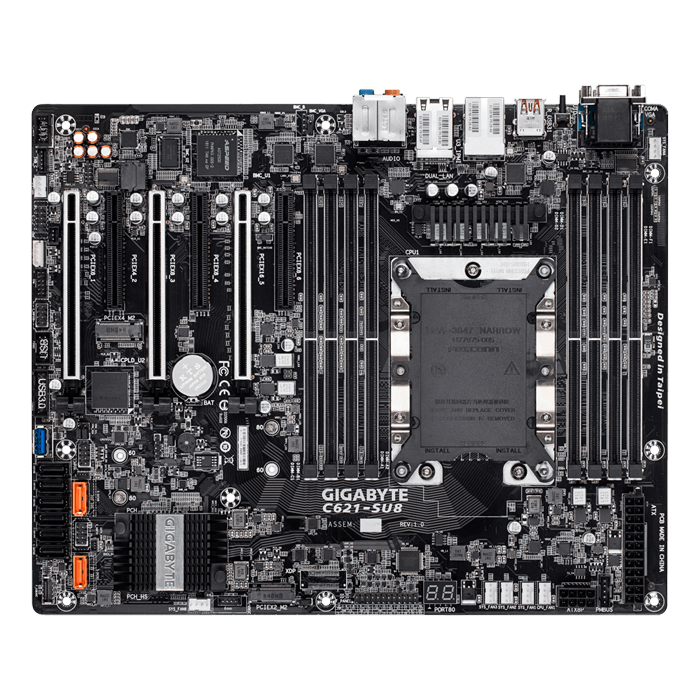

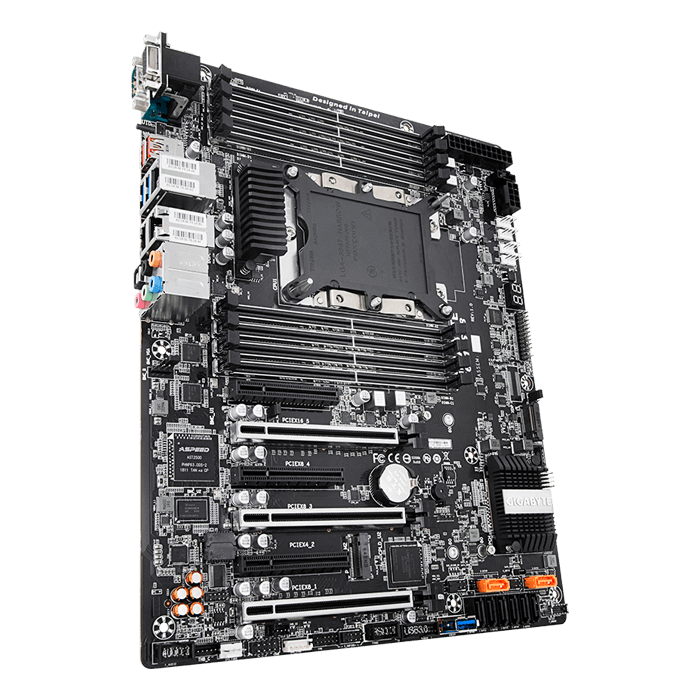

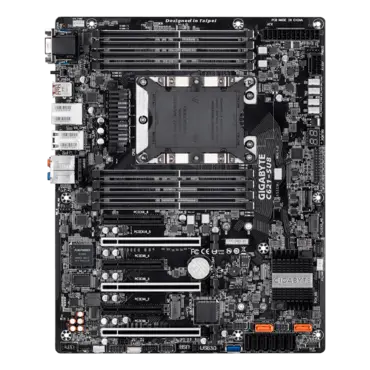

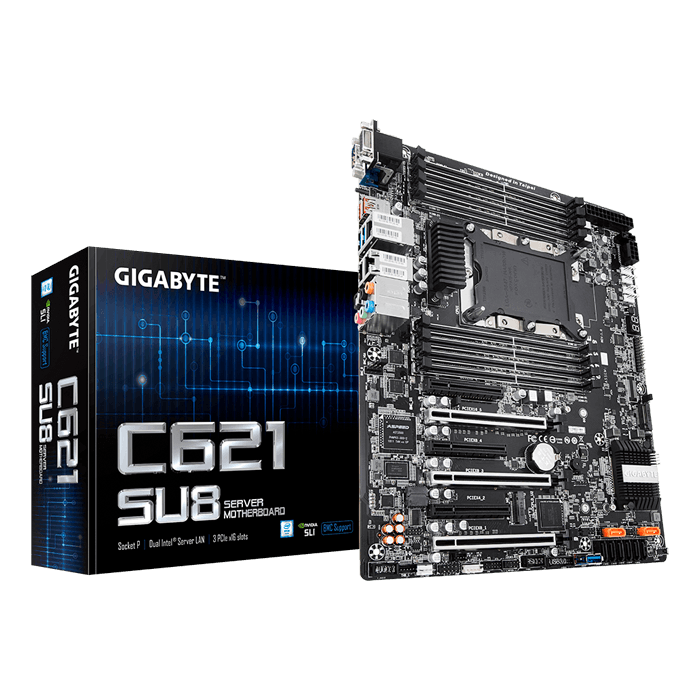

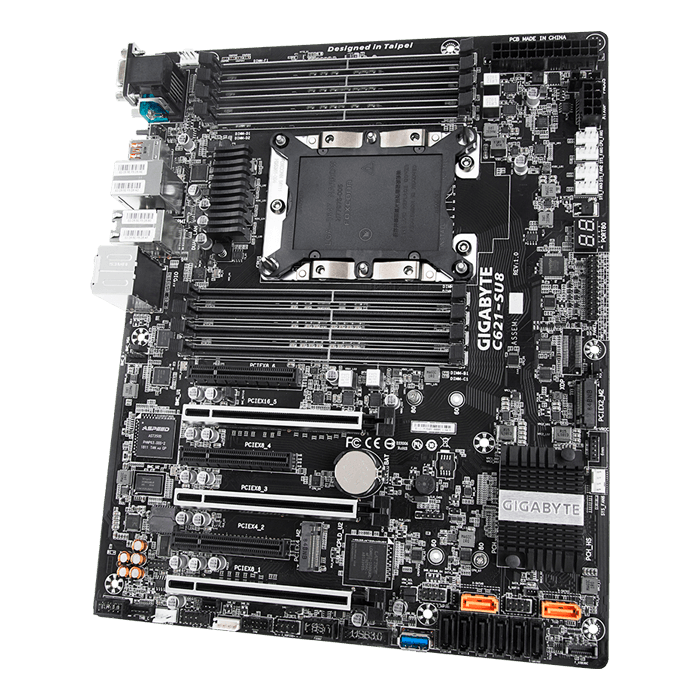

Gigabyte Intel C621 (C621-SU8) motherboard. New Processor Architecture. Intel® Xeon® Scalable processors are designed for the performance demands of complex, data-demanding workloads such as in-memory databases, and real-time business analytics.

  • 1st and 2nd Gen. Intel® Xeon® Scalable Processors, LGA 3647 Socket P (Narrow)
  • 6-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs, up to 1TB
  • Aspeed® AST2500 BMC
  • Dual Intel® Server GbE LAN
  • 3 PCIe x16 slots and 3 PCIe x8 slots for multi cards, supports 3-way NVIDIA® SLI™ or AMD CrossFireX™ GPU configurations
  • Large storage capacity: 8 SATA3 Ports
  • Next-gen transfer speeds: Dual M.2 and USB 3.1 Gen2
  • Realtek ALC 1220 120dB SNR HD Audio
CPU
  • 1st and 2nd Generation Intel® Xeon® Scalable Processors, LGA 3647 Socket P (Narrow) with 2 UPI support of up to 10.4 GT/s, CPU TDP support up to 165W
Chipset
  • Intel® C621 Chipset
Memory
  • 8 x DDR4 DIMM sockets supporting up to 1 TB of system memory
  • 6 channel memory architecture
  • Support for DDR4 2666 MHz memory modules if use a Skylake CPU
  • Support for DDR4 2933 MHz memory modules if use a Cascade lake CPU
  • Support for ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS memory modules
Onboard Graphics ASPEED® AST2500:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Audio
  • Realtek® ALC1220-VB2 codec
    * The back panel line out jack supports DSD audio
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • 1 x Realtek RTL8211E chip (10/100/1000 Mbit) (LAN1)
  • 2 x Intel® 210AT GbE LAN chips (10/100/1000 Mbit) (LAN2, LAN3)
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16_5)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_3)
  • 2 x PCI Express x8 slots, running at x8 (PCIEX8_4, PCIEX8_6)
  • 1 x PCI Express x8 slot, running at x4 (PCIEX4_2)
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) (PCIEX2_M2)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (PCIEX4_M2)
  • 2 x SATA 6Gb/s connectors (S-SATA0~1)
  • 6 x SATA 6Gb/s connectors (I-SATA0~5)
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB Chipset+ ASMedia® USB 3.1 Gen 2 Controller:
  • 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
  • 5 x USB 3.1 Gen 1 ports (2 ports on the back panel, 1 port onboard, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 6 x system fan headers
  • 8 x SATA 6Gb/s connectors
  • 2 x SATA DOM power headers
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  • 1 x USB 3.1 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Thunderbolt™ add-in card connector
  • 1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x chassis intrusion header
  • 1 x Clear CMOS jumper
  • 3 x SATA SGPIO headers
  • 1 x BMC_VGA jumper
  • 1 x BMC_WATCHD jumper
  • 1 x wake on LAN header
  • 1 x IPMB connector
  • 1 x SMB jumper
  • 1 x VRM SMB Clock jumper
  • 1 x VRM SMB Data jumper
  • 1 x Intel® VROC Upgrade Key header
  • 1 x NVMe SMBus (I2C) header
  • 1 x buzzer
  • 1 x NVMe SMBUS Control header

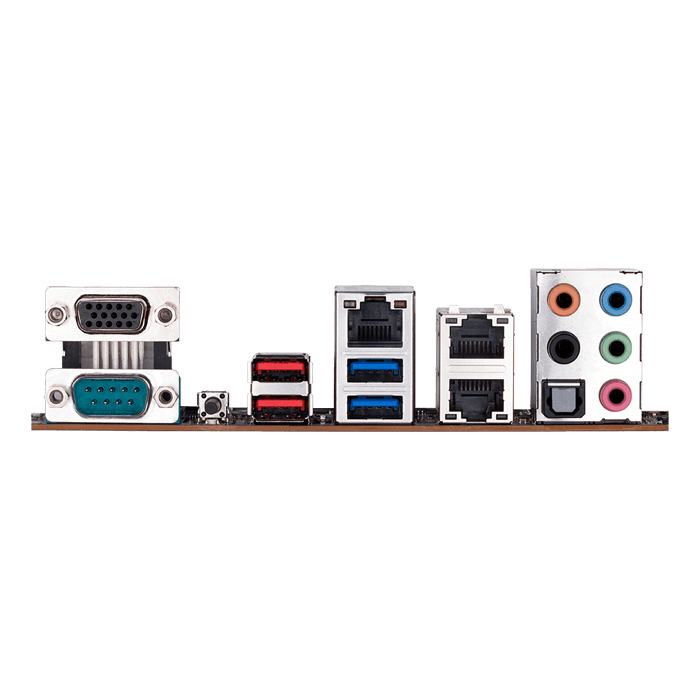

Back Panel Connectors
  • 1 x D-Sub port
  • 1 x serial port
  • 1 x UID button
  • 2 x USB 3.1 Gen 2 Type-A ports (red)
  • 2 x USB 3.1 Gen 1 ports
  • 3 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
I/O Controller
  • ASPEED® AST2500 BMC chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating Properties
  • Operating temperature: 10°C to 40°C
  • Operating humidity: 8 - 80%
  • Non-operating temperature: -40°C to 70°C
  • Non-operating humidity: 5% - 95%
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
