C650, 80 PLUS Bronze 650W, Semi Modular, ATX Power Supply
Quantity:
- SKU: 14709385
- Manufacturer: NZXT
- MPN: PA-6B1BB-US
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$92.62

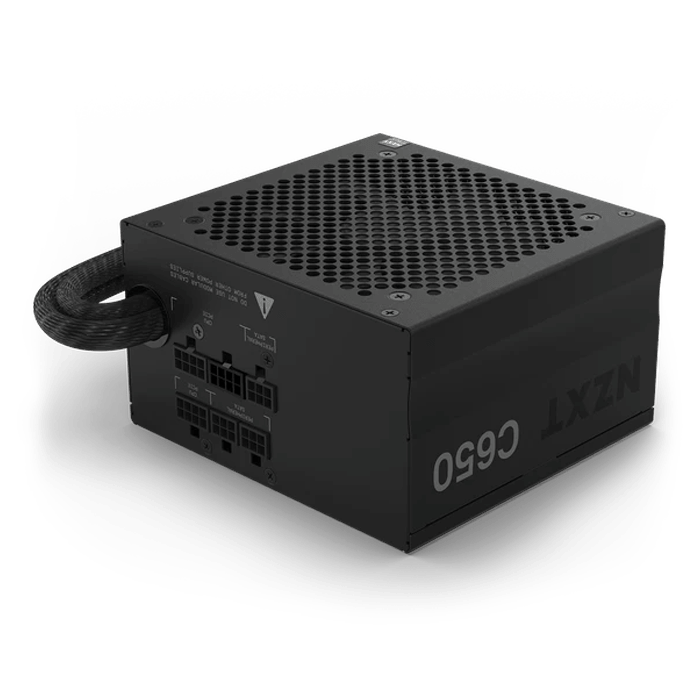

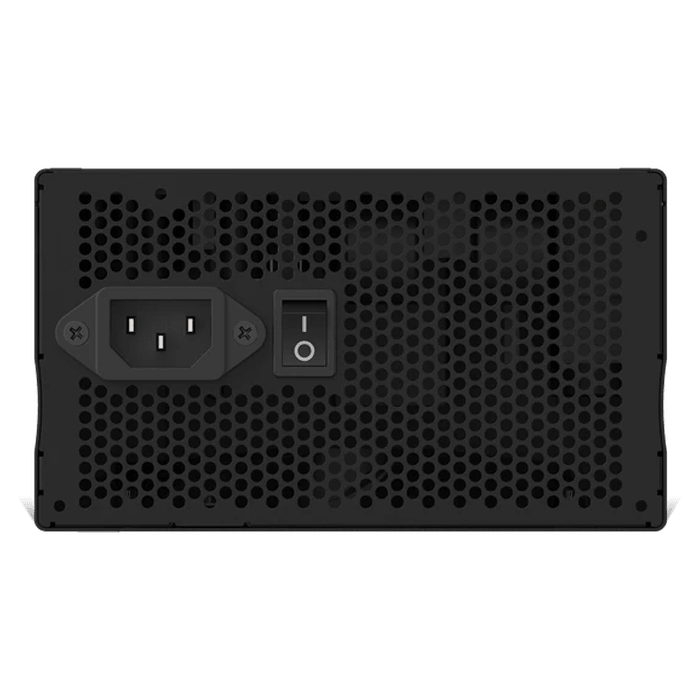

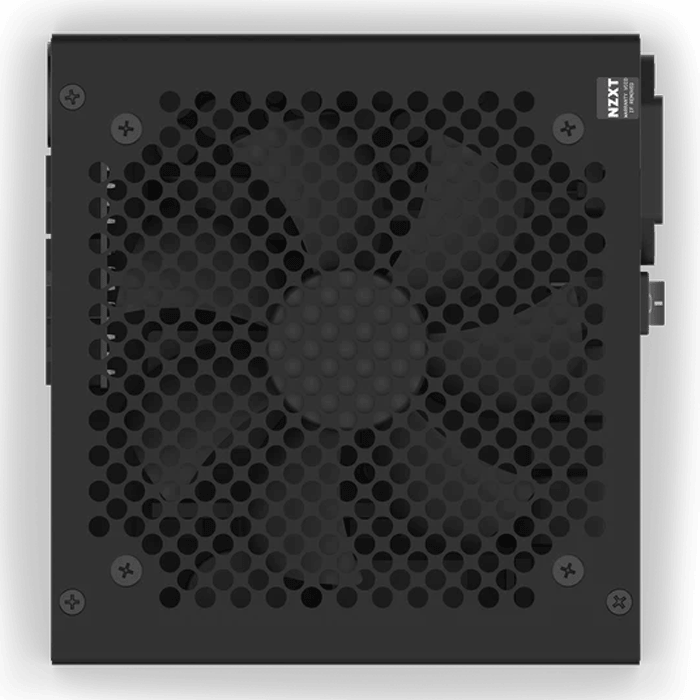

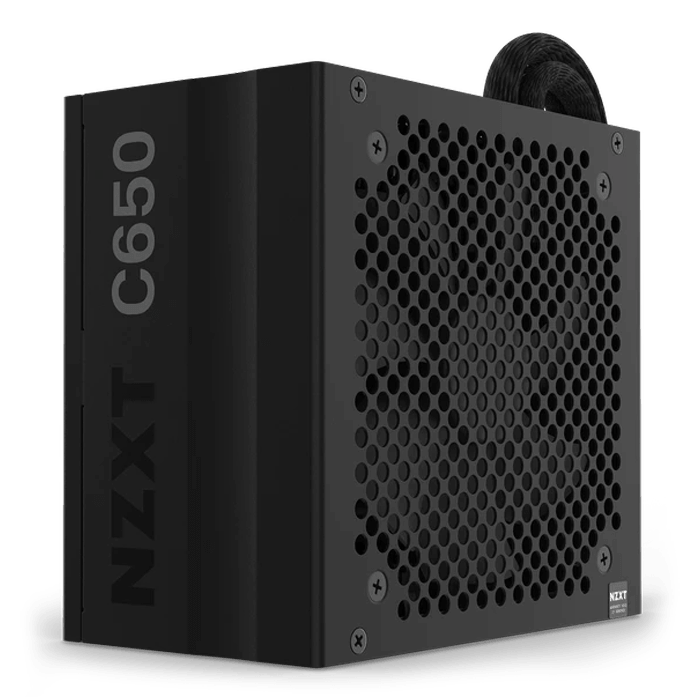

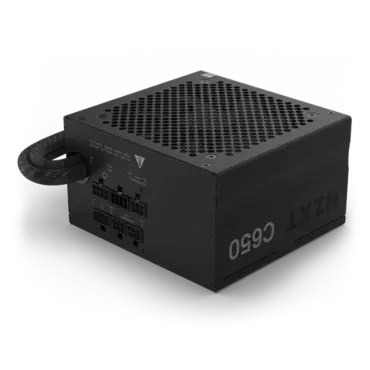

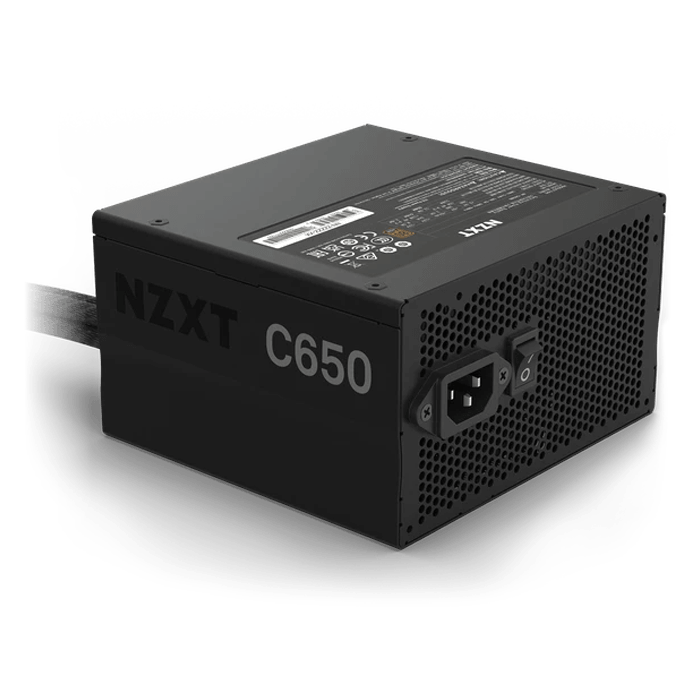

C650, 80 PLUS Bronze 650W, Semi Modular, ATX Power Supply
The C650 brings you 650 watts of efficient power and is a must-have for the majority of power needs.
| Key Specs | |
| Dimensions | W 150 x L 140 x H 86 (mm) |
| Material(s) | Steel, PCB and plastic |
| Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
| AC Input Rating | 10A/115V;5A/230V 47Hz ~ 63Hz |
| DC Output Rating | |
| Voltage | +3.3V / +5V / +5VSB /+12V / -12V |
| Max Load | 20A / 20A / 2.5A / 54A / 0.3A |
| Voltage Regulation | ±5% / ±5% / ±5% / ±5% / ±10% |
| Ripple & Noise | < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p |
| Output Power (watt) | 110 / 110 / 12.5 / 648 / 3.6 |
| Total | 650 |
| Fan Specs | |
| Dimensions | 120 x 120 x 25 (mm) |
| Speed | 2400 ±10% RPM |
| Airflow | 72.90 CFM |
| Noise | <44 dBA |
| Bearing | FDB (Fluid Dynamic Bearing) |
| Energy Efficiency | |
| Rating | 80 Plus Bronze |
| 10% loading | 82% |
| 20% loading | 83% |
| 50% loading | 87% |
| 100% loading | 83% |
| Operation | |
| PF Correction | Active@0.96 |
| MTBF | 100,000 hours |
| Operation Temperature | 0 to 40°C |

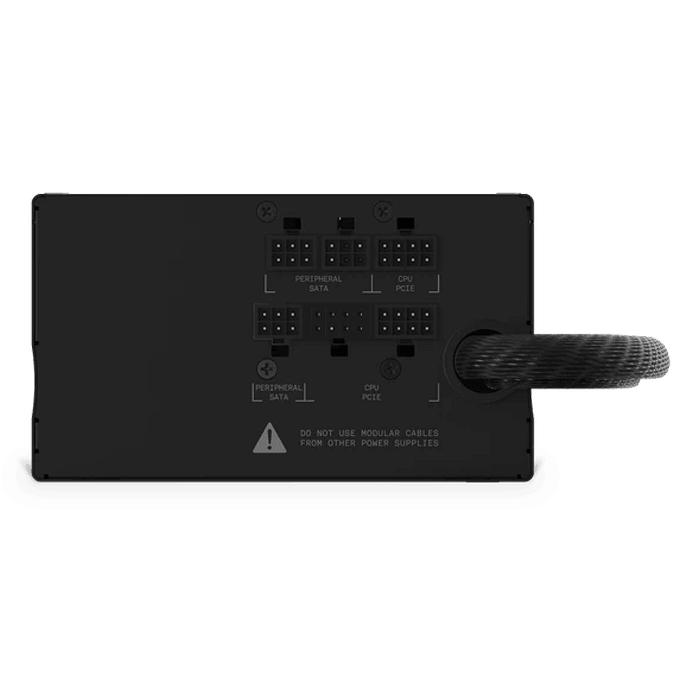

| Output Connector(s) | |
| 24-pin ATX Power | 1 |
| 4+4-pin CPU power | 2 |
| 6+2-pin PCIe power | 4 |
| SATA Power | 6 |
| Peripherals | 3 |
| General | |
| Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / |
| Warranty | 5 years |
| Hazardous Materials | RoHS & China RoHS |
| Key Specs | |
| Dimensions | W 150mm x L 140mm x H 86mm |
| Material(s) | Steel, PCB and plastic |
| Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
| AC Input Rating | 100V-240V 8A-4A 50Hz-60Hz |
| DC Output Rating | |
| Voltage | +3.3V / +5V / +5VSB /+12V / -12V |
| Max Load | 20A / 20A / 2.5A / 45.5A / 0.3A |
| Voltage Regulation | ±5% / ±5% / ±5% / ±5% / ±10% |
| Ripple & Noise | < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p |
| Output Power (watt) | 110 / 110 / 12.5 / 546 / 3.6 |
| Total | 550 |
| Fan Specs | |
| Dimensions | 120 x 120 x 25 (mm) |
| Speed | 2400 ±10% RPM |
| Airflow | 72.90 CFM |
| Noise | <44 dBA |
| Bearing | FDB (Fluid Dynamic Bearing) |
| Energy Efficiency | |
| Rating | 80 Plus Bronze |
| 10% loading | 82% |
| 20% loading | 83% |
| 50% loading | 87% |
| 100% loading | 83% |
| Operation | |
| PF Correction | Active@0.96 |
| MTBF | 100,000 hours |
| Operation Temperature | 0 to 40°C |
| Output Connector(s) | |
| 24-pin ATX Power | 1 |
| 4+4-pin CPU power | 2 |
| 6+2-pin PCIe power | 4 |
| SATA Power | 6 |
| Peripherals | 3 |
| General | |
| Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / |
| Warranty | 5 years |
| Hazardous Materials | RoHS & China RoHS |
| Model Number | PA-5B1BB-US |
| UPC | 815671017727 |
| EAN | 5060301698035 |
