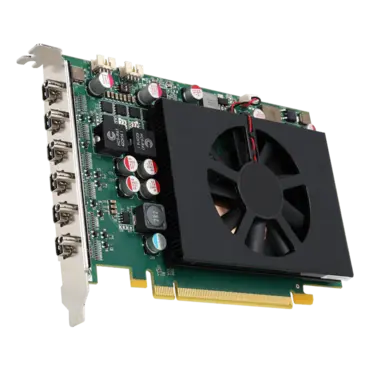

C680, 4GB GDDR5, 6x Mini DisplayPort, Graphics Card

Quantity:
  • SKU: 11244587
  • Manufacturer: MATROX
  • MPN: C680-E4GBF
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$732.53
Quantity:
Model
Brand Matrox
Series C680
Model C680-E4GBF
Interface
Interface PCI Express 3.0 x16
Chipset
Chipset Manufacturer AMD
Memory
Memory Size 4GB
Memory Type GDDR5
3D API
DirectX DirectX 12
OpenGL OpenGL 4.4
Ports
DisplayPort 6 x Mini DisplayPort 1.2 (secure)
Details
Digital Resolution 4096 x 2160
Max Displays Per Board 6
Cooler With Fan
Dual-Link DVI Supported Yes
HDCP Ready Yes
Operating Systems Supported Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows Embedded Standard 7 32-bit
Windows Embedded Standard 7 64-bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 64-bit
Linux
System Requirements Single available PCIe x16 lane
2GB of system memory
Internet access for software installation
Compatible operating system
Features
Features Drive up to six displays or projectors

Supports a maximum resolution of 4096 x 2160 per output

Experience smooth video playback and graphics performance with 4GB of memory

Minimize power consumption with an energy efficient board design

Expand your desktop space with multi-board support to drive up to 12 displays from a single computer

Framelock two Matrox C680 cards together and synchronize the refresh rate across all monitors to reduce tearing

Simplify cabling by daisy-chaining DisplayPort 1.2 MST-capable displays

Customize your setup with the easy-to-use Matrox PowerDesk multi-display configuration and desktop management software

Configure displays independently from one another or select stretched desktop mode to create as a single ultra-large desktop across multiple displays

Clone content to show the same information on all displays

Select any combination of portrait or landscape and set the orientation that works best for you

Simplify A/V installations with advanced EDID Management

Prevent loose cabling with secure Mini DisplayPort connectors

Adjust the number of overlapping pixels with Edge Overlap to create a seamless, unified image on up to six edge blending projectors

Facilitate enterprise-wide deployments by installing Matrox PowerDesk & drivers across many systems without any user interaction

Pair C680 with Matrox Mura IPX Series for 4K capture and IP encode & decode

Manage video wall layouts, sources and more with the MuraControl for Windows software (sold separately) or the MuraControl for iPad app

Supports Microsoft DirectX 12, OpenGL 4.4, and OpenCL 1.2 to run the latest professional applications

Protect your investment with Matrox long product life-cycles

Supports Mura Control for Windows and Mura Control for iPad
Form Factor & Dimensions
Form Factor Full Height / Half Length
Dimensions (L x H) 6.60" x 4.05"
Packaging
Package Contents Matrox C680 graphics card
Quick start-up guide
Display drivers and Matrox PowerDesk desktop management software available for download from Matrox website
Form Factor & Dimensions
Slot Width Single-slot
