Highly Versatile Layout
The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. Each part of the frame enables a high level of versatility. From multi-functional brackets to options in component positioning, the COSMOS C700M encourages freedom in building and out-of-the-box customizability.
Graphics Card Mounting with Riser Cable
The graphics card bracket can be mounted vertically or horizontally on either the PSU midplate or on the M. Port. The bracket can also be rotated from 0 to 90 degrees. Also included is a 400mm riser cable for the convenience of being able to connect a vertically mounted graphics card to the motherboard.
*the M. Port is Cooler Master’s modular mounting system that expands mounting options for hardware and brackets.
Addressable RGB Lighting
Two parallel strips of addressable RGB lighting run continuously from the top panel to the front panel, with ambient ARGB lighting on the bottom that reflects against the aluminum bars.
Extensive Cable Cover System
The 3 included covers can be placed on either the M. Port or on the mid-plate, with the ability to mount SSD storage or a reservoir.
Aluminum Panels & Handles
Brushed aluminum spans the top panel and front panel, with cast aluminum handles (and feet) that provide protection & support for carrying the case.
Versatile Liquid Cooling Support
A flat radiator bracket design offers more versatility for liquid cooling with the ability to be mounted on the top, front, or bottom of the frame. The two included brackets can each support a 420mm radiator, with the ability to mount fans and a radiator on either side of the bracket.
The advanced I/O panel comes with a 4-Pole headset jack (audio+mic), dedicated mic jack, USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, PWM fan speed button, and an addressable RGB control button.

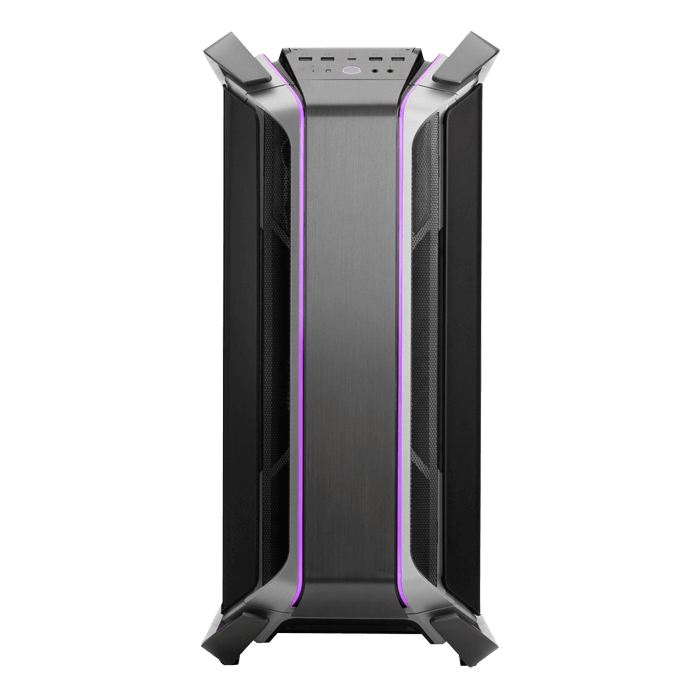

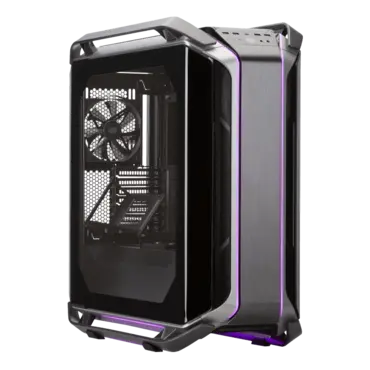

|Product Name||COSMOS C700M|
|Available Color||Grey, Silver & Black|
|Materials - Body||Steel|
|Materials - Side Panel||Curved Tempered Glass, Steel|
|Dimensions||650(L) x 306(W) x 651(H)mm / 25.6(L) x 12.0(W) x 25.6(H)inch|
|Motherboard Support||Mini-ITX, Micro-ATX, ATX, E-ATX (Support up to 12" x 10.7")|
|Drive Bays - 5.25"||1|
|Drive Bays - Combo 3.5"/2.5"||4+1 (in the accessory box)|
|Drive Bays - SSD||4|
|I/O Port - USB Ports||USB 3.1 Type-C x 1, USB 3.0 Type-A x 4|
|I/O Port - Audio||3.5mm Headset Jack (Audio+Mic) x 1, 3.5mm Mic Jack x 1|
|I/O Port - Fans/Lighting||Fan Speed Control Button, ARGB Control Button|
|Pre-installed Fan(s) - Front||140mm PWM Fan x 3 (Speed: 1200RPM / Connector: 4Pin)|
|Pre-installed Fan(s) - Rear||140mm PWM Fan x 1 (Speed: 1200RPM / Connector: 4Pin)|
|Fan Support - Top||120/140mm fan x 3|
|Fan Support - Front||120/140mm fan x 3|
|Fan Support - Rear||120/140mm fan x 1|
|Fan Support - Bottom||120/140mm fan x 2 (bracket needed)|
|Radiator Support - Top||120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm)|
|Radiator Support - Front||120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD)|
|Radiator Support - Rear||120mm, 140mm|
|Radiator Support - Bottom||120mm, 140mm, 240mm|
|Clearances - CPU Cooler||198mm|
|Clearances - Graphics Card||490mm (without 3.5" HDD BRK), 320mm (with 3.5" HDD BRK)|
