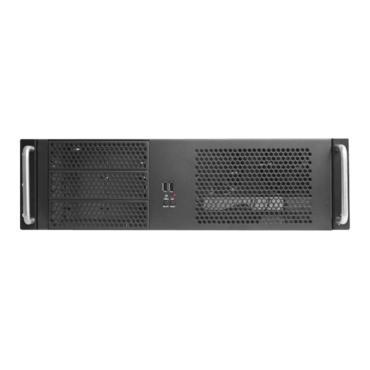

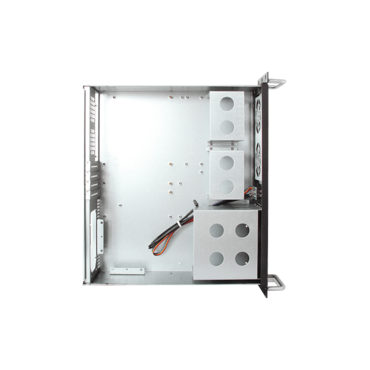

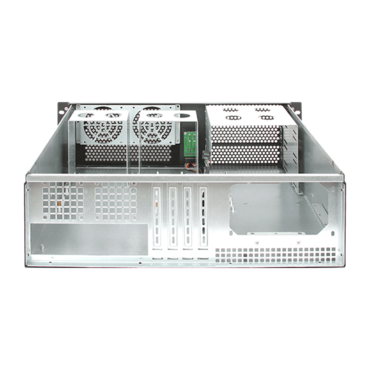

D-314-MATX, 3x 5.25", 4x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis
- SKU: 7417296
- Manufacturer: ISTARUSA
- MPN: D-314-MATX
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$177.10
D-314-MATX, 3x 5.25", 4x 3.5" Drive Bays, No PSU, ATX, Black, 3U Chassis

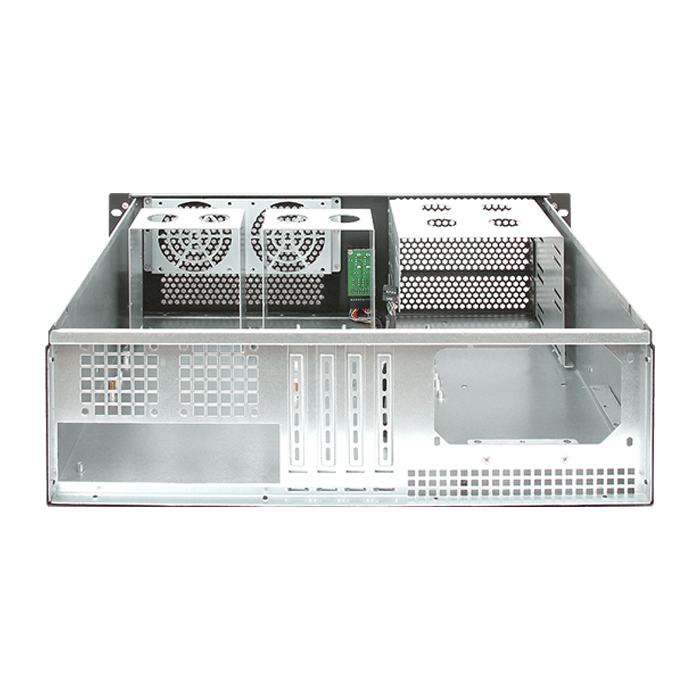

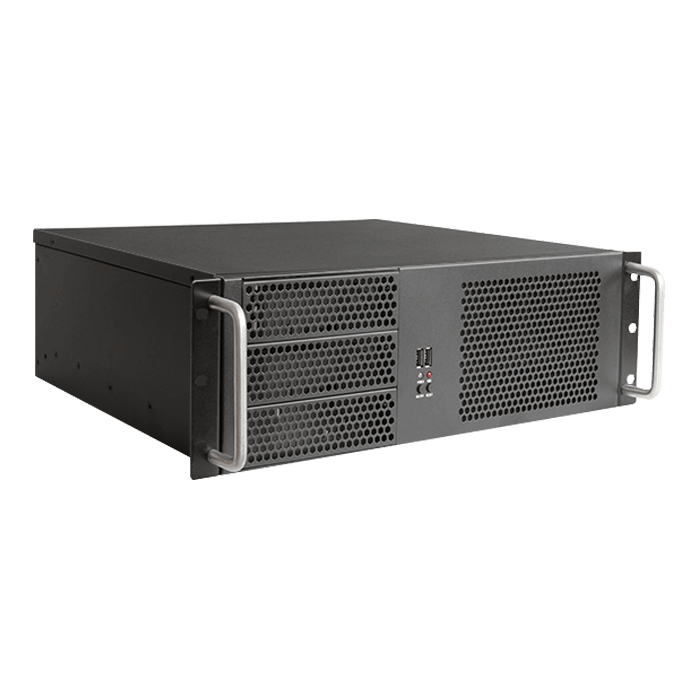

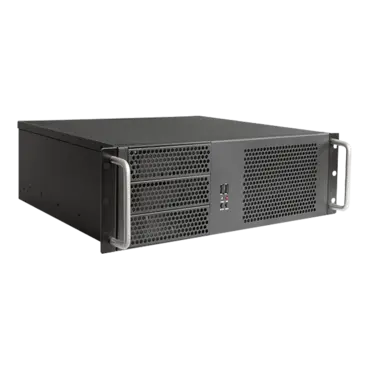

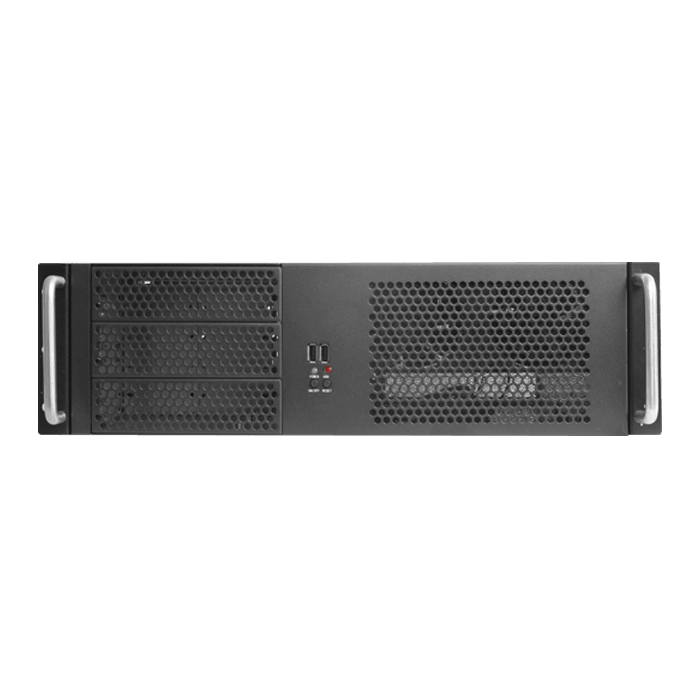

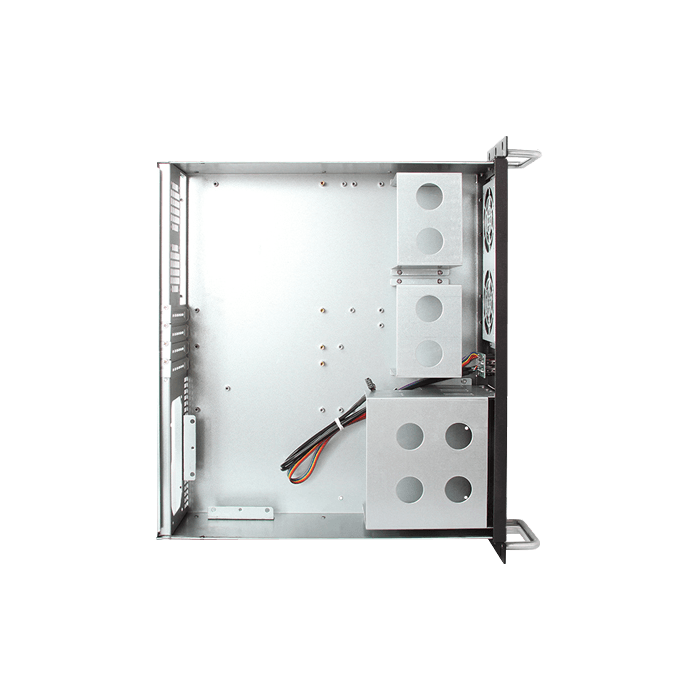

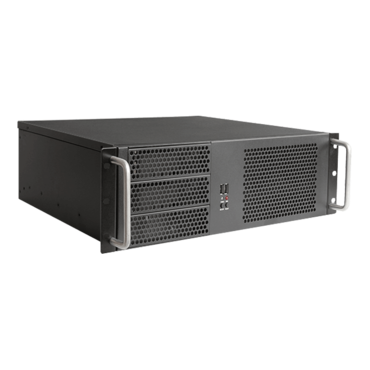

D-314-MATX is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.
- Supports Front Access USB2.0 x2
- Power and HDD LED
- Power and Reset Switch
- Support ATX PS2 Power Supply
- Support 4 x Full Height Add-on Cards
| Model Number | D-314-MATX |
| RoHS Compliance Version | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drive (internal): 4
5.25" Drives: 2+1 |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | PS2 |
| Expansion Slots | 4 (full height & up to 165mm deep with hdds installed) |
| Material of Front Bezel | SGCC 1.2mm |
| Material of Handle | Steel |
| Material of Main Chassis | SGCC 1.2mm |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
| Optional Fan: | 80mm x2, 60mm x2 |
| Dimensions (WxHxD) | 19.00" x 5.24" x 16.89"
482.6 mm x 133.1 mm x 429.0 mm |
| Notes | - when ATX MB is in place, the available 5.25" drive bays will reduce to 2 because MB occupies the spacing of the bottom 5.25" bay. |
