D Storm D-200SEA-BK-75S2UPD8, Black Bezel, 2x 5.25", 2x 3.5" Drive Bays, 750W Rdt PSU, ATX, Black, 2U Chassis

  • SKU: 13192846
  • Manufacturer: ISTARUSA
  • MPN: D-200SEA-BK-75S2UPD8
Starting At
D Storm D-200SEA-BK-75S2UPD8, Black Bezel, 2x 5.25", 2x 3.5" Drive Bays, 750W Rdt PSU, ATX, Black, 2U Chassis

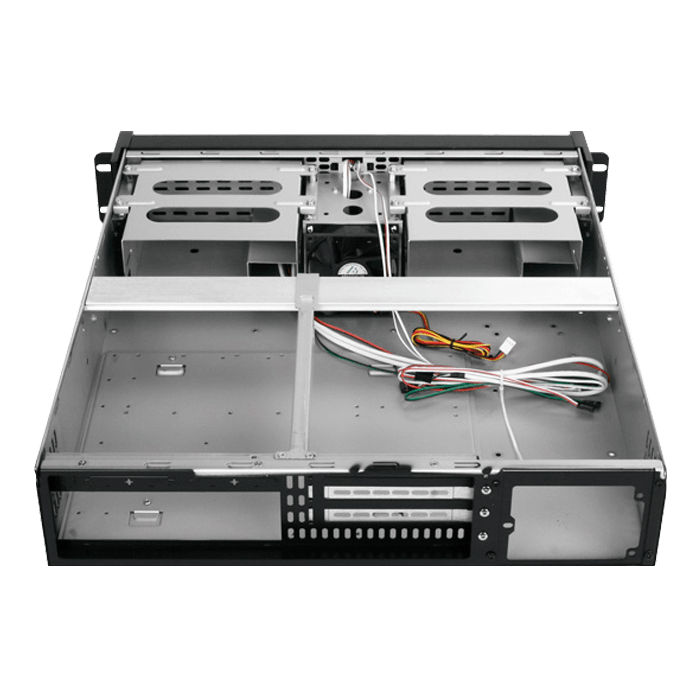

The 2U compact industrial rackmount chassis D Storm D-200SEA-BK-75S2UPD8 . The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-BK-75S2UPD8 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, and also the 750W redundant power supply ensures total up time of mission critical server applications.

D-200SEA-BK-75S2UPD8 2U Compact Stylish Rackmount Chassis with BLACK SEA Bezel and 750W Redundant Power Supply

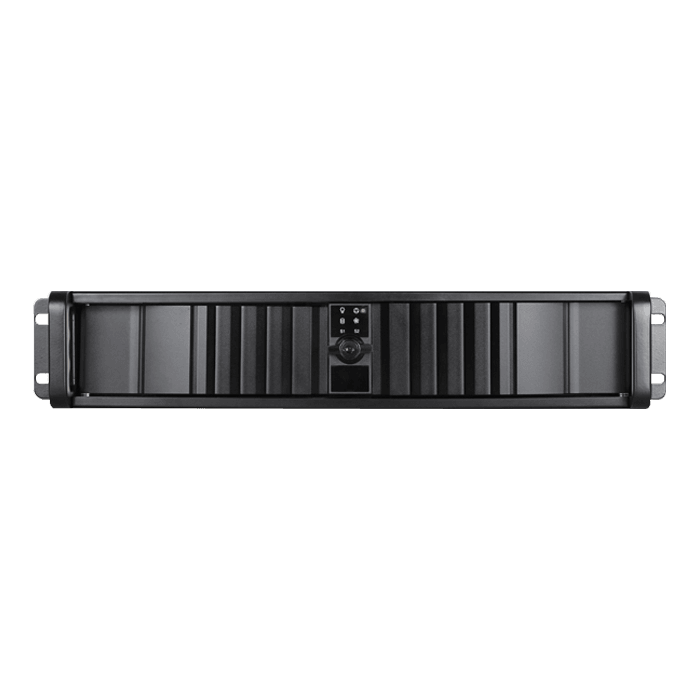

  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 80mm x1 cooling fan
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis

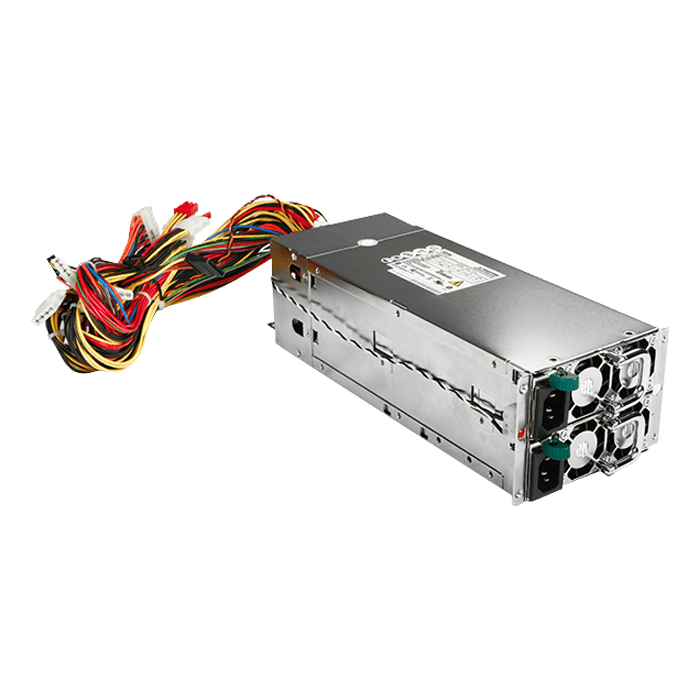

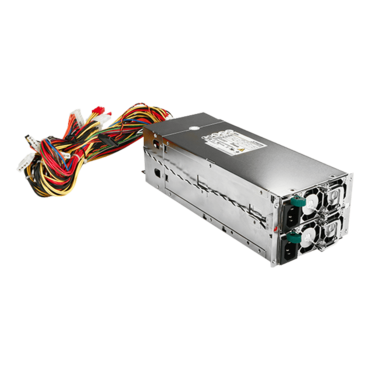

  • 750W redundant power supply
Model Number D-200SEA-BK-75S2UPD8
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 3.5" Drives: 2
5.25" Drives: 2
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power, Reset
Supported PSU Type 2U

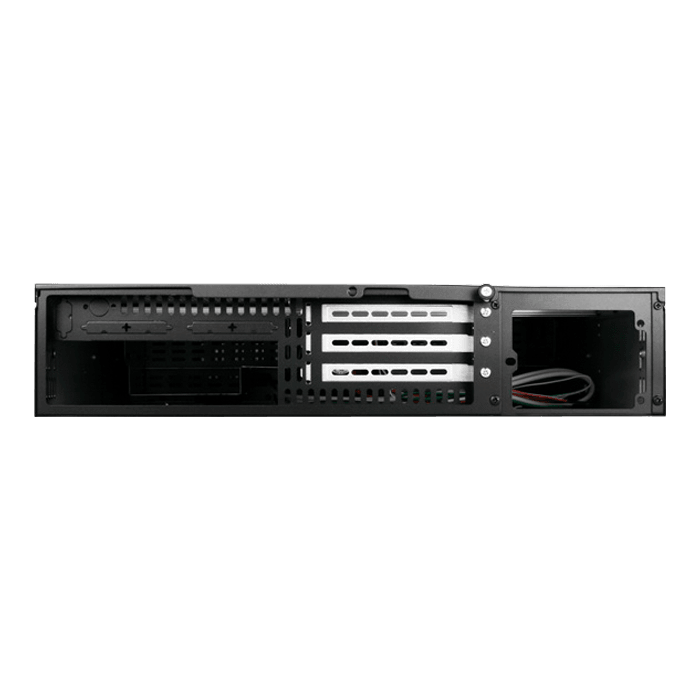

Expansion Slots 3
Security Front Bezel Key Lock
Material of Front Bezel Aluminum alloy
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Blue
Color of Main Chassis Black
Front Connector 2x USB 2.0
Motherboard Size 12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan 1x80mm
Optional Fan: 60mm x3 (bracket DD-FANGUARD-6 required)
Dimensions (WxHxD) 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm
Notes - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR.
