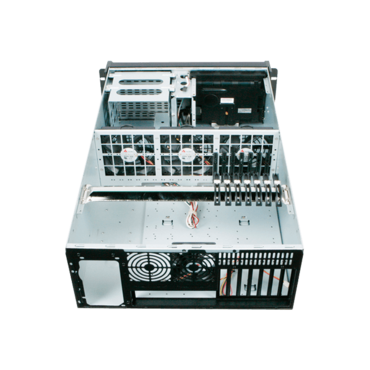

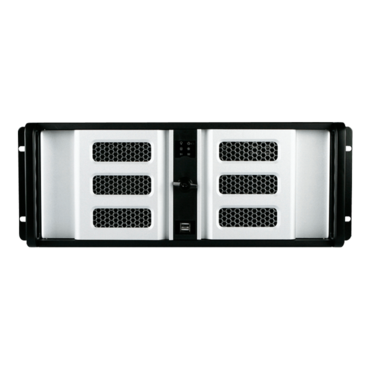

D Storm D-407LSE-SL-TS859, Silver Bezel, w/ 8" Touch Screen LCD, 3x 5.25", 1x 3.5" Drive Bays, No PSU, E-ATX, Black/Silver, 4U Chassis
Introducing the new D-407LSE-TS859 from our well-praised D-Storm rackmount chassis. Built-in 8" touch screen LCD enables instant system control and configuration. Three 5.25" and one 3.5" drive bay space, and ultra-quiet power supply option most suitable for DVR, telecom, and audio recording applications. Ask for our OEM/ODM project special!
D-407LSE-SL-TS859 4U High Performance Rackmount Chassis with 8" Touch Screen LCD

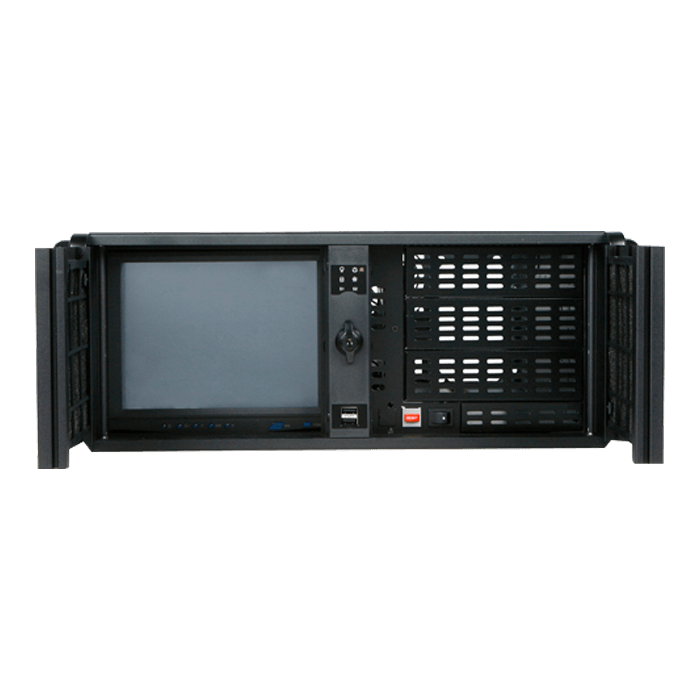

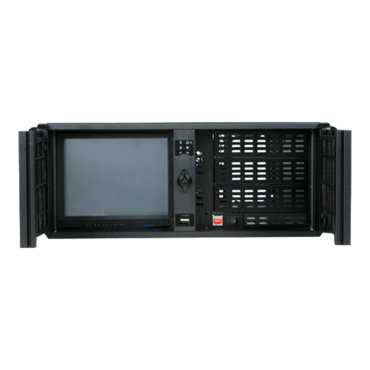

- Built-in 8" Touch Screen LCD
- Front Access USB2.0 x2

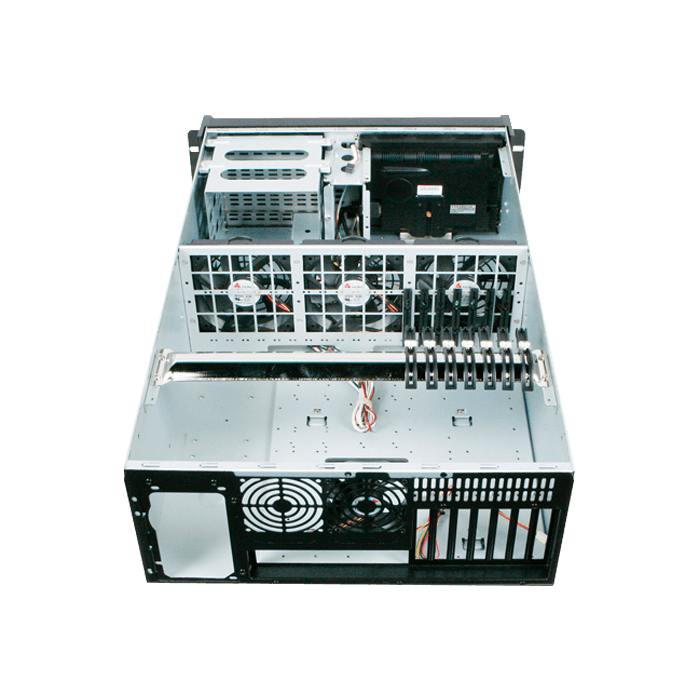

- 120mm x3, 80mm x1 Cooling Fan
- Removable Air Filter

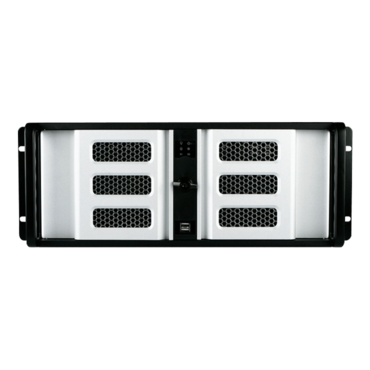

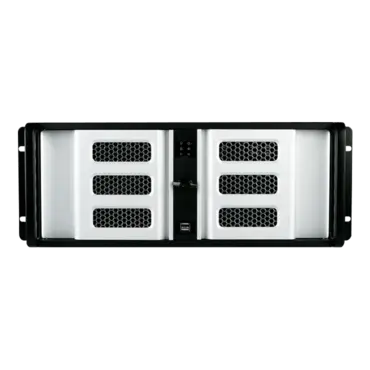

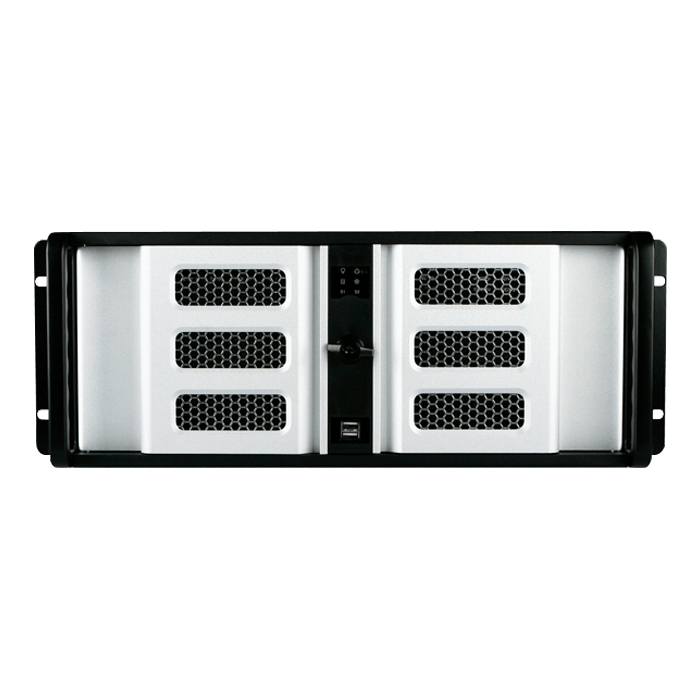

- Aluminum Color Front Door
- Monitor: 800x600 resolution with remote control
Model Number | D-407LSE-SL-TS859 |
RoHS Compliance | Yes |
Form factor | 4 U |
Standard Drive Bays | 3.5" Drives: 1
5.25" Drives: 3 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08) |
Switches | Power, Reset, Mute (Mute for sensor board TC-ISF08 |

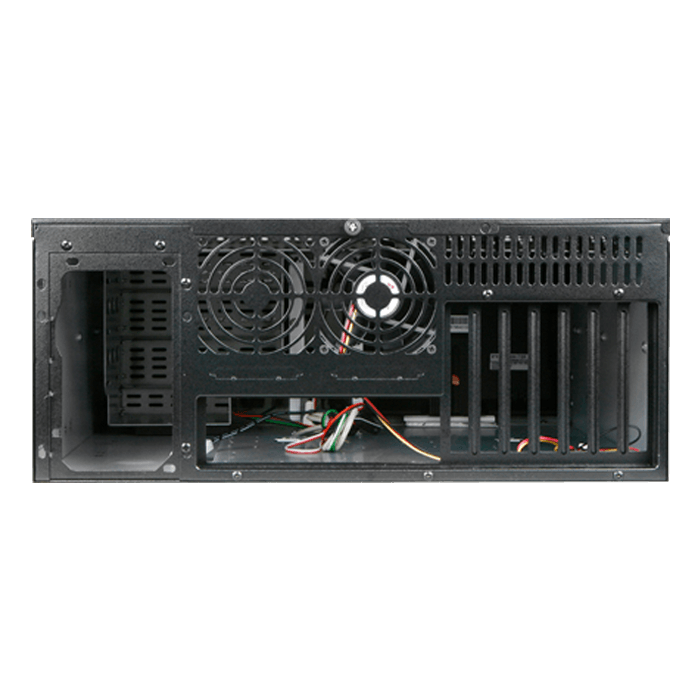

Expansion Slots | 7 |
Security | Front Bezel |
Material of Front Bezel | Aluminum |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | Zinc-Coated Steel SECC 1.2mm (Japan Made) |
Color of Front Bezel | Silver |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Air Filter | Removable & Washable |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 1x80mm, 3x120mm |
Optional Fan: | 1x80mm |
Ordering Information
(Part Number) |
Silver Bezel:D-407LSE-SL-TS859 |
Dimensions (WxHxD) | 19.00" x 7.00" x 27.90"
482.6 mm x 177.8 mm x 708.7 mm |
