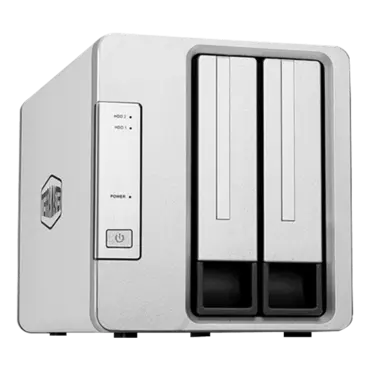

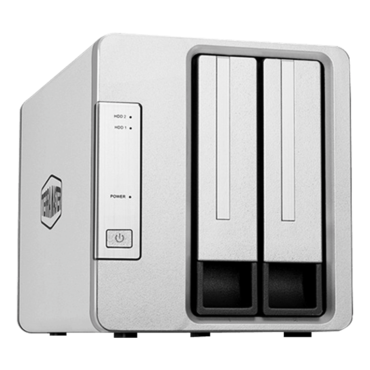

D2-310 USB3.1 RAID 0/1/JBOD/SINGLE Storage, Transfer Speed up to 410MB/s, 2-bay RAID Storage for Home/SOHO DAS

Quantity:
  • SKU: 15101967
  • Manufacturer: TerraMaster
  • MPN: D2-310
  • Availability: CONTACT US
Starting At
$159.99
D2-310 USB3.1 RAID 0/1/JBOD/SINGLE Storage, Transfer Speed up to 410MB/s, 2-bay RAID Storage for Home/SOHO DAS

Make copies of data fly!

Actual copy speed up to 410MB/S. 1GB video copy only takes 2-3 seconds!

Storage
Disk Slot Number 2
Compatible Disk Types 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
File System FAT 32, FAT 16, NTFS, and EXT4
Maximum Internal Raw Capacity 40TB (20 TB drive x 2) (Capacity will vary along with the RAID type)
RAIDs Supported SINGLE DISK,JBOD,RAID 0,RAID 1
Hardware RAID
RAID Manager Software /
RAID Manager Software Language /
RAID Online Expansion /
RAID Migration /
RAID Auto-rebuilding RAID 1
Drive Hot Swap /
HDD Sleep
HDD S.M.A.R.T. Inspection /
Sector Inspection and Parity Check /
SSC Cache /
Daisy Chain /
HDD NCQ Technology /
Alert Notice /
Event Log /
External Ports
USB USB3.1 Type-C gen1 x 1
Thunderbolt /
DP Interface /
Power Socket DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.) Read:410MB/s (2 SSHD RAID0 mode)
Writing Speed (max.) Write:400MB/s (2 SSHD RAID0 mode)
Appearance
Size (H*W*D) 227 x 119 x 133 mm
Packaging Size (H*W*D) 258 x 220 x 170 mm
Weight Net Weight: 1.3Kg Gross Weight: 2.1Kg
Others
System fan 80 mm x 80 mm x25mm (x 1)
Fan mode Smart
Noise Level 18.6dB(A)
Power Supply
Power Supply  40W
AC Input Voltage 100V - 240V AC
Current Frequency 50/60 Hz, single frequency
Power Consumption 25.6W
Environment Temperature
Working Temperature 5°C ~ 40°C (40°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS?Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS, WEEE
Package Contents: Host unit (x1)
Power cord (x1)
USB Cable A to Type-C(10Gb) (x1)
Quick Installation Guide (x1)
Power adapter (x1)
Screws (several)
Limited Warranty Note x 1
