D4-300 USB 3.1 Storage SINGLE DISK(NO RAID), USB 3.1 Hard Drive/SSD Enclosure, 4-bay Single Storage for Home/SOHO
Up to 80TB storage capacity
The D4-300 adopts USB3.1 (5Gbps) Type-C interface, compatible with 3.5” SATA hard drive/2.5” SSD, can support up to 4 hard drives, support total storage capacity up to 80TB (20TB x 4).
Driverless, plug and play
There is no need to install any driver. The unit supports MAC, Windows, Linux cross-platform operating systems. It is fully compatible with the USB protocol, and can be used with any computer, TV, server, set-top box and other devices.
| Storage | |
| Disk Slot Number | 4 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | FAT 32, FAT 16, NTFS, and EXT4 |
| Maximum Internal Raw Capacity | 80TB (20 TB drive x 4) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK |
| Hardware RAID | / |
| RAID Manager Software | / |
| RAID Manager Software Language | / |
| RAID Online Expansion | / |
| RAID Migration | / |
| RAID Auto-rebuilding | / |
| Drive Hot Swap | √ |
| HDD Sleep | √ |
| HDD S.M.A.R.T. Inspection | / |
| Sector Inspection and Parity Check | / |
| SSC Cache | / |
| Daisy Chain | / |
| HDD NCQ Technology | / |
| Alert Notice | / |
| Event Log | / |
| External Ports | |
| USB | USB3.1 Type-C gen1 x 1 |
| Thunderbolt | / |
| DP Interface | / |
| Network Interface | / |
| USB HOST Interface | / |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read:420MB/s ( SSD ) |
| Writing Speed (max.) | Write:390MB/s ( SSD ) |
| Appearance | |
| Size (H*W*D) | 227 x 225 x 136 mm |
| Packaging Size (H*W*D) | 300 x 275 x 186 mm |
| Weight | net weight: 2.1 Kg Gross Weight: 3.5Kg |
| Others | |

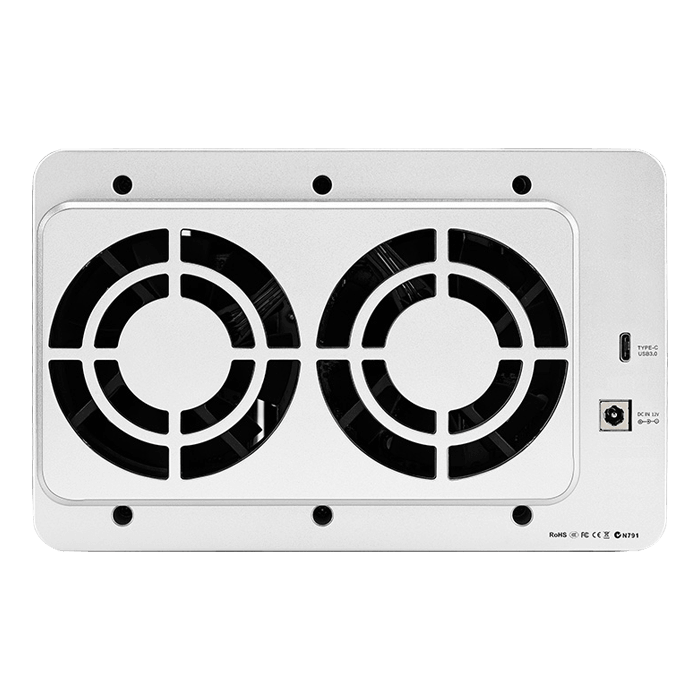

| System fan | 80 mm x 80 mm x25mm (x 2) |
| Fan mode | Smart |
| Noise Level | 19.8dB(A) |
| Power Supply | |
| Power Supply | 72 W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 45.6W(Access) |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS?Mac OS |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| USB Cable A to Type-C(10Gb) (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 | |
