D5-300 USB 3.0 Direct Attached Storage Support RAID5 Optimal RAID Mode, 5-bay, RAID Storage for Home/SOHO

  • SKU: 15103519
  • Manufacturer: TerraMaster
  • MPN: D5-300
  • Availability: CONTACT US
Starting At

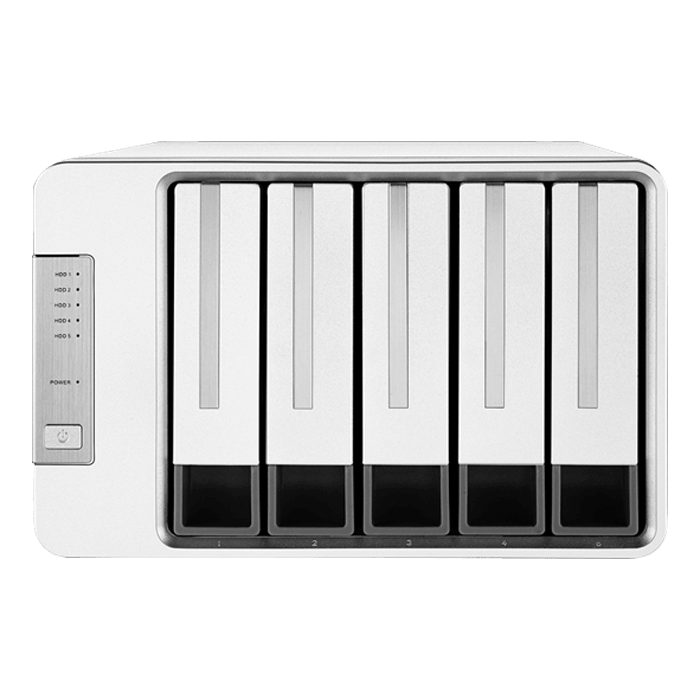

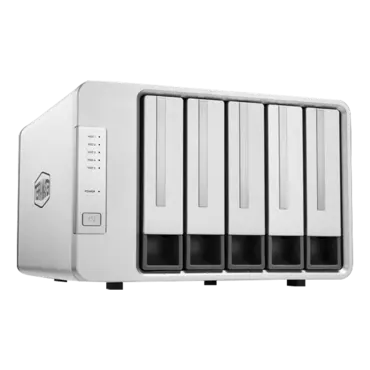

D5-300 USB 3.0 Direct Attached Storage Support RAID5 Optimal RAID Mode, 5-bay, RAID Storage for Home/SOHO

Ideal for Photo and Video Storage

With its USB 3.1 high-speed interface, the easily operable D5-300 offers a storage capacity of over 90TB and supports multiple RAID modes. It is suitable for professionals who want to store photos, videos, or technical documents.

The Latest in USB Type-C Interface

The D5-300 adopts the latest USB Type-C interface, which is smaller in size, more reliable in connection, and more convenient to use than the previous generation.

Disk Slot Number 5
Compatible Disk Types 3.5" SATA HDD
File System FAT 32, FAT 16, NTFS, and EXT4
Maximum Internal Raw Capacity 100TB (20 TB drive x 5) (Capacity will vary along with the RAID type)
RAIDs Supported Support RAID 0?RAID 1?RAID 5?RAID 10?CLONE?JBOD?Single Disk
Hardware RAID
RAID Manager Software
RAID Manager Software Language English, Chineses, Japanese, German, French, Spanish, Italian
RAID Online Expansion /
RAID Migration /
RAID Auto-rebuilding /
Drive Hot Swap /
HDD Sleep
HDD S.M.A.R.T. Inspection /
Sector Inspection and Parity Check /
SSC Cache /
Daisy Chain /
HDD NCQ Technology /
Alert Notice /
Event Log /
External Ports
USB USB3.1 Type-C gen1 x 1
Thunderbolt /
DP Interface /
Power Socket DC IN 12V
Reading/writing Speed (max.)
Reading Speed (max.) Read:210MB/s (2 SSHD RAID0 mode)
Writing Speed (max.) Write:190MB/s (2 SSHD RAID0 mode)
Size (H*W*D) 227 x 225 x 136 mm
Packaging Size (H*W*D) 300 x 275 x 186 mm
Weight Net Weight: 2.1Kg Gross Weight: 3.5Kg
System fan 80 mm x 80 mm x25mm (x 2)
Fan mode Smart
Noise Level 19.8dB(A)
Power Supply
Power Supply  90W
AC Input Voltage 100V to 240V AC
Current Frequency 50/60 HZ, Single Phase
Power Consumption 45.6W(Access)
Environment Temperature
Working Temperature 5°C ~ 40°C (40°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Supported OS Windows OS?Mac OS
Warranty 2 years
Certificate CE, FCC, CCC, KC
Environment RoHS compliance
Package Contents: Host unit (x1)
Power cord (x1)
USB Cable A to Type-C(10Gb) (x1)
Quick Installation Guide (x1)
Power adapter (x1)
Screws (several)
Limited Warranty Note x 1
