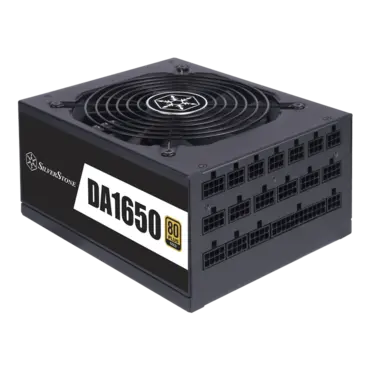

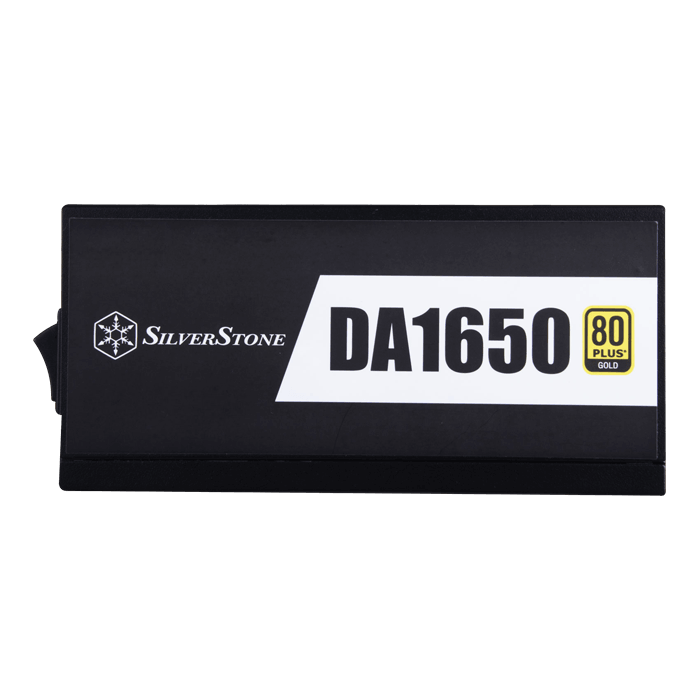

DA1650, 80 PLUS Gold 1650W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 13620044
  • Manufacturer: SILVERSTONE
  • MPN: DA1650-G
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$461.15
Quantity:
  • High efficiency with 80 PLUS Gold certification2
  • 4/7 continuous power output with 50? operating temperature
  • 100% modular design with universal EPS / PCIe connector interface for maximum flexibility
  • Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
  • Strict ±2% voltage regulation and low ripple & noise
  • All Japanese capacitors
Model No. SST-DA1650-G
Max. DC Output 1650W
Power density 711W per liter
Load Range
  +3.3V +5V +12V +5VBS -12V
Max.(Amps) 25A 25A 137.5A 3.0A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±2% ±2% ±2% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Color Black (Lead-Free Paint)
Combined +3.3V & +5V 130W
Combined +12V 1650W
Input Voltage 90V~264V
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC(PF>0.9 at Full Load)
Efficiency 87% ~ 90% (at 20% ~ 100% loading)
MTBF 100,000 hours
Operating temperature 0°C ~ 50°C
Protection Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors 1 x 24 / 20-Pin motherboard connector (600mm)
4 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 4)
8 x 8 / 6-Pin PCIe connector ("600mm / 150mm" x 4)
4 x 8 / 6-Pin PCIe connector ("600mm" x 4)
16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4)
6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2)
1 x 4-Pin Floppy adapter connector (100mm)
Cooling System Single 135mm FDB fan
Form factor ATX / PS/2
Noise Level 0dBA ~ 36dBA
Dimension 150 mm (W) x 86 mm (H) x 180 mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D)
Weight 2.09 kg
Certification 80 PLUS Gold
Other GPU Support list
Compatible with ATX12V v2.4
