DH410, Intel® H410 Chipset, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, Intel® UHD Graphics, Slim PC Barebone

SKU: 13946154

Manufacturer: SHUTTLE

MPN: DH410

Availability: Unknown


Price: $334.65
or as low as $11/month
FORM FACTOR 1.3L chassis
PROCESSOR Support Cometlake-s LGA1200 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
CHIPSET Intel H410 Express chipset
MEMORY 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 2666/2933 MHz
VIDEO OUTPUT HDMI 2.0 + DisplayPort, Dual video output
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC662 High Definition Audio
ETHERNET Intel I210AT*2 Dual Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

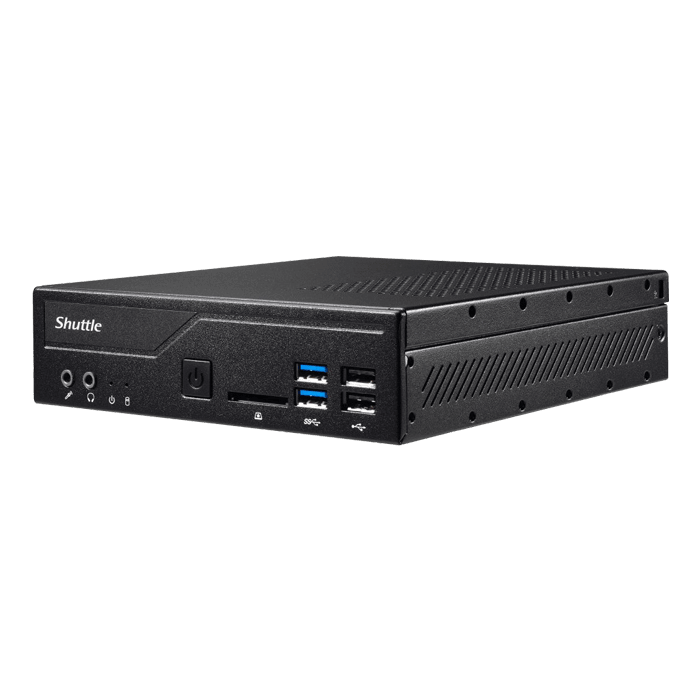

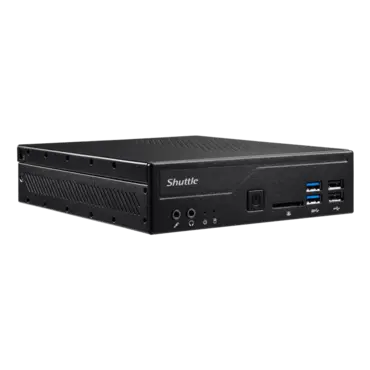

FRONT PANEL (2) USB 2.0 ports
(2) USB 3.2 Gen1 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader

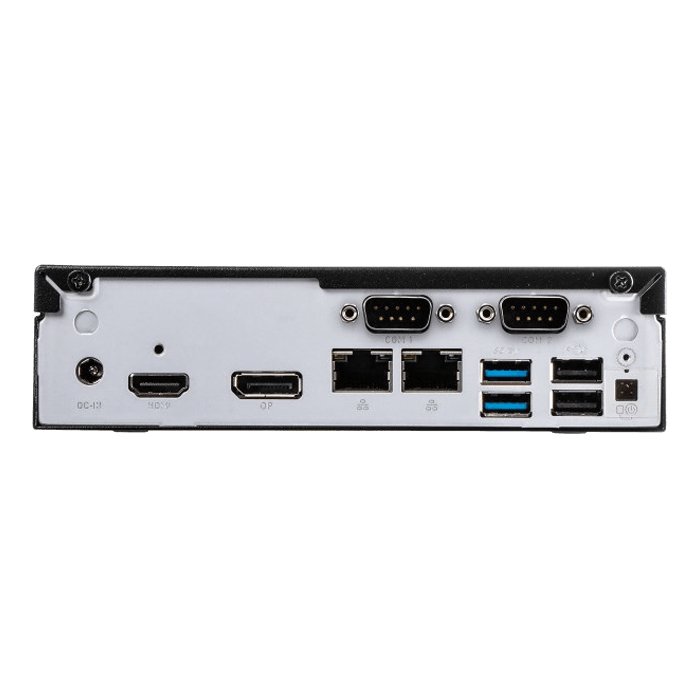

BACK PANEL (2) RJ45 Gigabit LAN port w/LED
(Green-link/Yellow-active)
(1) HDMI port
(1) Display port
(2) USB 2.0 ports
(2) USB 3.2 Gen1 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 90W Power Adapter
Input:100- 240V AC
19V 4.74A DC or Output:12V/7.5A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
90W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 10 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
