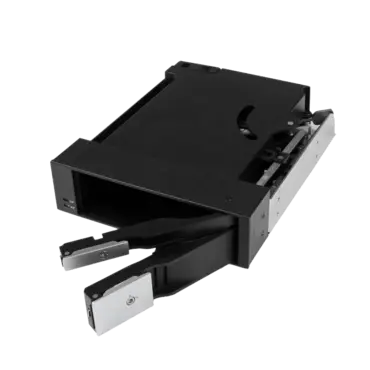

Dual Bay 5.25" Trayless Hot Swap Mobile Rack Backplane for 2.5" and 3.5" SATA/SAS HDD or SSD with Fan

SKU: 8254555

Manufacturer: STARTECH.COM

MPN: HSB2535SATBK

Availability: Low Stock


Price: $30.76
or as low as $1/month
Quantity:

The HSB2535SATBK Removable 2-drive backplane lets you quickly install and hot-swap drives from the front of your computer, by turning a 5.25" bay into a hot-swappable SATA/SAS interface for you to connect a 3.5” SATA hard drive (HDD) and/or a 2.5” SATA hard drive or solid state drive (SSD). The hard drive bay interfaces with SATA/SAS, offering two trayless hard drive bays and can be mounted into any 5.25" front bay, to provide a hot-swappable mobile rack. The bays feature ejection levers which allow drives to be installed and removed quickly from the computer system, providing a convenient way to create backups that can then be removed for safekeeping, archiving, or external portable access. For added versatility the backplane provides support for both SATA and SAS interfaces, an ideal accommodation for enterprise system integration. Plus, to help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan and slotted aluminum enclosure. The HSB2535SATBK is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Warranty Information
Warranty 2 Years
Physical Characteristics
Product Height 1.7 in [42 mm]
Product Length 5.8 in [148 mm]
Product Weight 18.9 oz [536 g]
Product Width 7.2 in [182.6 mm]
Hardware
Compatible Drive Types (Type and Rate) SAS & SATA
Drive Installation Removable
Drive Size 2.5in & 3.5in
Fan Bearing Type Ball Bearing
Fan(s) Yes
Fans 1 - 50 mm
Interface SATA
Key Lock Yes
Number of 2.5 inch bays 1
Number of Drives 2
Number of internal 3.5 inch bays 1
Performance
Insertion Rating 10,000
Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives (3.5")
Currently tested with up to 1TB 7200 RPM hard drives (2.5")
Maximum Data Transfer Rate 6 Gbit/s
Type and Rate SATA III (6 Gbps)
Connector(s)
Drive Connectors 2 - SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
Host Connectors 1 - LP4 (4 pin; Molex Large Drive Power) Male
2 - SATA (7 pin; Data) Receptacle
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 1 - 2.5" HDD/SSD Activity LED
1 - 3.5" HDD Activity LED
Environmental
Humidity 20%RH ~ 80%RH
Operating Temperature -5°C to 35°C (23°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Packaging Information
Shipping (Package) Weight 1.6 lb [0.7 kg]
What's in the Box
Included in Package 1 - 2.5/3.5in SATA HDD Backplane
2 - 18" SATA Cable
1 - Molex LP4 to SATA Power Adapter Cable
2 - Bay Key
1 - Installation Screw kit
1 - Instruction Manual
