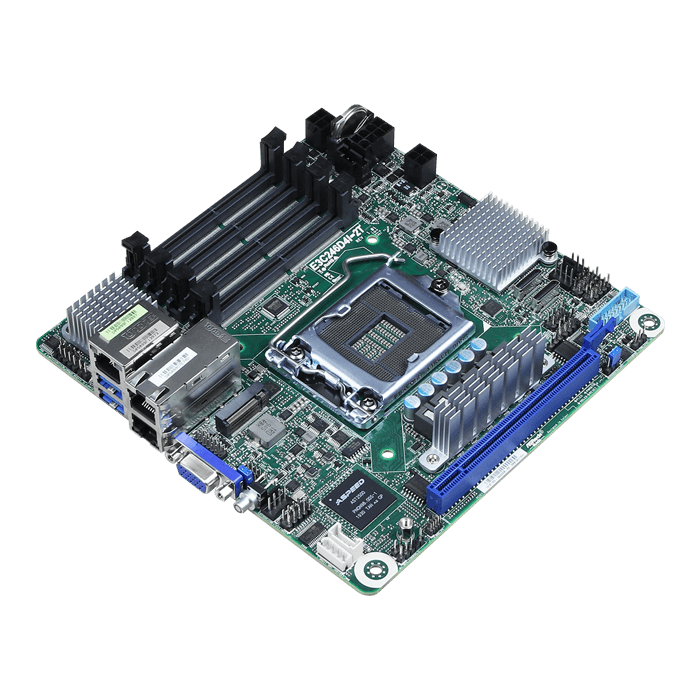

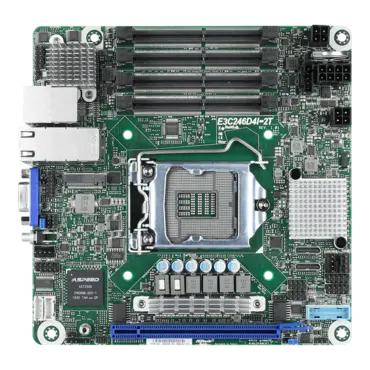

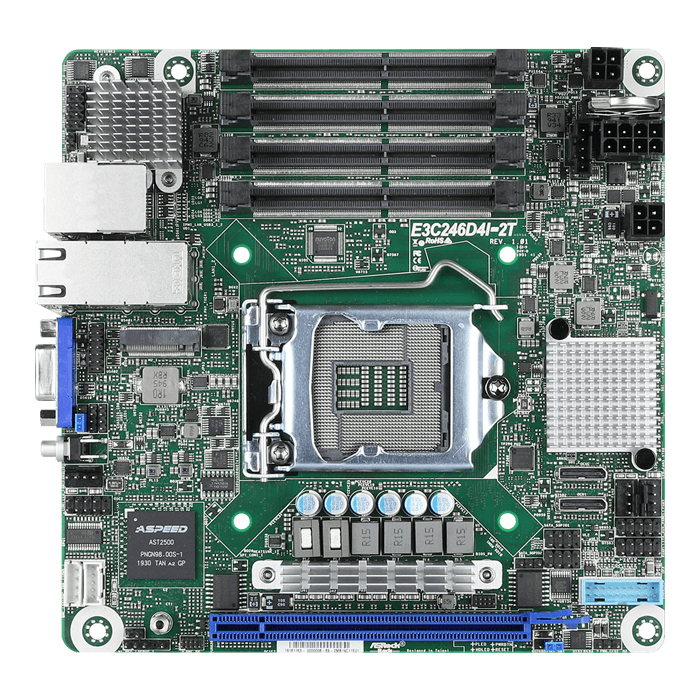

- Supports Intel Xeon E-2100 Processors
- Supports Dual channel DDR4 2666/2400/2133 ECC SO-DIMM max 128 GB
- Support 8x SATA3 by C246 (from 2 OCulink)
- Supports 1x PCIe 3.0 x16
- Integrated IPMI 2.0 with KVM and Dedicated LAN
- Supports Intel X550, 2 x10GLAN
MB Physical Status | |
Form Factor | - mini-ITX |
Dimensions | - 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
Processor System | |
CPU | - Supports Intel® Xeon® E-2100 Processors (Max. 95W) |
Chipset | - Intel® C246 |
System Memory | |
Capacity | - 4 x DDR4 SO-DIMM slots |
Type |
- Dual Channel DDR4 memory technology, 2 DIMM per Channel - Supports DDR4 2666/2400/2133 ECC/non-ECC SO-DIMM Max. capactiry of system memory:32GBx4 |
Voltage | - 1.2V |
Expansion Slot | |
PCIe 3.0 x 16 | - SLOT7: Gen3 x16 link |
Storage | |
SATA Controller | - C246: 8x SATA3 6Gb/s (SATA 0-3 by OCulink1, SATA 4-7 by Oculink2) + 1 x M.2 (NGFF 2280, PCI-E Gen3 x4 link or SATA signal) |
Ethernet | |
Interface | - 10000/1000 /100 /10 Mbps |
LAN Controller |
- 2 x RJ45 10GLAN by IntelX550 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function(TBD) - Supports PXE |
Management | |
BMC Controller | - ASPEED AST2500 |
IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
Features |
- Watch Dog - NMI |
Graphics | |
Controller | - ASPEED AST2500 |
VRAM | - DDR4 512Mb |

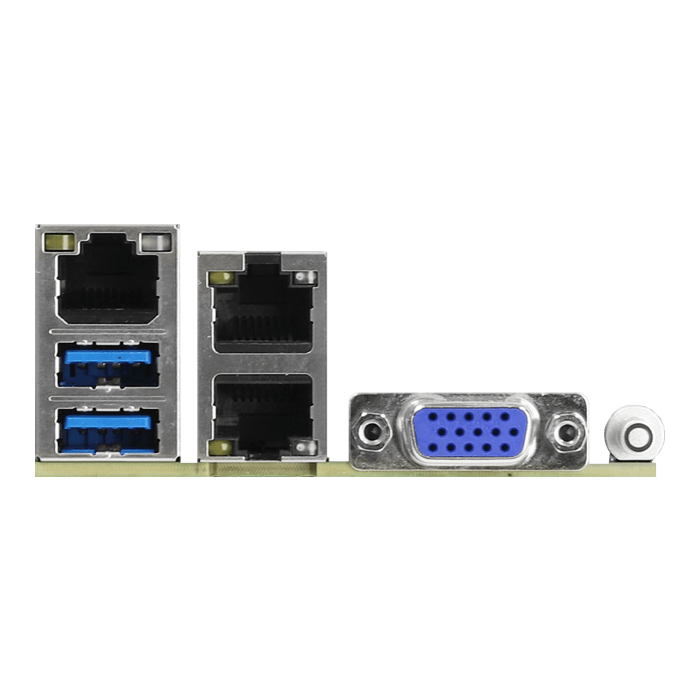

Rear Panel I/O | |
VGA Port | - 1 x D-Sub |
USB 3.1 Gen1 Port | - 2 |
Lan Port |
- RJ45:2 10GLAN+1(IPMI) LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
UID Button/UID LED | - 1 |
Internal Connector | |
M.2 | - 1 x M.2 (NGFF 2280, PCI-E Gen3 x4 link or SATA signal) |
OCuLink | - 2 ports (support SATA x4ports or PCIEx4 ) |
Auxiliary Panel Header | - 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED) |
TR1 Header | - 1 |
TPM Header | - 1 |
IPMB Header | - 1 |
Buzzer | - N/A |
Fan Header | - 3(1CPU/1Front/1Rear) |
ATX Power | - 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W) |
USB 3.1 (Gen2) Header | - 1 (support 2 USB 3.0) |
PWR SMB Header | - 1 |
Front Panel | - 1 (RST, HDLED, PLED, PERBTN) |
SATA Power Connector | - 1 x 4-pin |
Speaker Header | - N/A |
SGPIO Header | - 2 |
COM from BMC | - 1 |
SMBUS from BMC | - 1 |
Clear CMOS | - 1 |
NC-SI | - 1 |
BIOS_PH | - 1 |
BMC_PH | - 1 |
Debug1 | - 1 |
MFG_1 | - 1 |
X550_DEBUG1 | - 1 |
SEC_OR1 | - 1 |
Onboard LED | |
Fan Fail LED | - 3 |
System BIOS | |
BIOS Type | - 256Mb AMI UEFI Legal BIOS |
BIOS Features |
- Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
Hardware Monitor | |
Temperature |
- CPU Temperature Sensing - System Temperature Sensing - System Inlet Temperature Sensing |
Fan |
- CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCM, VCCIO, VCCSA, VCCST_SFR, V1.0M, 3VSB, 5VSB, VBAT |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Notice: The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed. |
