EK-AF Angled 90° G1/4 - Black

  • SKU: 9342191
  • Manufacturer: ekwb
  • MPN: 3831109845288
  • Availability: LOW STOCK
Starting At
$3.59 $5.13

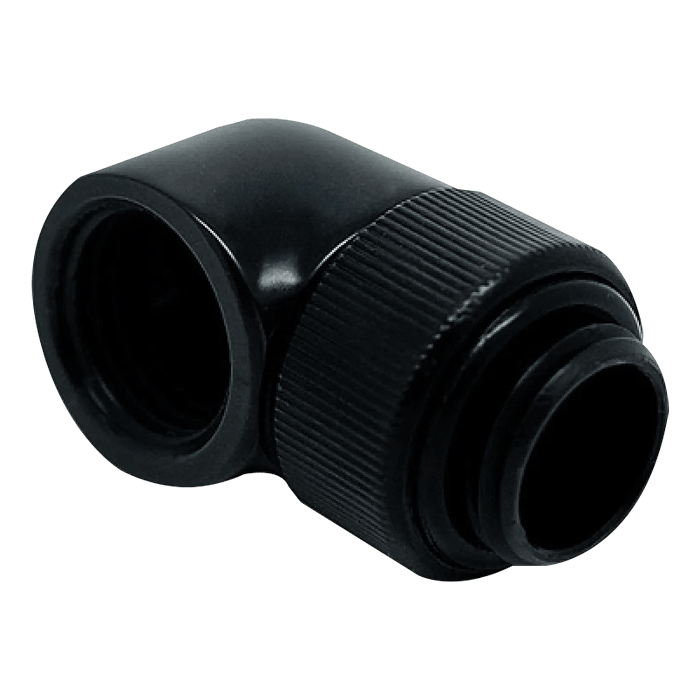

EK-AF Angled 90° G1/4 - Black

ekwb EK-AF Angled 90° (3831109845288). EK-AF (Adapter Fitting) Revolvable angled adaptor (90°) with G1/4" threads. Adapter allows connection of fitting with G1/4" threads to extend tubing possibilites in your water cooled system.

Technical specifications:
- Material: made of black coated brass
- Threads:
* G1/4" BSP; 4,5mm male thread lenght
* G1/4" BSP, 6mm female thread lenght
- Outer diameter of a knurled part: 19,8mm
- Installed height: 28mm
- Sealed with high quality NBR oring.

ROHS compliant!


  • All AF Angled adapters are hand polished and rounded, therefore minor geometrical imperfections are to be expected. This fact does not fall under warranty terms and RMA rights!
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Threads G1/4
