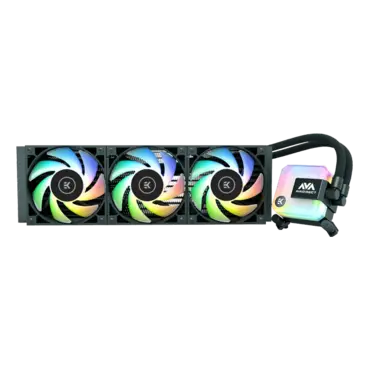

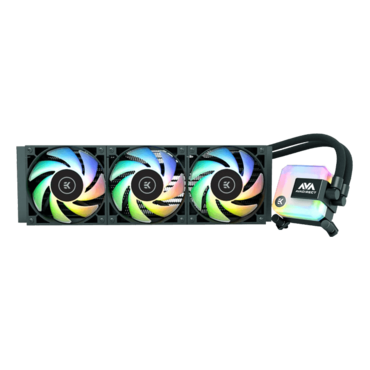

EK-AIO 360 D-RGB, 360mm Radiator, Liquid Cooling System, OEM packaging

Quantity:

SKU: 13634758
Manufacturer: ekwb
MPN: 3831109828748
Availability: CONTACT US

Starting At

$155.99

Technical Specifications:	- Radiator Dimensions: 395 x 120 x 27 mm - Radiator Material: Aluminum - Fan Compatibility: 120 mm - Pump Unit Dimensions: 88 x 70 x 53 mm - Pump Unit Material: ABS Housing, Copper Cold plate, Steel Mounting Pump - Pump Speed Range: 450 - 2600 RPM ± 10% - Pump PWM Range: 20 - 100% - Pump Cable Length: 50 mm - Pump Unit RGB Type: 5V Digital (Addressable) - Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm - Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve - Tubing Length: 400 mm - Fan Dimensions: 120 x 120 x 25mm - Fan Speed Range: 550 - 2200 ± 10% - Fan Noise Level: 36,4dBA (at maximum speed) - Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed) - Fan Air Flow: 66,04 CFM = 112,20 m³/h (at maximum speed) - Fan Cable Length: 500 mm - Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground - Fan RGB Cable Length: 50 mm
System Requirements:	- 4-Pin PWM Header for pump and fan operation - 3-Pin Addressable 5V D-RGB header
Enclosed:	- EK-AIO 360 unit - EK-Vardar S 120ER D-RGB (3pc) - Tube of Thermal Paste - Mounting Kit
Mounting kit:	Zip Bag 1: - 4x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length) - 4x Phillips Head Screw UNC 6-32 x 6mm - 4x Phillips Head Screw UNC 6-32 x 34mm Zip Bag 2: - 4x Thumb nut (Intel /AMD) - 4x Mounting thumb screw for INTEL LGA 115x / AMD AM4 socket - 4x Mounting thumb screw for Intel LGA 20XX socket - 4x Spring - 4x Mounting Plate Phillips Head M4x4mm (for the installation of mounting brackets) Zip Bag 3: - 1x Intel LGA 115x Backplate - 2x Intel mounting bracket - 2x AMD mounting bracket
CPU Socket Support:	- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 - LGA 1700 Compatible (Extra LGA 1700 bracket required, please contact manufacture customer service for support at ekwb.com/customer-care) - AMD Sockets: AM4
Warranty	5 Years Limited International Warranty
