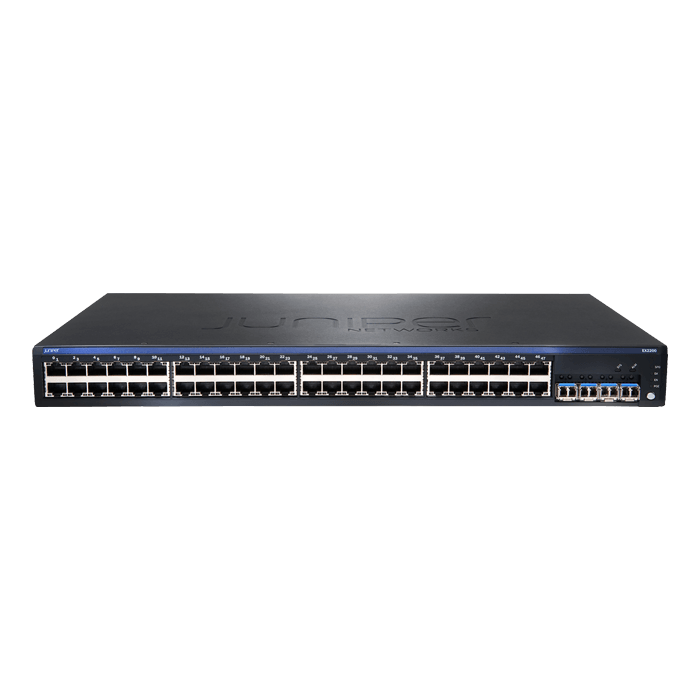

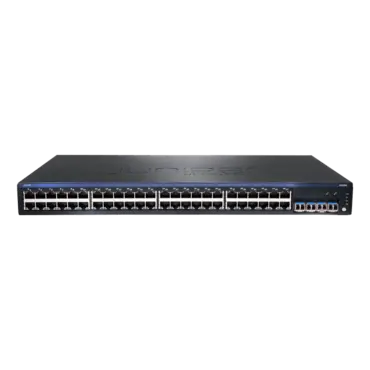

EX2200, 48 x RJ45 PoE, 4 SFP, 10/100/1000BaseT, Managed Ethernet Switch

SKU: 12618003

Manufacturer: JUNIPER NETWORKS

MPN: EX2200-48P-4G

Availability: Special Order


Price: $3,615.96
or as low as $117/month
Quantity:
Model: EX2200-48P-4G
Physical Specifications
Dimensions (W x H x D) Width: 17.4 in (44.1 cm) for desktop installations
17.5 in (44.6 cm) with rack-mount brackets
Height: 1.75 in (4.45 cm) for 1U installations
Depth: 10 in (25.43 cm)
Weight 10 lb (4.5 kg)
Rack mountable 1 Rack Unit
Hardware Specifications
Switching Engine Model Store and forward
DRAM 512 MB
Flash 1 GB
CPU 800 MHz ARM CPU
GbE port density per system 52 (48 host ports+ four-port GbE uplinks)
Packet Switching Capacities 104 Gbps
Layer 2 Throughput (Mpps) 77.4 Mpps (wire speed)
Power Options
Power Supplies
  • 91 W AC Maximum System Power Consumption (Input Power without PoE)
  • 405 W Total PoE Power Budget
Environment
Operating Temperature 32° to 113° F (0º to 45º C)
Storage Temperature -40º to 158º F (-40º to 70º C)
Relative Humidity (Operating) 10% to 85% (noncondensing)
Relative Humidity (Non-Operating) 0% to 95% (noncondensing)
Altitude (Operating) Up to 10,000 ft (3,048 m)
Altitude (Non-Operating) Up to 16,000 ft (4,877 m)
Cooling Airflow: 16.4 cfm
Noise Specifications
Noise Specifications Noise measurements based on operational tests taken from bystander position (front) and performed at 25° C in compliance with ISO 7779
Acoustic Noise in DBA 38.1
Safety and Compliance
Safety Certifications
  • UL-UL60950-1 (First Edition)
  • C-UL to CAN/CSA 22.2 No.60950-1 (First Edition)
  • TUV/GS to EN 60950-1, Amendment A1-A4, A11
  • CB-IEC60950-1, all country deviations
Electromagnetic Compatibility Certifications
  • FCC 47CFR Part 15 Class A
  • EN 55022 Class A
  • ICES-003 Class A
  • VCCI Class A
  • AS/NZS CISPR 22 Class A
  • CISPR 22 Class A
  • EN 55024
  • EN 300386
  • CE
NEBS
  • GR-63-Core: NEBS, Physical Protection
  • GR-1089-Core: EMC and Electrical Safety for Network Telecommunications Equipment
  • All models except EX2200-24P-4G and EX2200-48P-4G
Telecom Quality Management TL9000
Environmental Reduction of Hazardous Substances (ROHS) 6
Telco CLEI code
Warranty Limited lifetime switch hardware warranty
