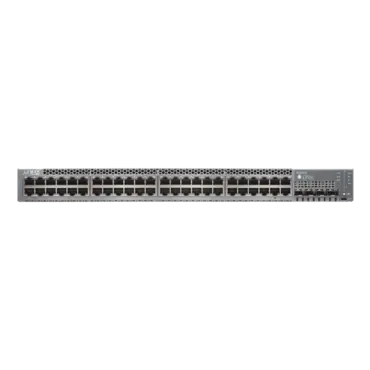

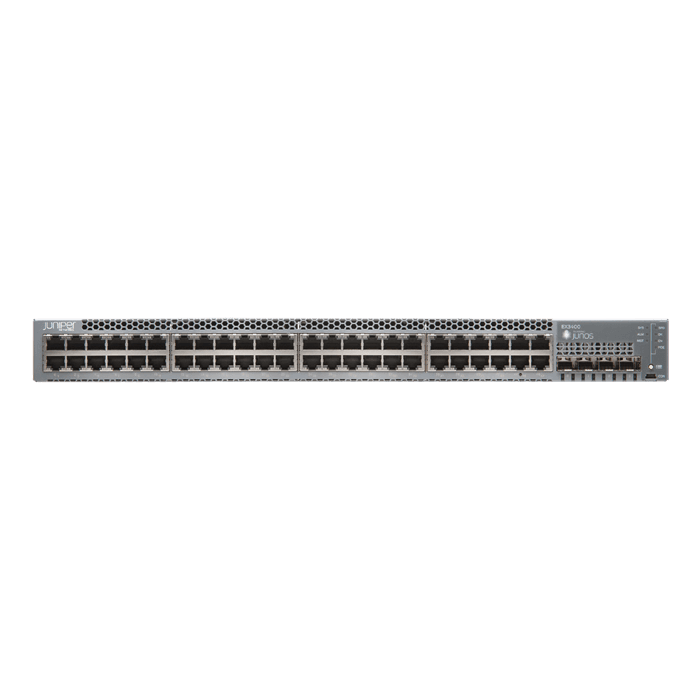

EX3400, 48 x RJ45 PoE+, 4 SFP+ and 2 QSFP+ Uplink Ports, 1G/10G, Managed Ethernet Switch

SKU: 12618005

Manufacturer: JUNIPER NETWORKS

MPN: EX3400-48P

Availability: Special Order


Price: $5,083.68
or as low as $164/month
Quantity:
Model: EX3400-48T/P
Physical Specifications
Dimensions (W x H x D) 17.4 x 1.72 x 13.8 in (44.2 x 4.4 x 35 cm)
System Weight
  • EX3400 switch (no power supply or fan module): 10.49 lb (4.76 kg) maximum
  • EX3400 switch (with single power supply and two fan modules): 12.65 lb (5.74 kg) maximum
  • 150 W AC power supply: 1.43 lb (0.65 kg)
  • 600 W AC power supply: 1.82 lb (0.83 kg)
  • 920 W AC power supply: 1.87 lb (0.85 kg)
  • 150 W DC power supply: 1.43 lb (0.65 kg)
  • Fan module: 0.16 lb (0.07 kg)
Rack mountable 1 Rack Unit
Backplane 160 Gbps (with QSFP+ ports) or 80 Gbps (with SFP+ ports) Virtual Chassis interconnect to link up to 10 switches as a single logical device
Uplink Fixed 4-port uplinks can be individually configured as GbE (SFP) or 10GbE (SFP+) ports; 2 x 40G QSFP+ ports
Hardware Specifications
Switching Engine Model Store and forward
DRAM 2 GB with ECC
Flash 2 GB
CPU Dual Core 1 GHz
GbE port density per system 54 (48 host ports + four 1/10 GbE and two 40GbE uplink ports)
Physical Layer
  • Cable diagnostics for detecting cable breaks and shorts
  • Auto medium-dependent interface/medium-dependent interface crossover (MDI/MDIX) support
  • Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports
  • Digital optical monitoring for optical ports
Packet-Switching Capacities (Maximum with 64-Byte Packets) 336 Gbps
Power Options
Power Supplies EX3400-48T/EX3400-48T-AFI: 150W
EX3400-48P: 920W
Environment
Operating Temperature 32° to 113° F (0º to 45º C)
Storage Temperature -40º to 158º F (-40º to 70º C)
Relative Humidity (Operating) 10% to 85% (noncondensing)
Relative Humidity (Non-Operating) 0% to 95% (noncondensing)
Altitude (Operating) Up to 10,000 ft (3048 m)
Altitude (Non-Operating) Up to 16,000 ft (4877 m)
Noise Specifications
Noise Specifications Noise measurements are based on operational tests taken from bystander position (front) and performed at 23° C in compliance with ISO 7779.
Acoustic Noise in DBA EX3400-48T: 35
EX3400-48T-AFI: 39
EX3400-48P: 46
Safety and Compliance
Safety Certifications
  • UL-UL60950-1 (Second Edition)
  • C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition)
  • TUV/GS to EN 60950-1 (Second Edition), Amendment A1-A4, A11
  • CB-IEC60950-1 (Second Edition with all country deviations)
  • EN 60825-1 (Second Edition)
Electromagnetic Compatibility Certifications
  • FCC 47CFR Part 15 Class A
  • EN 55022 Class A
  • ICES-003 Class A
  • VCCI Class A
  • AS/NZS CISPR 22 Class A
  • CISPR 22 Class A
  • EN 55024
  • EN 300386
  • CE
Telecom Quality Management TL9000
Environmental Reduction of Hazardous Substances (ROHS) 6
Telco CLEI code
Warranty Enhanced limited lifetime switch hardware warranty
