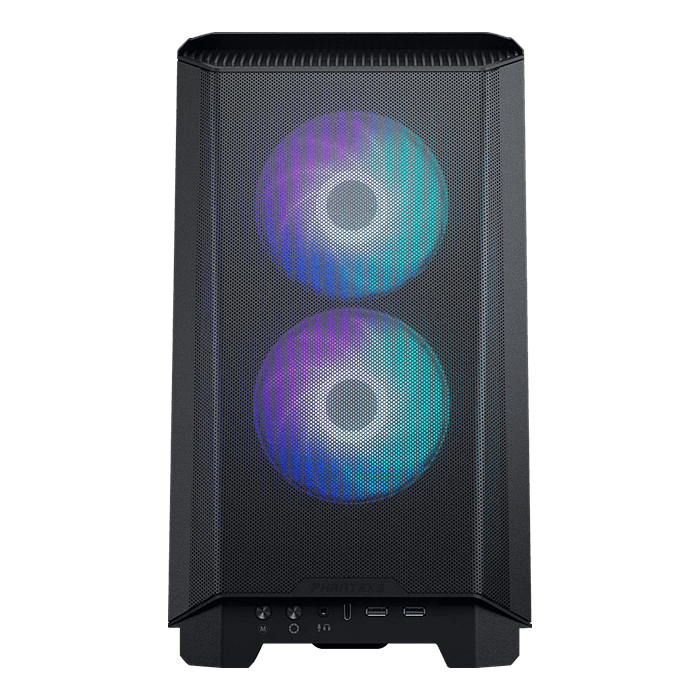

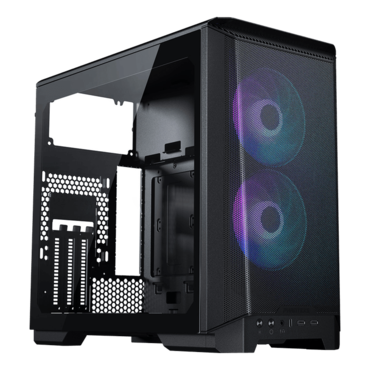

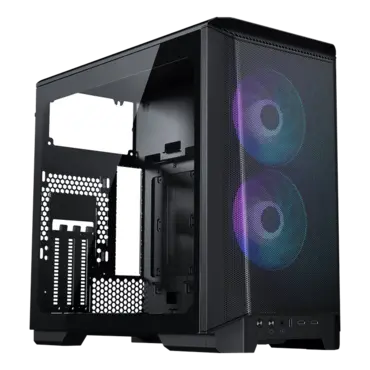

Eclipse P200A D-RGB Tempered Glass, No PSU, Mini-ITX, Black, Mini Tower Case

The Eclipse P200A PH-EC200ATG_DBK01

Is a high airflow mini-ITX chassis featuring the Ultra-fine Performance Mesh to bring the highest cooling performance.

The open interior offers plenty of space for standard ATX power supplies, triple slot Graphics Cards and plenty of 240/280 radiator options in the front and side of the chassis.
The Eclipse P200A makes building a powerful yet compact ITX system a breeze.

Brand Phanteks
Model PH-EC200ATG_DBK01
Type  Mini-ITX Tower
Color Black
Case Material Steel / Tempered Glass
With Power Supply No
Power Supply Mounted  Top
Motherboard Compatibility  Mini-ITX / Mini-DTX
Side Panel Window  Tempered Glass window
LED  2 x 120mm D-RGB PWM fans included
Dust Filters  Bottom
Internal 3.5" Drive Bays 4 (Stackable 3.5" Bracket sold separately)
Internal 2.5" Drive Bays 4 (4x included)
Expansion Slots  3
Front Ports USB-C GEN 2 / 2 x USB 3.0 / LED Mode Button / LED Color Button / Power Button / Microphone&Headphone
Fan Options Front: 2 x 120mm fan (2 x 120mm fan pre-installed) / 2 x 140mm fan

Side: 2 x 120mm fan

Rear: 1 x 120mm fan

Bottom: 2 x 120mm fan
Radiator Options Front - Up to 280mm / Rear - Up to 120mm / Side - Up to 240mm
Max GPU Length 355 mm
Max CPU Cooler Height 165 mm
Max PSU Length 205mm (190mm recommended)
Dimensions (H x W x D) 14.37" x 8.07" x 15.75"
Weight 12.00 lbs.
Package Content 1 x Eclipse P200A case
2 x 2.5" SSD Covers
1 x SSD bracket (for 2 x 2.5" SSD)
2 x SK 120mm PWM D-RGB fans
6 x Zip Ties
1 x Vertical GPU mount
1 x Accessory Bag with neccessary screws and standoffs
