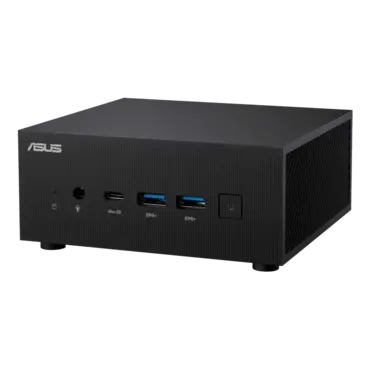

ExpertCenter PN53-BB5000X1TD, AMD Ryzen™ 5 6600H, 2x DDR5 SO-DIMM, 2x M.2, 2.5" HDD/SSD, AMD Radeon™ 660M Graphics, Mini PC Barebone
Quantity:
- SKU: 15218294
- Manufacturer: ASUS
- MPN: PN53-BB5000X1TD
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$394.49
| CPU | AMD Ryzen™ 5 6600H Processor 3.3GHz (16M Cache, up to 4.5GHz)(cTDP 35W) |
| Chipset | Integrated |
| Graphics | Integrated - AMD Radeon™ 660M Graphics |
| Memory | 2 x SO-DIMM , DDR5-4800MHz memory (up to 32GB x 2) |
| Storage |
2 x M.2 2280, up to PCIe Gen4x4 1 x 2.5” 7mm SATA 6Gb/s |
| LAN | 2.5G LAN, 10/100/1000/2500 Mbps |
| Wi-FI | Wi-Fi 6 + BT5, 2 x 2, or Wi-Fi 6E + BT5, 2 x 2, |

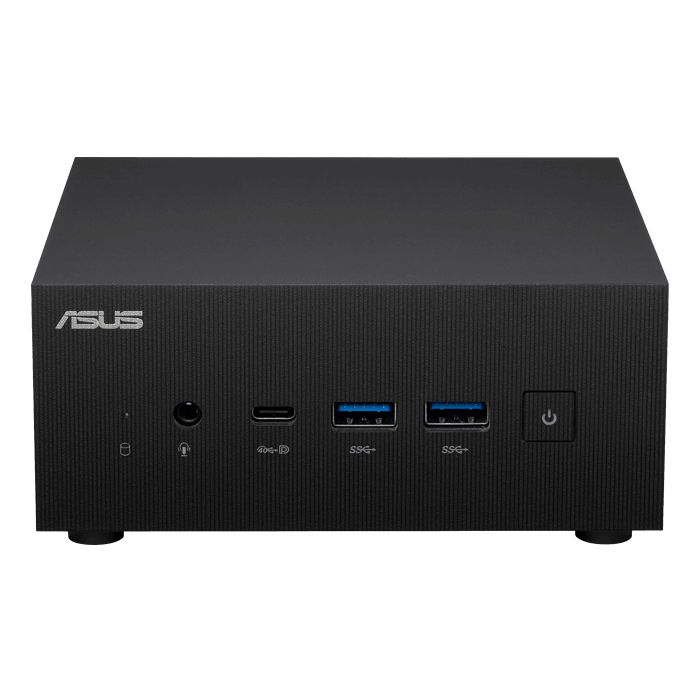

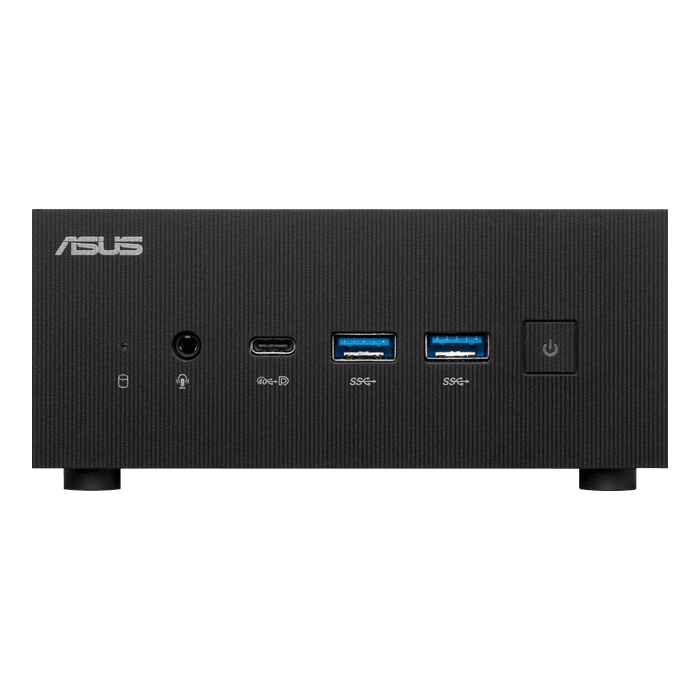

| Front I/O |
1 x USB 4 Type-C (Support DP1.4) 2 x USB 3.2 Gen1 1 x Audio Jack (Line out/ Mic in/ Headphone out) |
| Side I/O | 1 x Kensington Lock |

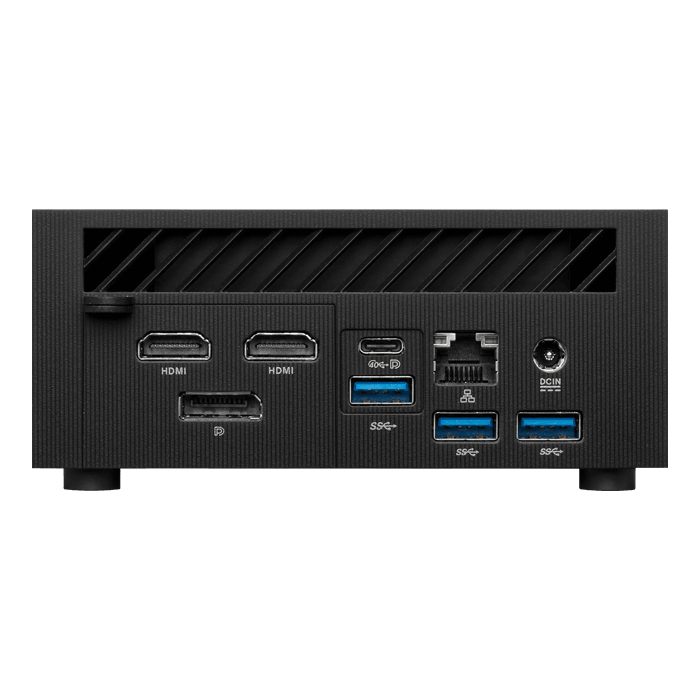

| Back I/O |
1 x USB 4 Type-C (Support DP1.4, PD input2) 3 x USB 3.2 Gen1 2 x HDMI 2.13 (Up to 4K@60Hz) 1 x Configurable Port(options: Display Port 1.4/ HDMI2.1/ COM/ VGA) 1 x 2.5G RJ45 LAN 1 x DC-in 1 x Padlock ring |
| TPM | fTPM 2.0 or TPM module onboard(Optiuonal) |
| Power | 20Vdc/19Vdc, 6.0A/6.32A 120W Power Adapter |
| Dimension | 120 x 130 x 58 mm |
| Weight | 0.75 kg(barebone) |
| Note |
1Support NVMe 2Supports up to 4 display simultaneously Power supply device need to support Power Delivery & at least 100W output 3Up to 4K resolution at 60Hz, full HDR support, HDCP 1.4 & 2.3 |
