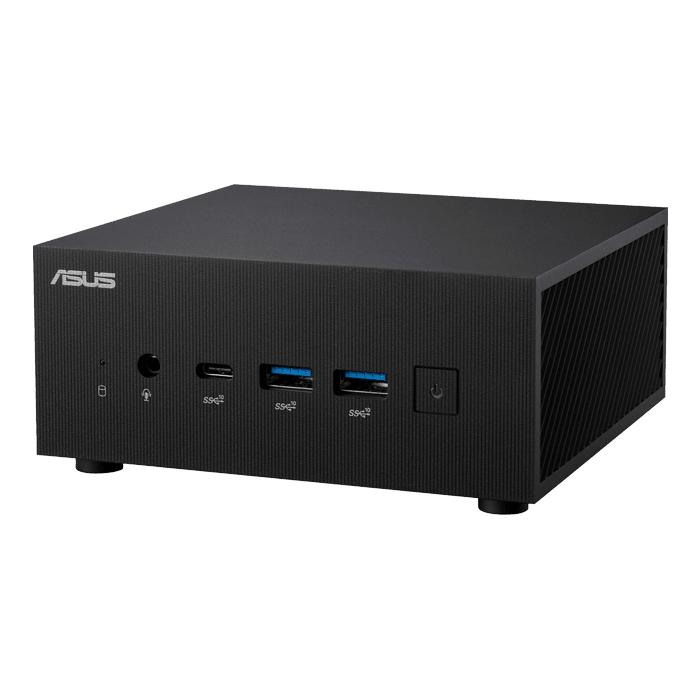

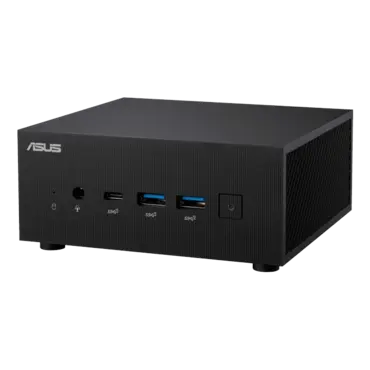

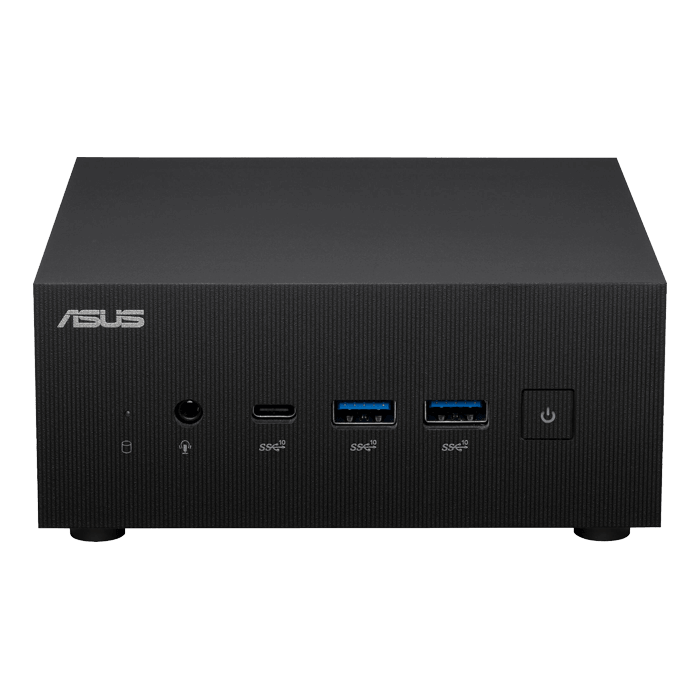

ExpertCenter PN64-BB7000X1TDR, Intel® Core™ i7-13700H, 2x DDR5 SO-DIMM, M.2, 2.5" HDD/SSD, Intel® Iris® Xe Graphics, Mini PC Barebone
Quantity:
- SKU: 16021551
- Manufacturer: ASUS
- MPN: PN64-BB7000X1TDR
- Availability: CONTACT US
Starting At
$690.72
| Model | ASUS ExpertCenter PN64(Barebone) |
| CPU | Intel® Core™ i7-13700H Processor, 35W TDP |
| Chipset | Integrated |
| Graphics |
Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor) *Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance |
| Memory |
2 x DDR5 SO-DIMM, Max. 16GB x 2(12th Gen CPU) or 32GB x 2(13th Gen CPU) * Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details. |
| Storage |
1 x M.2 2280 PCIe Gen4x4 slot, 1 x SATA 6Gb/s connector for 2.5" HDD * 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details. |
| Wireless Data Network |
Intel® Wi-Fi 6E (Gig+), Bluetooth® 5, 2x2 Wi-Fi 6E (Gig+), Bluetooth® 5, 2x2 Intel® Wi-Fi 6 (Gig+), Bluetooth® 5, 2x2 *WiFi 6E 6GHz regulatory may vary among countries. WiFi 6E and Bluetooth v5.2 functions to be supported in Windows 11 or later. *Bluetooth v5.2 functions to be supported in Windows 11 or later. |
| LAN | 10/100/1000/2500 Mbps, 2.5G Intel® LAN |
| Audio | Realtek® ALC3251 HD Audio CODEC |

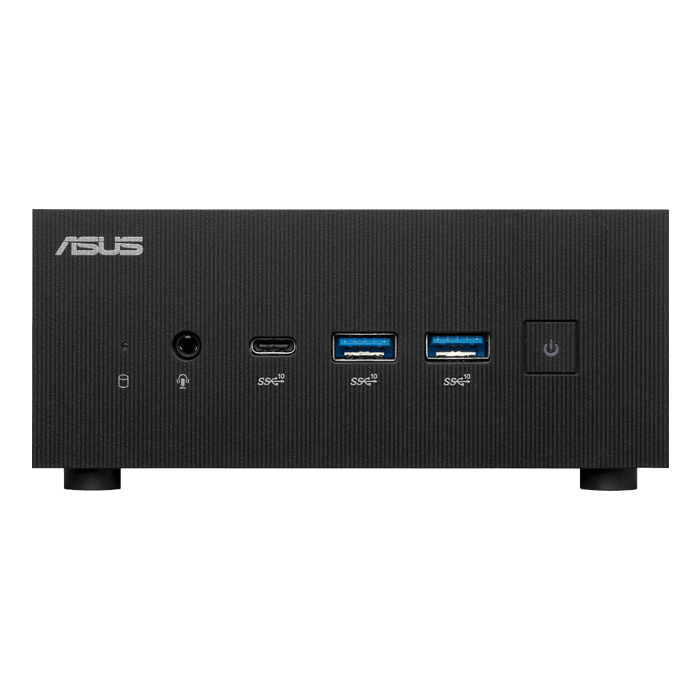

| Front(Side) I/O Ports |
1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen2 Type-A 1 x Audio Jack 1 x Kensington Lock(side) |

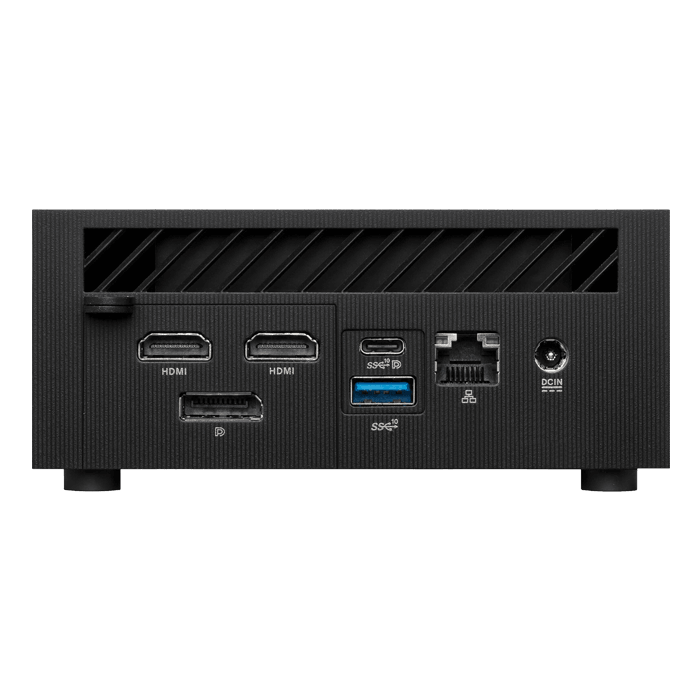

| Back I/O Ports |
1 x USB 3.2 Gen2 Type-C (w/ DP output, PD input) 1 x USB 3.2 Gen2 Type-A 2 x HDMI 1 x Configurable Port 1 x 2.5G RJ45 LAN 1 x Padlock ring 1 x DC-in |
| Configurable Port Options |
1 x HDMI 1 x DisplayPort1.4 1 x COM 1 x VGA 1 x 2.5G LAN |
| Speaker | No |
| Power Supply |
19Vdc, 4.74A, 90W Power Adapter 19Vdc, 6.32A, 120W Power Adapter |
| Dimensions (W x D x H) | 120 x 130 x 58 mm |
| Weight | 0.75 kg(barebone) |
| Color | ECO Black |
| Accessories |
AC Adapter Driver DVD (non OS SKU only) Power Cord Screw Pack User Manual Warranty Card Keyboard & Mouse (optional) VESA Mount (optional) |
| Security |
Trusted Platform Module (TPM)* *on selected model Trusted Platform Module (Firmware TPM) |
| Certificates | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
