ExpertCenter PN64-BB7000X1TDR-NL, Intel® Core™ i7-13700H, 2x DDR5 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, Intel® Iris® Xe Graphics, Mini PC Barebone
Quantity:
- SKU: 16686993
- Manufacturer: ASUS
- MPN: PN64-BB7000X1TDR-NL
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$581.31
| Model | ASUS ExpertCenter PN64-BB7000X1TDR-NL |
| Operating System | W/O OS, Support Windows 11, Windows 10 Home/Pro |
| CPU | Intel® Core™ i7-13700H |
| Chipset | Intel® Platform |
| Graphics | Integrated - Intel® Iris® Xe Graphics |
| Storage |
W/O Storage; supports (2) internal storage drives: 1 x M.2 2280 NVMe™ PCIe® G4x4 SSD 1 x 6Gb/s SATA for 2.5" HDD/SSD |
| Memory | W/O RAM; supports 2 x SO-DIMM DDR5 4800 MHz memory slots (up to 16GB*2) |
| Wireless Data Network | Intel® Wi-Fi 6E AX210 (Gig+), 2x2 |
| LAN | 1 x 2.5 GbE |

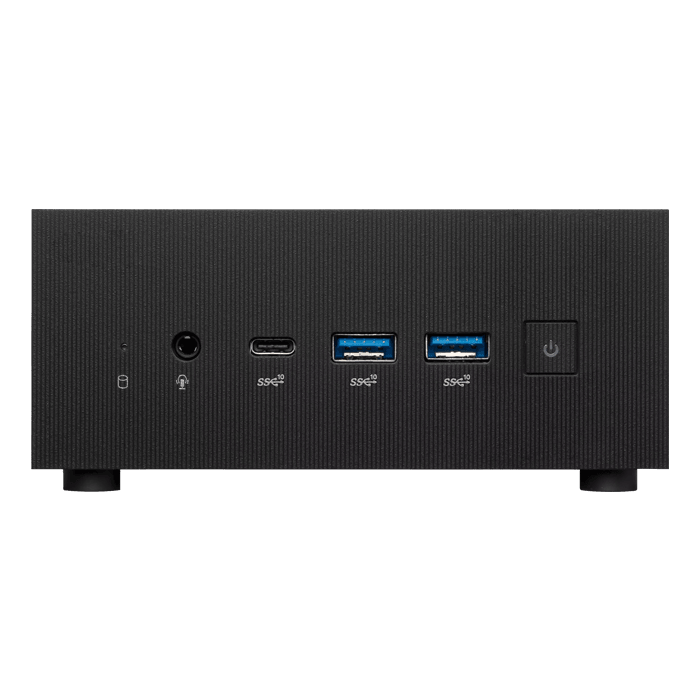

| Front(Side) I/O Ports |
1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps) 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) |

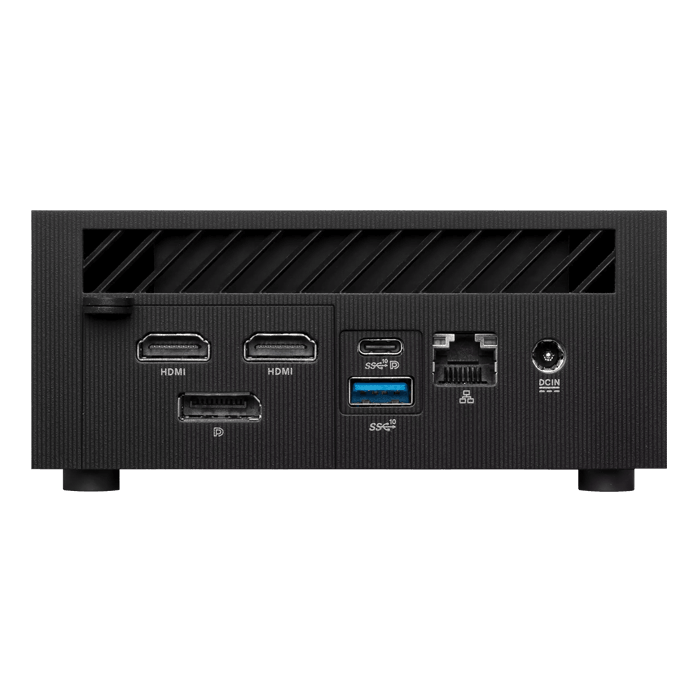

| Back I/O Ports |
1 x USB 3.2 Gen2 Type-C (with DP1.4/PD-in | 5V/3A, 10Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 2 x HDMI 2.1 (up to 4K@60Hz) 1 x Configurable Port (DisplayPort 1.4) 1 x Intel® 2.5G LAN (RJ45) 1 x Padlock Ring 1 x DC-in |
| Speaker | No |
| Power Supply | 19Vdc, 6.32A, 120W Power Adapter |
| Dimensions (W x D x H) | 1.0KG (include 2.5" HDD) |
| Color | Black |
| Accessories |
AC Adapter Driver DVD (non OS SKU only) Power Cord Screw Pack User Manual Warranty Card Keyboard & Mouse (optional) VESA Mount (optional) |
| Security |
Trusted Platform Module (TPM)* *on selected model Trusted Platform Module (Firmware TPM) |
| Certificates | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
