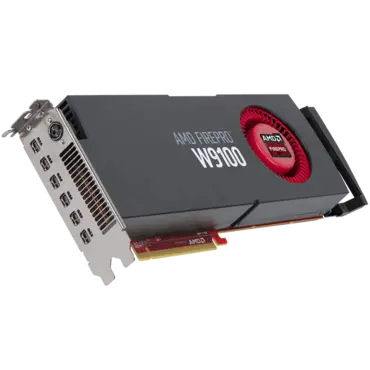

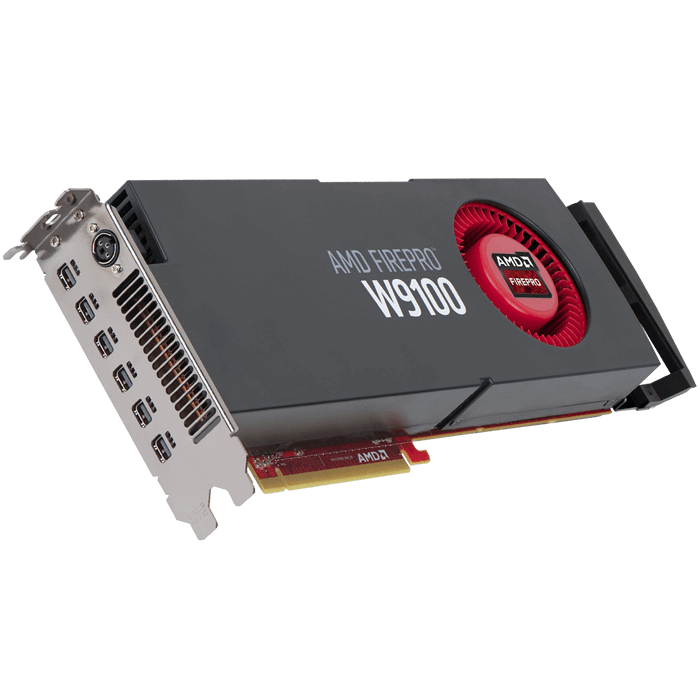

FirePro W9100 100-505725, 16GB GDDR5, Graphics Card

  • SKU: 8544773
  • Manufacturer: AMD
  • MPN: 100-505725
Starting At
FirePro W9100 100-505725, 16GB GDDR5, Graphics Card

AMD FirePro™ W9100 workstation graphics cards are designed for the next generation of 4K workstations. With industry leading graphics, compute power and ultra-high resolution multi-display capabilities, Video, Design, and Engineering professionals can work at a whole new level of detail, speed, responsiveness, and creativity.


2816 Stream Processors
28 nm
Graphics Core Next (GCN)

Interface PCI-Express 3.0
Memory 512 bit Memory Bus
GDDR5 Memory Type
320 GB/s Bandwidth
16GB Size
Floating-Point 5.24 TFLOPS Single Precision Performance
2.62 TFLOPS Double Precision Performance
Displays 6 Outputs
Output 6x Mini DisplayPort 1.2
1x 3D Connector
Framelock / Genlock Connector
Resolution 4096*2160 Pixel DisplayPort Resolution
2560*1600 Pixel Dual Link DVI Resolution
1920*1200 Pixel Single Link DVI Resolution
API OpenGL® 4.4
OpenCL 2.0
DirectX® 12
Shader Model 5.0
Feature GeometryBoost
1/2 Rate Double Precision
AMD PowerTune
AMD ZeroCore Power Technology
Framelock / Genlock Support
FreeSync Technology
AMD Eyefinity 2.0
ECC Memory Support (Error Correcting Code)
Stream Computing
Full 30-bit Display Pipeline
8, 10, 16-bit Per Pixel Color Component Output
Quad HD Display (4K*2K Support)
DirectGMA Support
Discrete Digital Multi-Point Audio(DDMA)
Projector Overlap Support
Bezel Compensation
Partially Resident Texture (PRT)
Video Codec Engine (VCE)
Certified Applications
AutoDetect Technology
Unified Driver Architecture
Cooling Fan Cooling
Form Factor 2 Part Slot Occupied
4.376*11 Dimension/Inch
Power Consumption 275 W
Regulation FCC, CE, C-Tick, BSMI, KCC, UL,VCCI, RoHS and WEEE
System Requirement

750 W Power Supply (Suggestion)
1 x Available PCI-Express X16 Slot
2GB System Memory
1 x 8-pin AUX Power Connector
1 x 6-pin AUX Power Connector
32 -bit and 64-bit for Microsoft Windows 7, Windows 8, Windows 8.1 and Linux
DVD-ROM Drive (or Internet Access) for Software Installation

PGS Retail Pack

2x MiniDP to DVI Active Cable (Single-Link)
1x Dual Extender Bracket
Driver Disc
Quick Installation Guide
Sapphire PGS Mini Brochure
