GIGABYTE R272-P32

  • Custom assembly SKU: 14888366
Configured price $6389
Need Help?
Faq reset
GIGABYTE R272-P32, Ampere® Altra® Processors, SATA/NVMe, 2U Rackmount Server Computer
  • Processor: Altra - Q64-30
  • Memory: 2 x 8GB DDR4-3200
  • Graphics: None
  • Power Supply: 80 PLUS Platinum 800W
  • Storage: 240GB M.2 NVMe, 1TB HDD
You are configuring:
GIGABYTE R272-P32
Current System Price:
$6389
You are configuring:
GIGABYTE R272-P32
Current System Price:
$6389
Configure your System
Collapse all group
Hide Images
File Storage; Host an Intranet; File Access via VPN; Shared Internet Connection; Virtual Server
Server Platform

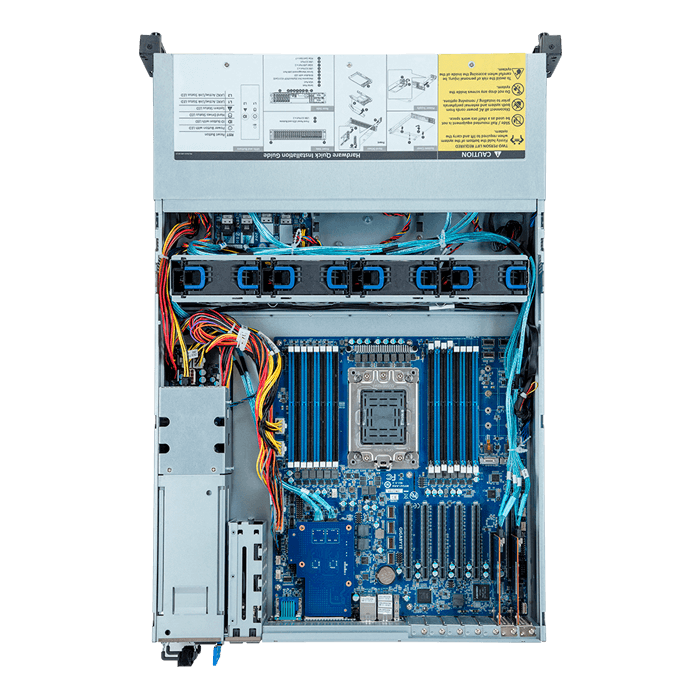

R272-P32, 2U, Ampere® Altra®, 8x 2.5" SATA+ 4x 2.5" NVMe Hotswap, 2x CNV3122, 16x DDR4, Dual 1GbLAN, 800W Rdt PSU
GIGABYTE R272-P32, 2U, Ampere® Altra®, 8x 2.5" SATA+ 4x 2.5" NVMe Hotswap, 2x CNV3122, 16x DDR4, Dual 1GbLAN, 800W Rdt PSU
Options: 2
Ampere® Altra Q64-30, 64-Cores Arm 2.8-3.0GHz Turbo, LGA 4926, 180W TDP, OEM Processor
Options: 32
8GB KSM32RS8/8HDR Single-Rank, DDR4 3200MHz, CL22, ECC Registered Memory
  • Memory Type - DDR4 DIMM
  • Error Correction - ECC
  • Registered (Buffered)
Heatsinks and CPU Coolers
CPU Heatsink(s) included
CPU Heatsink(s) included
Options: 11
240GB DC1000B, 2200 / 290 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, SED, M.2 2280 SSD
  • Form Factor - 2280
  • Interface - PCIe NVMe 3.0 x4
Options: 4
1TB Exos 7E2000 ST1000NX0303, 7200 RPM, SATA 6Gb/s, 4Kn, 128MB cache, 2.5" HDD
  • Advanced Format - 4Kn
  • Interface - SATA 6Gb/s
RAID Controller
Pre-Installed GIGABYTE CSTO180 (ASM1164) SATA 6Gb/s, 6-port, OCP 2.0 mezzanine slot, Host Bus Adapter
Pre-Installed GIGABYTE CSTO180 (ASM1164) SATA 6Gb/s, 6-port, OCP 2.0 mezzanine slot, Host Bus Adapter
Storage
Options: 12
Integrated Network Controller (Choose Upgrade)
Security Hardware
Power Protection
Warranty
