GeForce RTX™ 4090 WINDFORCE V2 24G, 2230-2520MHz, 24GB GDDR6X, Graphics Card

  • SKU: 16328988
  • Manufacturer: GIGABYTE
  • MPN: GV-N4090WF3V2-24GD
  • Availability: CONTACT US
Starting At
GeForce RTX™ 4090 WINDFORCE V2 24G, 2230-2520MHz, 24GB GDDR6X, Graphics Card

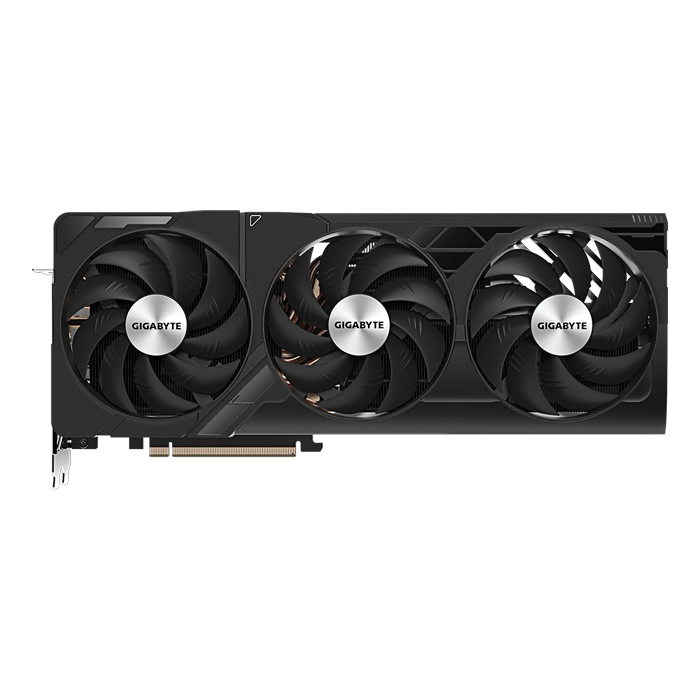

The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX™ 4090
  • Integrated with 24GB GDDR6X 384-bit memory interface
  • WINDFORCE cooling system
  • Dual BIOS
  • Protection metal back plate
  • Anti-sag bracket
Graphics Processing GeForce RTX™ 4090
Core Clock 2520 MHz
CUDA® Cores 16384
Memory Clock 21 Gbps
Memory Size 24 GB
Memory Type GDDR6X
Memory Bus 384 bit
Card Bus PCI-E 4.0
Digital max resolution 7680x4320
Multi-view 4
Card size L=331 W=136 H=55.5 mm
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 850W
Power Connectors 16 pin*1

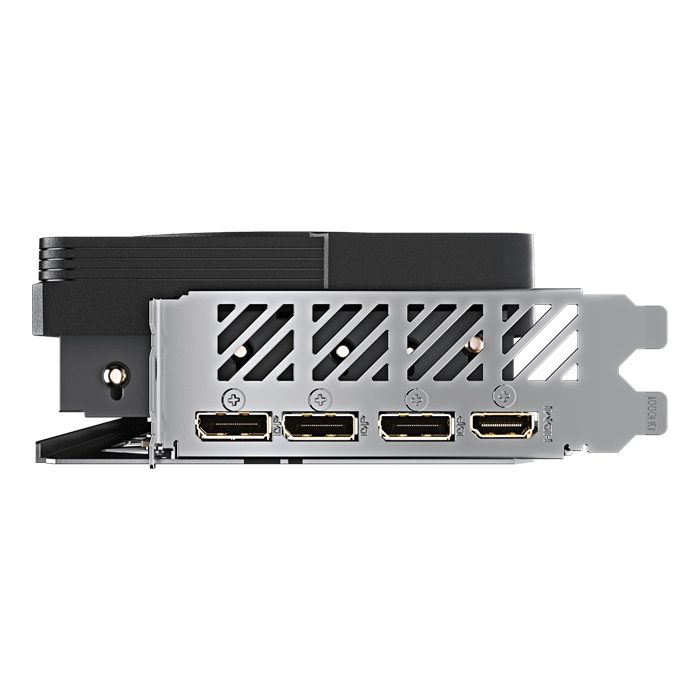

Output DisplayPort 1.4a *3
HDMI 2.1a *1
Accessories 1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
4. One 16-pin to four 8-pin power adaptor
