Home › Components › Core Components › Motherboards › Server and Workstation Motherboards

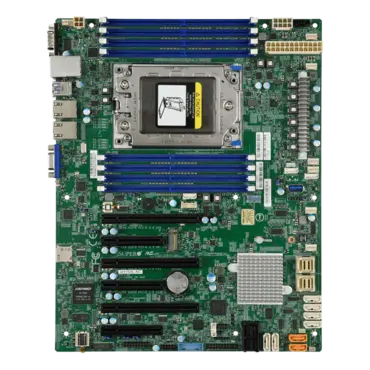

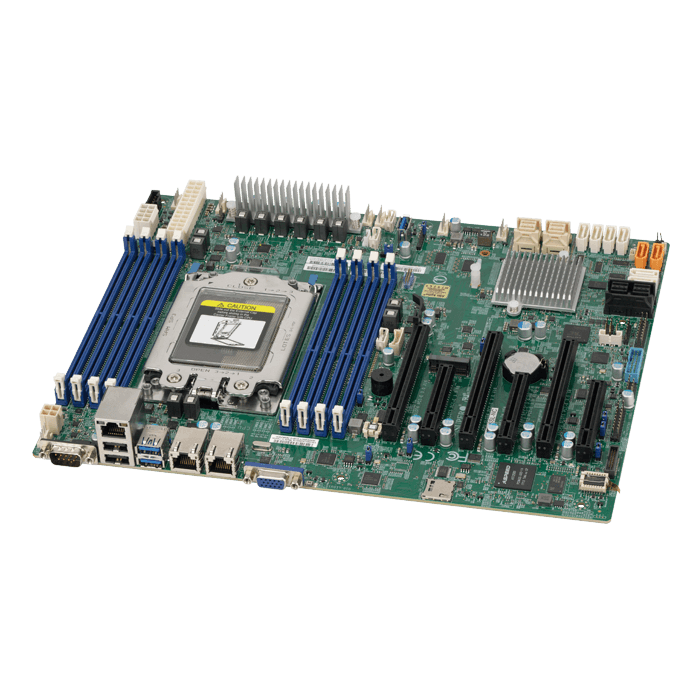

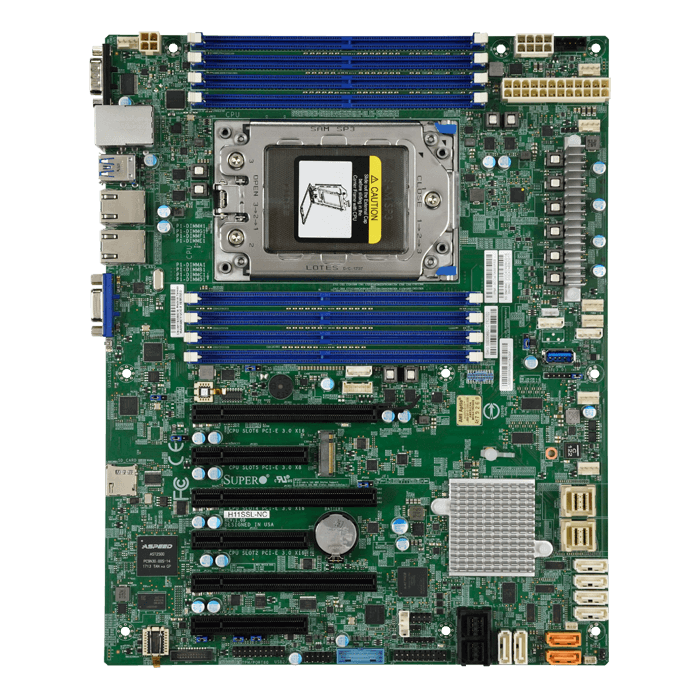

H11SSL-NC, AMD SoC, SP3, DDR4-2666 1TB LRDIMM / 8, SATADOM / 2, VGA, M.2, GbLAN / 2, ATX OEM

Quantity:

SKU: 11751896
Manufacturer: SUPERMICRO
MPN: MBD-H11SSL-NC-B
Availability: TEMPORARILY OUT OF STOCK

Starting At

$630.19

Product SKUs
MBD-H11SSL-NC	H11SSL-NC
MBD-H11SSL-NC-B	H11SSL-NC (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.5cm x 24.4cm)
Processor/Chipset
CPU	Single AMD EPYC™ 7000-series Processor Socket SP3
Cores	Up to 32 Cores
Chipset	System on Chip
System Memory
Memory Capacity	8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 8-channel memory bus
Memory Type	DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
SAS	Broadcom 3008 SAS3 (12 Gbps) controller RAID 0, 1, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 1GbE LAN via Intel® I210 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Input / Output
SAS	8 SAS3 (12 Gbps) ports
SATA	8 SATA3 (6 Gbps) ports
NVMe	2 PCI-E 3.0 NVMe x4 Internal Ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear + 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connector 1 TPM 2.0 header
Expansion Slots
PCI-Express	3 PCI-E 3.0 x8 3 PCI-E 3.0 x16
M.2	Interface: PCI-E 3.0 x4 Form factor: 2280, 22110 Key: M-key
Chassis ( Optimized for H11SSL-NC )
1U	SC512F-350B1 SC515-350 SC813MFTQC-350CB2 SC813MFTQC-R407CB
2U	SC213AC-R1K23LPB SC216BE1C4-R1K23LPB SC825TQC-R740LPB SC826BE1C4-R1K23LPB
3U	SC836BE1C-R1K23B
4U	SC745BAC-R1K28B2 SC846BE1C-R1K23B
System BIOS
BIOS Type	AMI 128Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment / Compliance
Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
