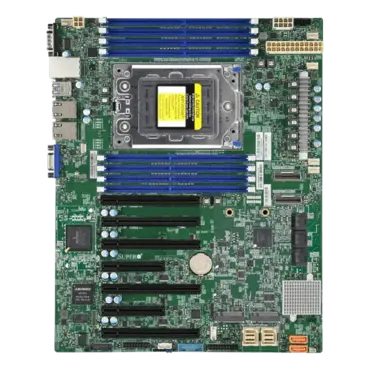

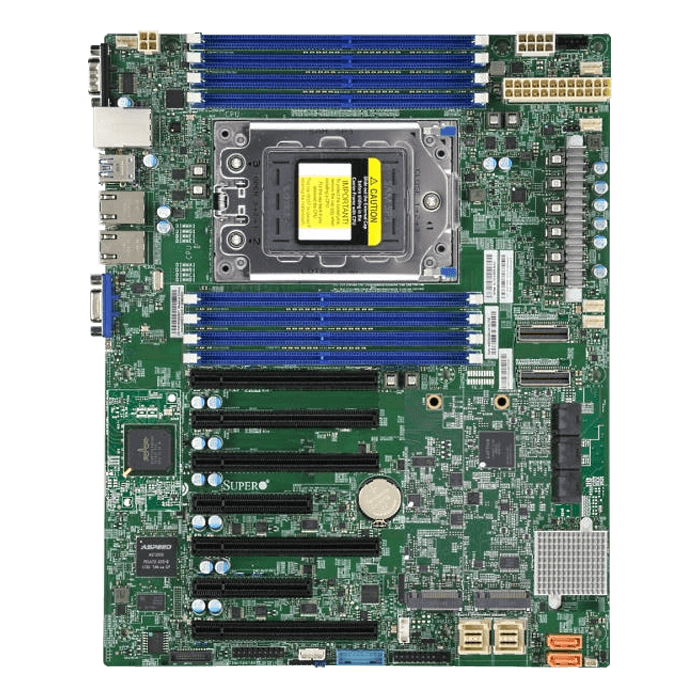

H12SSL-NT, AMD SoC, SP3, DDR4-3200 2TB RDIMM / 8, M.2 / 2, SlimSAS x8 / 2, SATA DOM / 2, VGA, 10GbLAN / 2, ATX Retail (PRE-ORDER)

Quantity:

SKU: 13517496
Manufacturer: SUPERMICRO
MPN: MBD-H12SSL-NT-O
Availability: LOW STOCK

Starting At

$617.53

Single AMD EPYC™ 7002 Series Processor
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
Dual 10GBase-T LAN via Broadcom BCM57416
ASPEED AST2500 BMC graphics
Up to 6 USB 3.0 ports (4 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring

Product SKUs
MBD-H12SSL-NT	H12SSL-NT
MBD-H12SSL-NT-O	H12SSL-NT (Retail Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.5cm x 24.4cm)
Processor/Chipset
CPU	Single AMD EPYC™ 7002 series Processor Socket SP3
Cores	Up to 64 Cores
Chipset	System on Chip
System Memory
Memory Capacity	8 DIMM slots Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	Dual 10GBase-T LAN via Broadcom BCM57416 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Input / Output
SATA/NVMe Hybrid	2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
LAN	Dual 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	6 USB 3.0 ports (4 rear + 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connectors 1 TPM 2.0 header
Expansion Slots
PCI-Express	5 PCI-E 4.0 x16 2 PCI-E 4.0 x8
M.2	Interface: 2 PCI-E 4.0 x4 Form factor: 2280, 22110 Key: M-key
System BIOS
BIOS Type	AMI 256Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment / Compliance
Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
