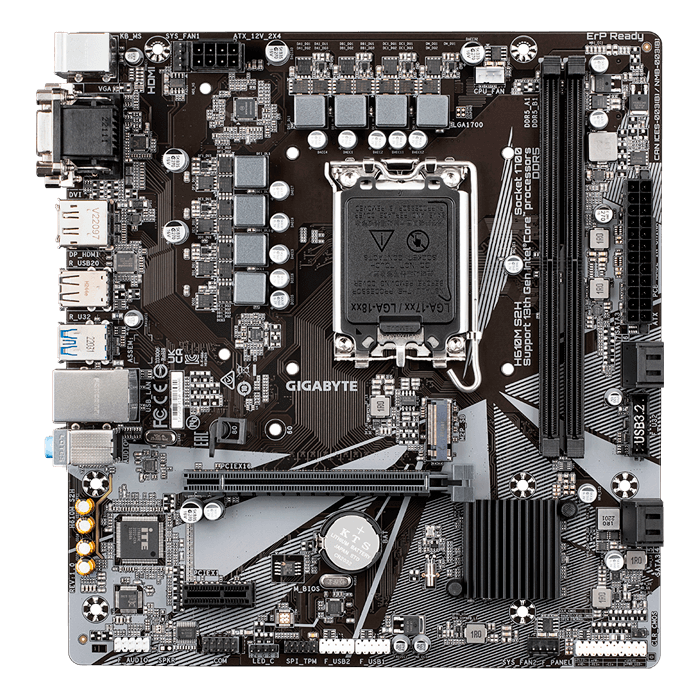

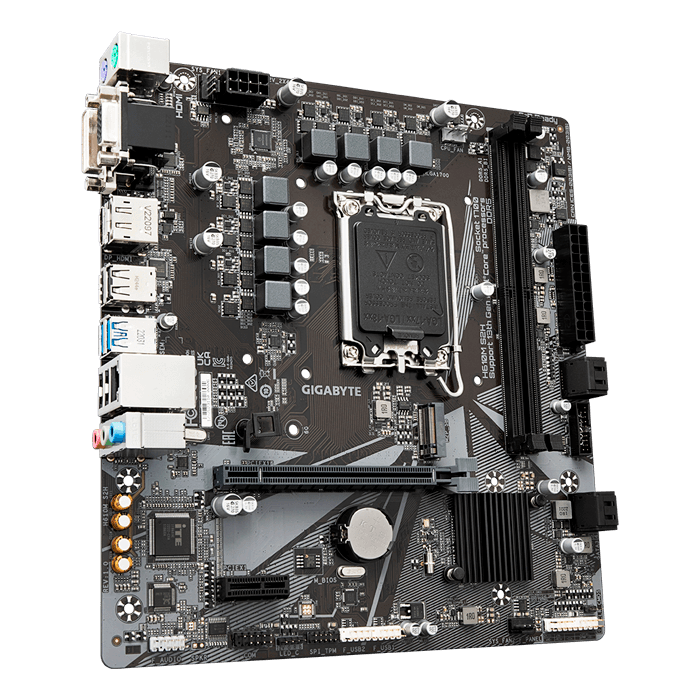

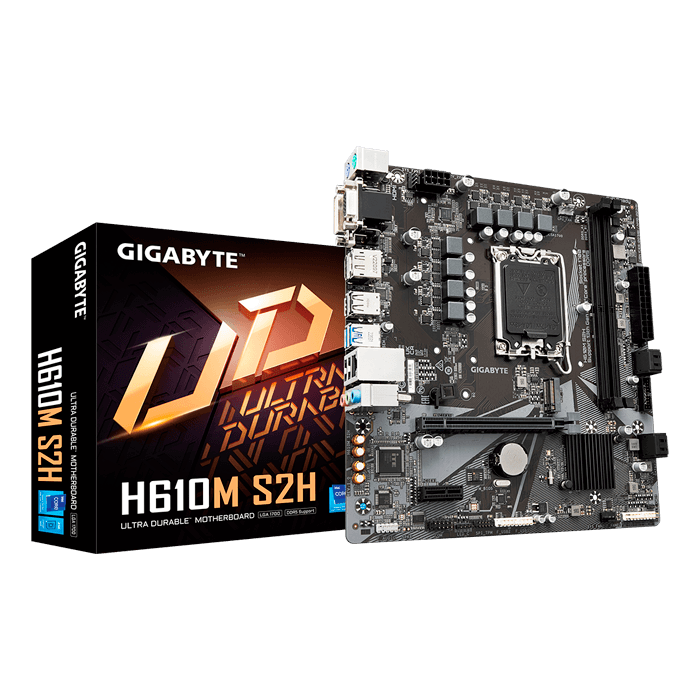

H610M S2H, Intel® H610 Chipset, LGA 1700, microATX Motherboard

Quantity:
  • SKU: 16076061
  • Manufacturer: GIGABYTE
  • MPN: H610M S2H
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$113.91
Quantity:
H610M S2H, Intel® H610 Chipset, LGA 1700, microATX Motherboard

GIGABYTE H610M S2H. Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • Supports 13th/12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
CPU
  • LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  • L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
  • Intel® H610 Express Chipset
Memory
  • 13th Generation Intel® Core™ i9/i7 processors:
    Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  • 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
    Support for DDR5 4800/4400 MT/s memory modules
  • 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • upport for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  • Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors
USB Chipset:
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

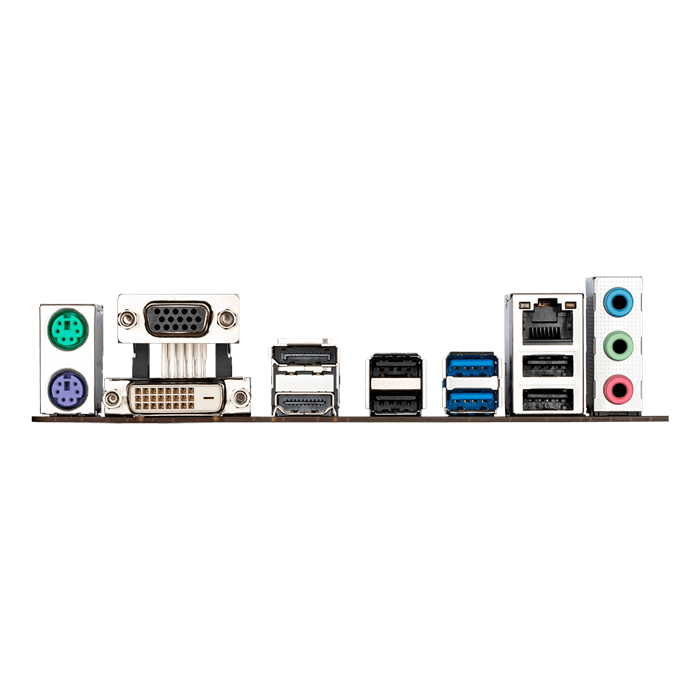

Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Smart Backup
    System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor
  • Micro ATX Form Factor; 23.0cm x 21.5cm
