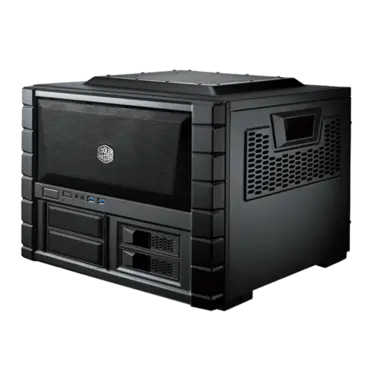

Packing full ATX motherboard support, steel reinforced carrying handles, modular features, portability, support for up to 3-way SLI/CrossFire, excellent cooling, and the ability to transform between a LAN Box and Test Bench, HAF XB EVO comes in as a part of a new generation of versatile and mobile-friendly cases.
Model | RC-902XB-KKN2 |
Materials | Steel, polymer, mesh front bezel |
Dimension | 442 x 330 x 423mm / 17.4 x 13 x 16.7inch (W x H x D) |
Net Weight | 8.2 kg / 18.1 lbs |
M/B Type | Mini-ITX, microATX, ATX |
5.25" Drive Bays | 2 |
3.5" Drive Bays | 4 |
2.5" Drive Bays | 4 (from 3.5" drive bays) |
I/O Panel | USB 3.0 x 2 (internal) Audio In & Out x 1 (supports HD Audio) |
Expansion Slots | 7 |
Air Cooling System | Top: 200mm fan x 1 (optional) Front: 120mm XtraFlo fan x 2 (installed; 1200 RPM, 17 dBA), or 140mm fan x 2 (optional) Rear: 12mm fan x 1 or 80mm fan x 2 (optional) |
Liquid Cooling System | Front: 240mm radiator x 1 (optional) Rear: 120mm radiator x 1 (optional) |
Power Supply Type | Standard ATX PS2 (The max. length of PSU: 180mm / 7.1 inch) |
Maximum Compatibility | VGA card length: 334mm / 13.1inch CPU cooler height: 180mm / 7.1inch |
