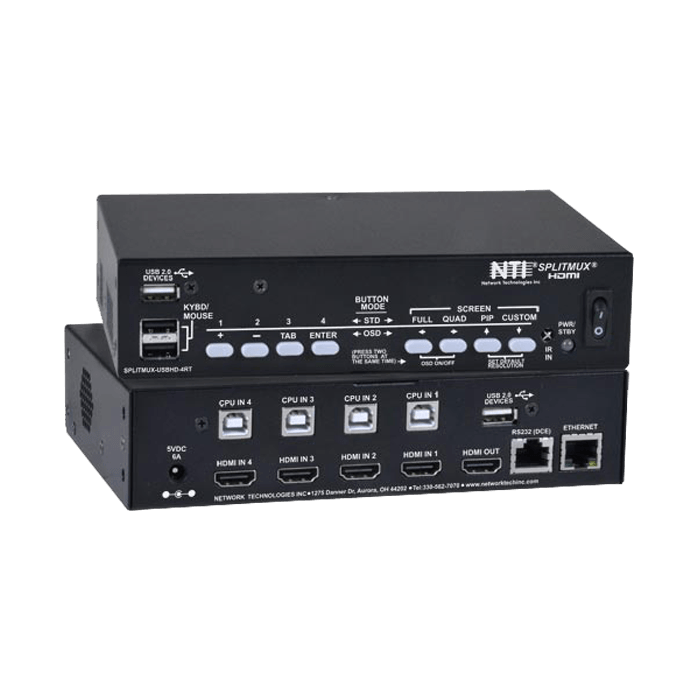

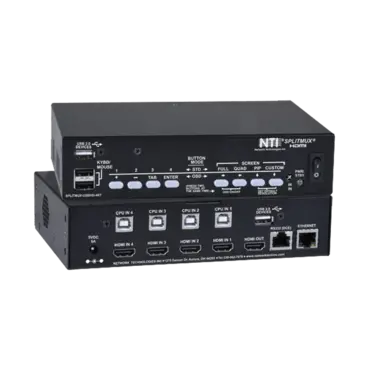

HDMI Quad Screen Multiviewer with Built-In KVM Switch, Desktop
Display video from four HDMI/DVI computers simultaneously on a single monitor
Quad, Picture in Picture, Full Screen, and Custom display modes
Supports 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
| Hosts |
- Four female HDMI connectors.
- Four female USB Type B connectors.
- Supports USB computers.
- Boots PCs, SUNs, and MACs simultaneously.
- Supported video input resolutions:
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200.
- Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- A DVI source can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the multiviewer.
- Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
- Supports HDCP 1.2
|
| Monitor |
- One female HDMI connector.
- Supported video output resolutions:
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200
- HDMI-embedded audio switching (four-channel stereo, non-mixing or one channel stereo, mixing).
- Switch audio independently of video from connected HDMI sources.
- Multiple audio sources can be simultaneously active in any display mode or preset layout.
- A DVI display can be connected by using the DVI-HD-xx-MM cable (not included). The cable does not pass audio to the display.
- Use a video + audio to HDMI video converter to pass embedded HDMI audio into the multiviewer (see Compatible NTI Products below).
- Latency:
- 50mS at 60Hz
- 60mS at 50Hz
- 100mS at 30Hz
- 120mS at 25Hz
- 125mS at 24Hz
- Supports HDCP 1.2
|
| Devices |
- Two female USB Type A connectors for keyboard and mouse.
- Keyboard and mouse are hot-pluggable.
- Two female USB Type A connectors for USB peripheral devices (printers, scanners, security cameras, flash drives, etc.)
- Connect any type of USB device - fully transparent USB connectors.
- Switch USB 2.0 devices between connected computers.
- In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
- Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
|
| Protocols |
- HTTP, HTTPS
- TCP/IP, DHCP, UDP, ARP
- IPV4
|
| Power |
- 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
- Power consumption: 20W
|
| Dimensions |
- SPLITMUX-USBHD-4RT (desktop)
- WxDxH (in): 7.35x4.98x1.75 (187x126x45 mm)
- SPLITMUX-USBHD-4RT-R (1RU rackmount) and SPLITMUX-USBHD-4RT-2R (1RU dual side-by-side rackmount)
- WxDxH (in):
- Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm)
- With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray)
- Can be mounted so that the front panel buttons are facing the front or back of the rack.
- Includes cable management tray.
|
| Environmental |
- Operating temperature: 32°F to 122°F (0°C to 50°C).
- Storage temperature: -22°F to 140°F (-30°C to 60°C).
- Operating and storage relative humidity: 17 to 90% non-condensing RH.
|
| Regulatory Approval |
|
| Warranty |
|
| Package Includes |
- Multiviewer
- One power adapter
- One DB9 female to RJ45 female adapter
- One 5ft CAT5e super flat cable
- One IR remote control
- Manual
|
| Compatible NTI Products |
- Combine NTI's video converters and splitters for multiple video sources and display signals
- DVI-D to HDMI Single Link Interface Cable
(DVI-HD-xx-MM).
- The cable does not pass audio to the multiviewer.
- DVI + Stereo Audio to HDMI Converter
(DVIA-HD-CNVTR-LC)
- DVI + Digital Audio to HDMI Converter
(DVI-HD-CNVTR)
- Composite Video + Audio to HDMI Converter (CVA-HD-LC)
- VGA + Audio to HDMI Converter Cable
(VGAA-HD-ULC)
- VGA/Component Video/HDMI Scaler/Converter (PCHD-HDMI-SCALER)
|
