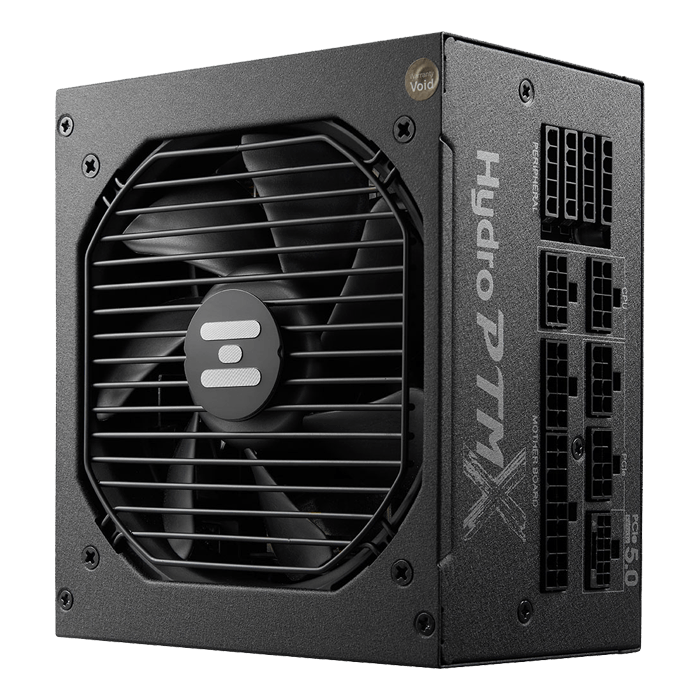

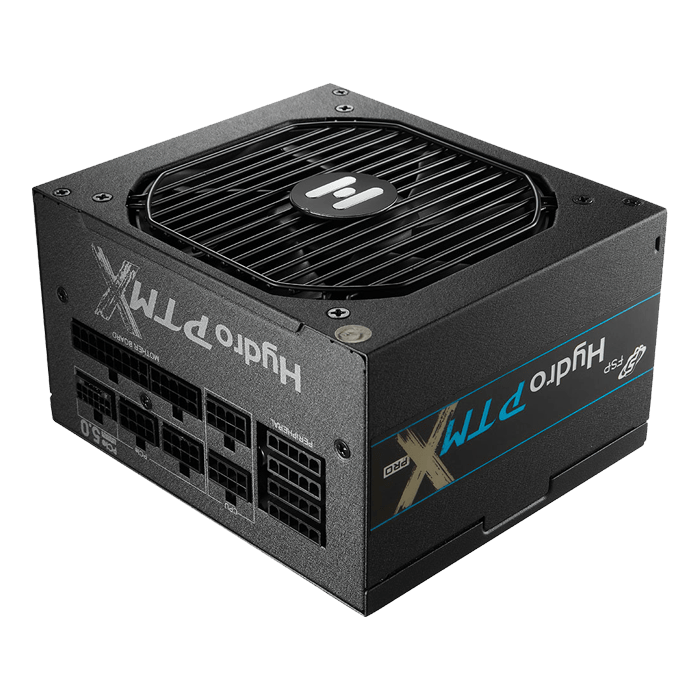

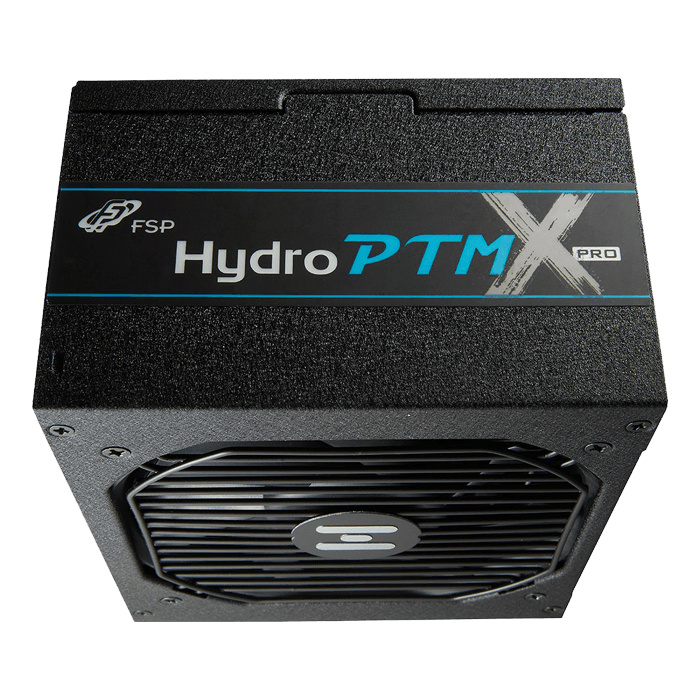

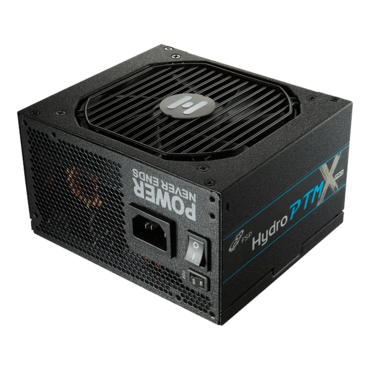

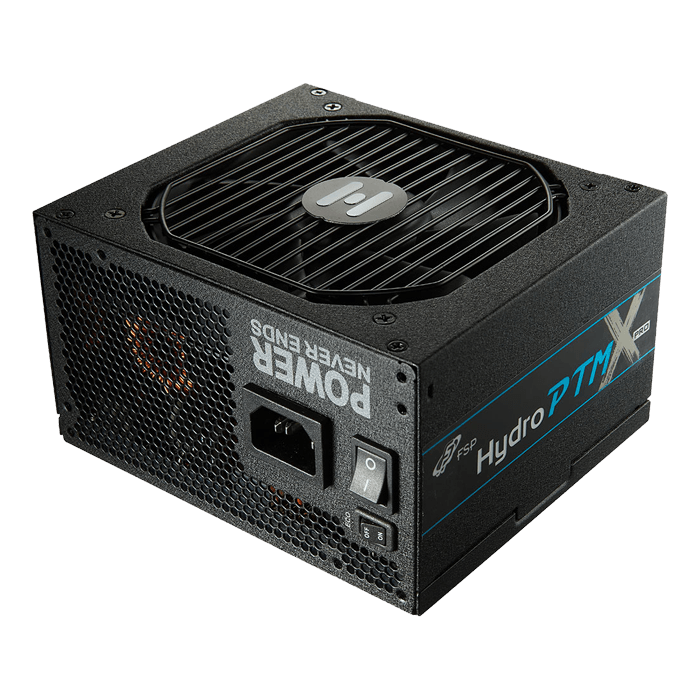

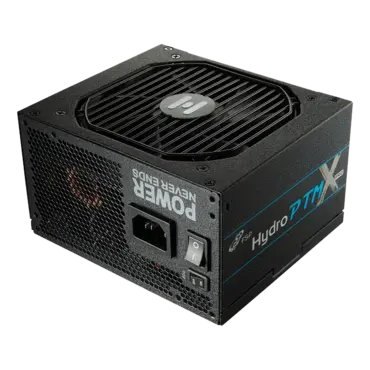

FSP HYDRO PTM X PRO series features 12VHPWR Connector and complies ATX3.0 with PCIe 5.0 is fully modular low noise power supplies with 130mm length deliver up to 1200W and high efficiency 80 Plus® Platinum power to your PC build. With the half-bridge LLC topology circuit design and 450V, 105°C Japanese main bulk capacitors, PC parts receive premium power input from HYDRO PTM X PRO series power supplies. Besides, for demanding PC upgrades, you can have all the connections needed from HYDRO PTM X PRO series power supplies
Model | HPT3-1000M,Gen5 |
Rated Output Power | 1000W |
Form Factor | ATX |
80 PLUS Certification | Platinum |
Input Voltage | 100-240V ; 200-240V |
Input Current | 13-6A ; 6A |
Input Frequency | 50-60Hz |
PFC | Active PFC |
Efficiency | 92% |
Fan Type | FDB fan, 120mm |
Dimensions(L x W x H) | 130×150×86 mm |
Operation Temp. | 100,000 Hrs |
Protection | OCP, OVP, OPP, SCP, OTP |
