IEEE 802.11b/g/n Wi-Fi with Bluetooth 3.0 with Highspeed class II Combo Half Mini Card

Quantity:
  • SKU: 9786445
  • Manufacturer: AzureWave
  • MPN: AW-NB057H
  • Availability: LOW STOCK
Starting At
$14.89
Quantity:

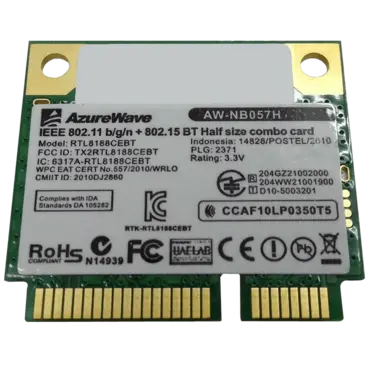

IEEE 802.11b/g/n Wi-Fi with Bluetooth 3.0 with Highspeed class II Combo Half Mini Card

The AW-NB057H IEEE 802.11 b/g/n PCIE WIFI with Bluetooth 3.0 + HS class II combo module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. It combines with Bluetooth 3.0 + HS class II and provides a complete 2.4GHz Bluetooth system which is fully compliant to Bluetooth v3.0 HS and v2.1 that supports EDR of 2Mbps and 3Mbps for data and audio communications. It enables a high performance, cost effective, low power, compact solution that easily fits onto two sides of the PCI Express and USB Combo half mini Card.

Compliant with the IEEE 802.11b/g/n standard, AW-NB057 uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies.

Compare to 802.11g technology, 802.11n standard makes big improvement on speed and range.

Faster Speed: WLAN up to 150Mbps data rate.

  • High speed wireless connection up to 150 Mbps for Wi-Fi
  • 2 antennas to support 1(Transmit) x 1(Receive) technology and Bluetooth
  • Support WLAN TX/RX diversity function
  • WCS(Wireless Coexistence System)
  • Low power consumption and high performance
  • Enhanced wireless security
  • Fully qualified Bluetooth v 3.0+ High speed system
  • Enhanced Data Rate(EDR) compliant for both 2Mbps and 3Mbps supported
  • Fully speed operation with Piconet and Scatternet support
  • Electrical compliant to USB1.1&2.0
