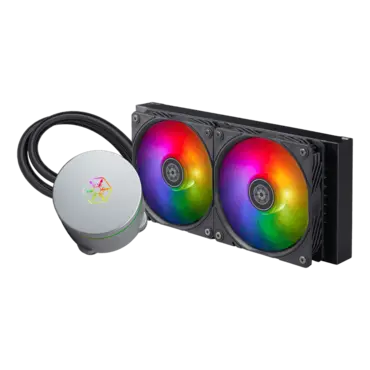

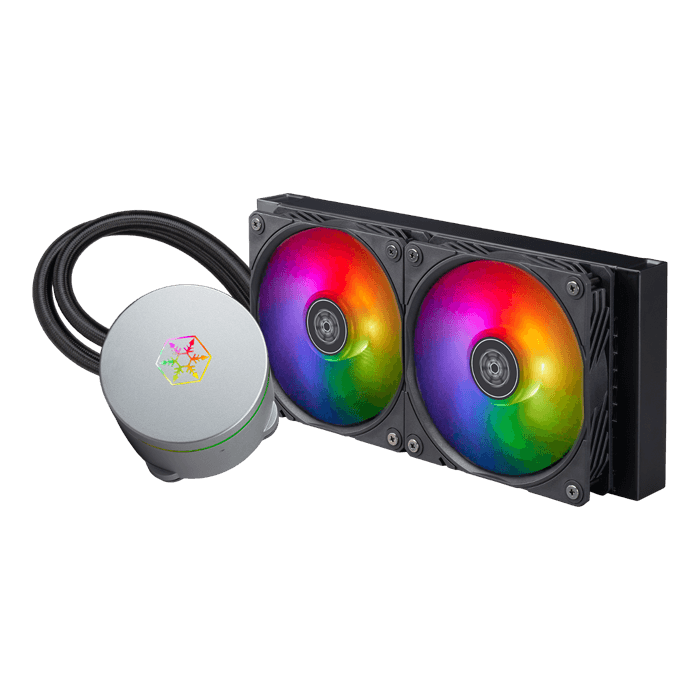

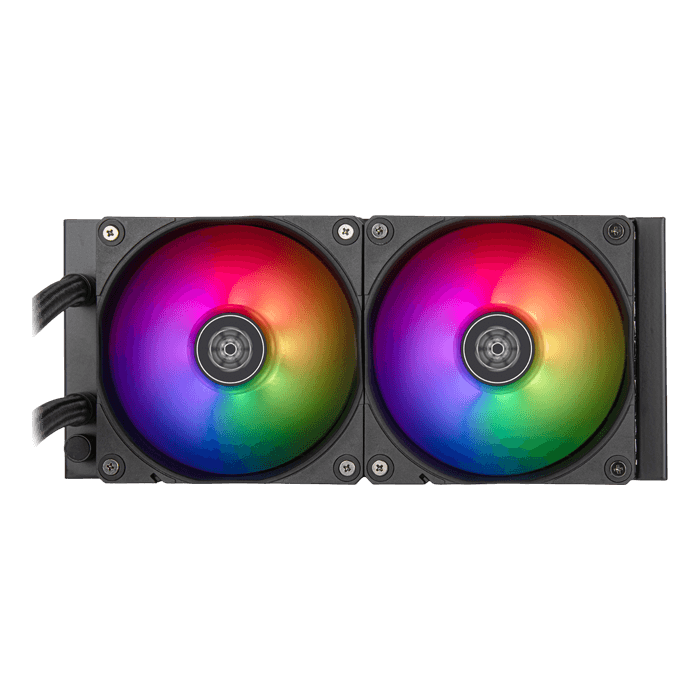

IceMyst 240, 240mm Radiator, Liquid Cooling System
Aesthetically pleasing lighting effects
IceMyst series features integrated ARGB lighting effects on the water block and fans, providing tasteful internal system lighting.

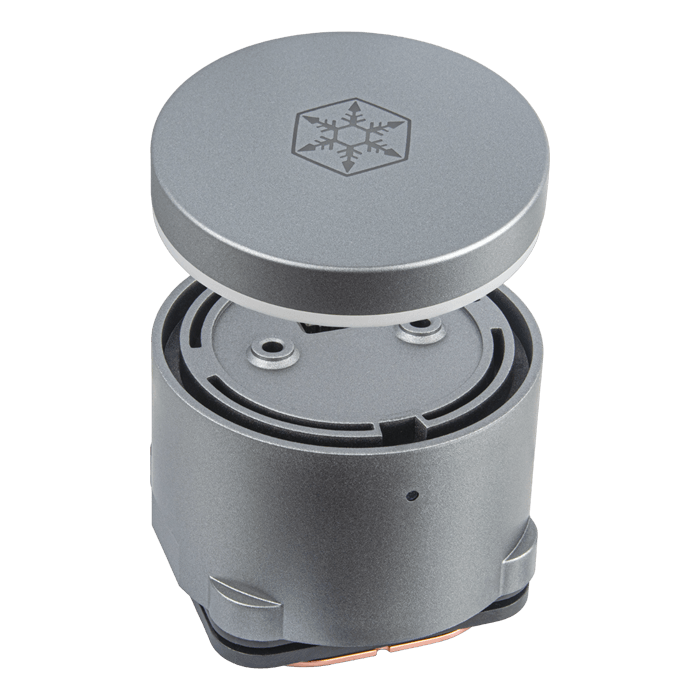

- SilverStone's newly designed expandable water block features a seamless 360° rotatable top cover
- Modular cabling design greatly simplifies connection and management of cables

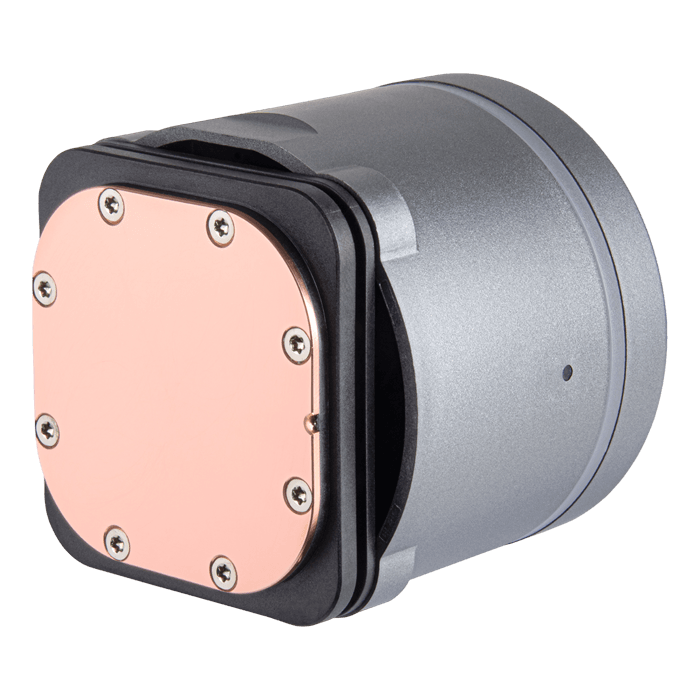

- Slight-convexed copper baseplate ensures firm contact with the processor

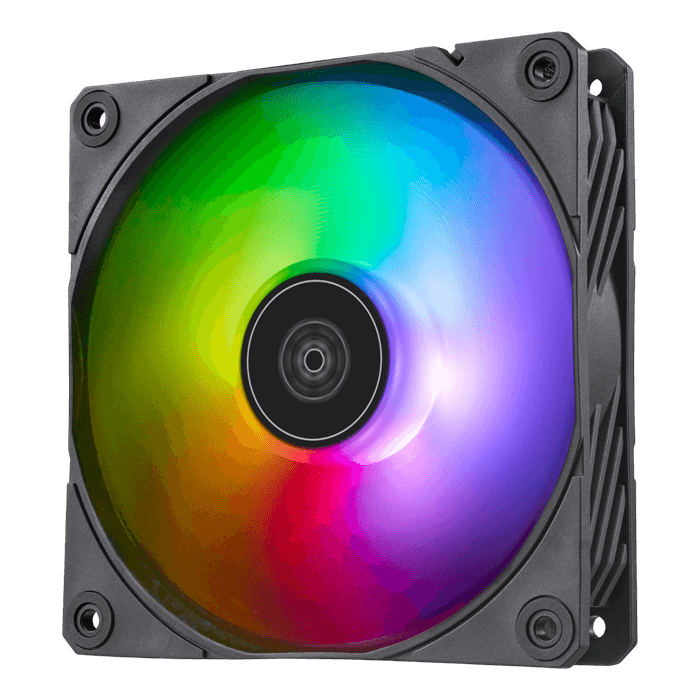

- Radiator-optimized cooling fans with tremendous airflow and static pressure figures
- Three-phase, six-pole motor design
- ARGB controller included with 10 lighting modes, along with adjustable brightness and color-changing speed
Model No. | SST-IM240-ARGB |
Application | Intel LGA 115X/1200/1700/2011/2066 AMD socket AM5/AM4 |
Water block | |
Dimension | 73mm (W) x 70mm (H) x 84mm (D) 2.87" (W) x 2.76" (H) x 3.31" (D) |
Material | Copper base with plastic body |
Pump | |
Motor speed | 3,100 ±10% RPM |
Rated Voltage | 12V |
Rated Current | 0.38A |
Connectors | 2510 - 3 pin |

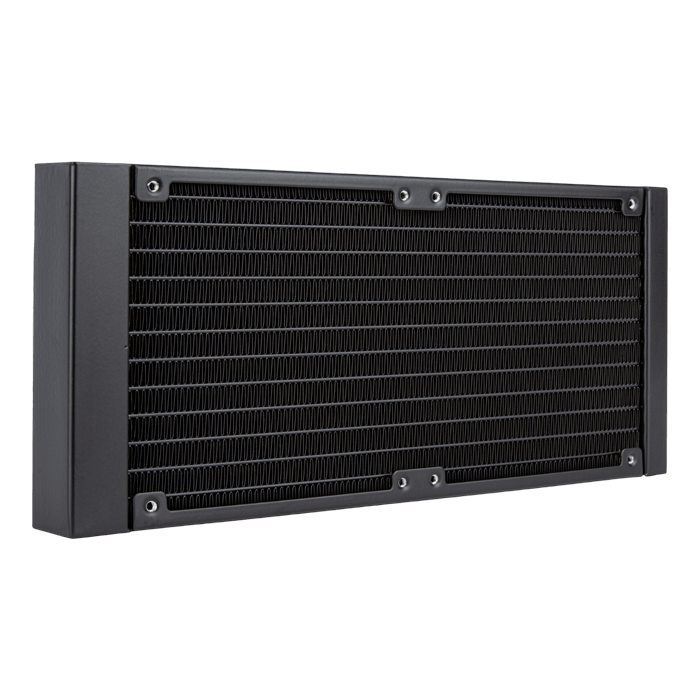

Radiator | |
Dimension | 120mm (W) x 28mm (H) x 277mm (D) 4.72" (W) x 1.1" (H) x 10.91" (D) |
Material | Aluminum |
Tube | |
Length | 460mm |
Material | Rubber |
Fan | |
Dimension | 120mm (W) x 25mm (H) x 120mm (D) 4.72" (W) x 0.98" (H) x 4.72" (D) |
Speed | 500 ~ 2,200 RPM |
Noise level | 12.1 ~ 33.1 dBA |
Rated Voltage | 12V |
Max airflow | 75.74 CFM |
Max air pressure | 3.4mmH 2 O |
Connector | 4 pin PWM & 4-1 pin ARGB (5V LED) |
Remark | Remark * Please ensure that the control box and the RGB port on the motherboard you wish to connect are compatible with the RGB port definition of the IM420-ARGB. An incorrect connection may result in malfunctions or damage. |
