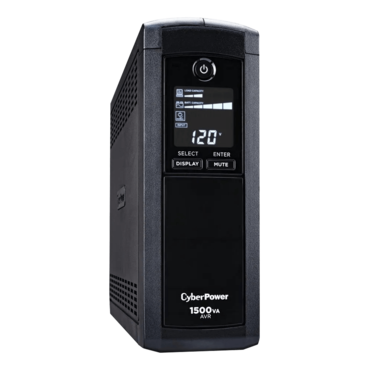

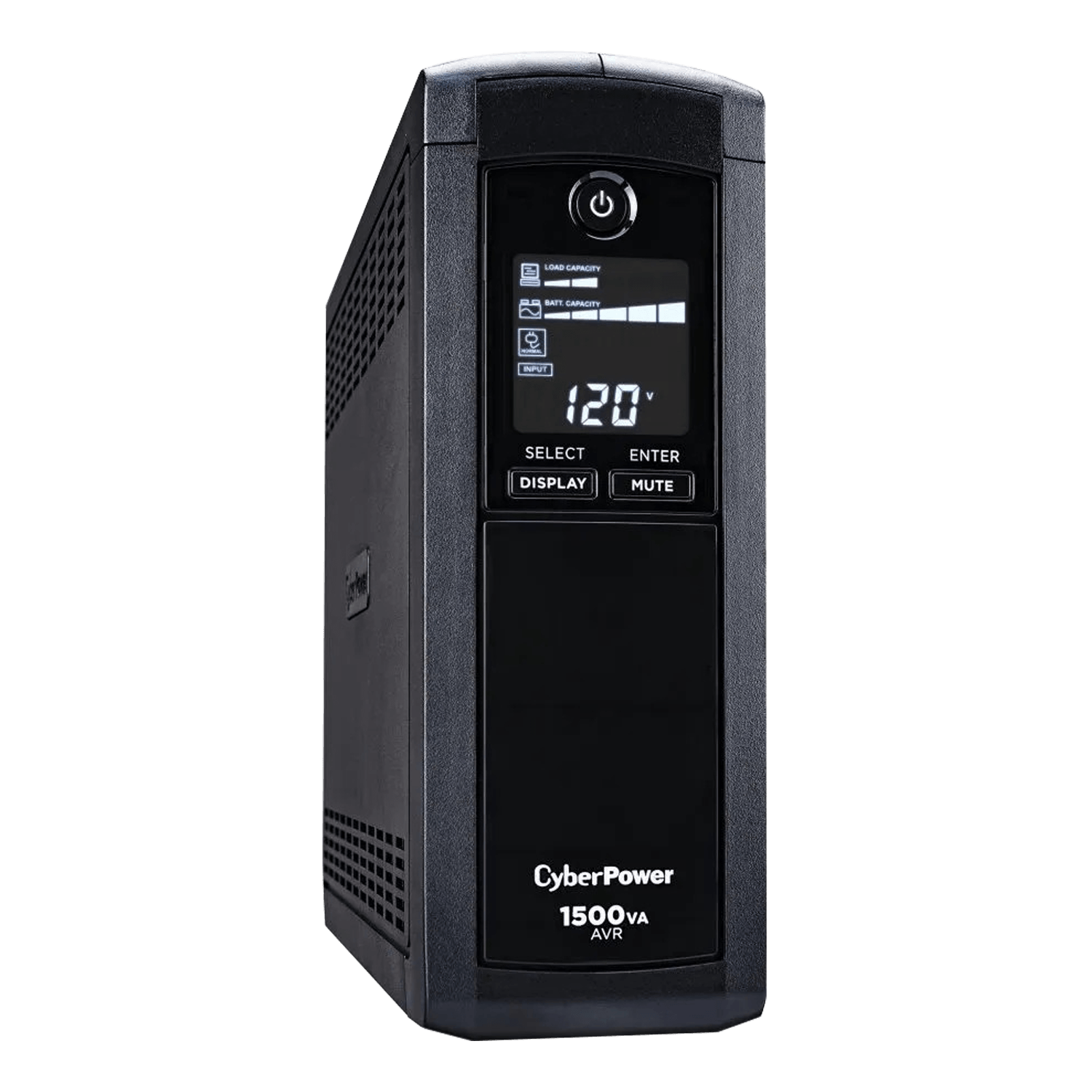

Intelligent LCD CP1500AVRLCDTAA, LCD, 1500 VA/900 W, Sine Wave, Tower UPS - TAA Compliant
Quantity:
- SKU: 13494048
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP1500AVRLCDTAA
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$219.95
- Capacity:1500 VA / 900 W
- Topology:Line Interactive
- Waveform:Simulated Sine Wave
- Output:120 VAC ± 5%
- Plug type & cord:NEMA 5-15P, 6ft. cord
- Communication:USB, Serial
- Data line protection:Ethernet, Coaxial
- Management software:PowerPanel® Personal
- ENERGY STAR® certified:Yes
- Warranty:3 year
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X2 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 3 min |
| Runtime at Half Load | 12 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 90 VAC – 142 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Single Boost |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |

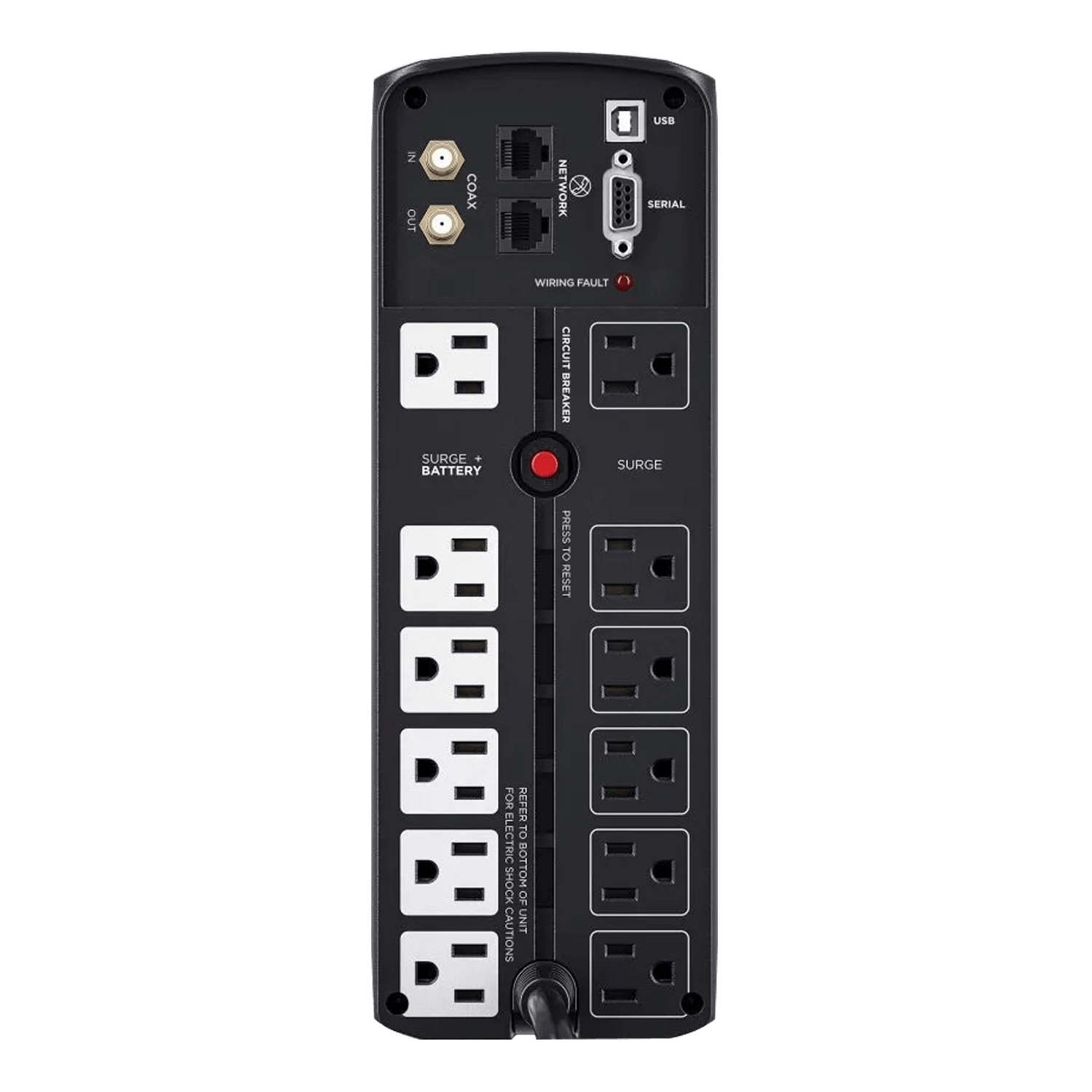

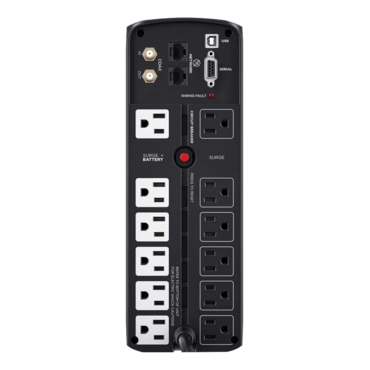

| Outlet Type | 12 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 6 |
| Outlets – Total | 12 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| Under/Over-Voltage Correction | +10% |
| VA | 1500 VA |
| Watts | 900 W |
| Surge Protection & Filtering | |
| Coax Protection RG6 |
1 in 1 out |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1500 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On Wiring Fault |
| Management Cable | USB Cable |
| Serial Port | 1 Dry Contact |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 27.94 x 35.56 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.9 x 11 x 14 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 279 x 356 (mm) |
| Physical Weight (kg) | 11.34 |
| Physical Weight (lb) | 25 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 11.79 |
| Shipping – Weight (lb) | 26.0 |
| Shipping Dimensions – (WxHxD) (cm) | 20.07 x 37.47 x 44.45 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.9 x 14.75 x 17.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 200.66 x 374.65 x 444.5 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 cUL 107 5th FCC Class B |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U2A |
| Product Warranty | 3 Year Limited Warranty |
