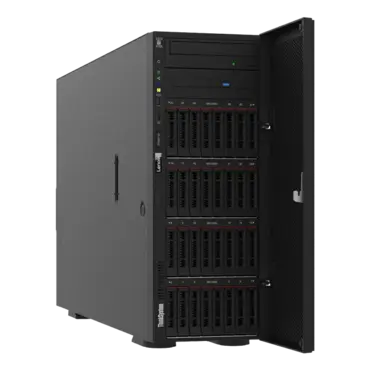

Description: Lenovo ThinkSystem ST650 V2 7Z74A01QNA, 3rd Gen. Intel® Xeon® Scalable Processors, SATA/SAS/NVMe, 4U Rackmount / Tower Server Computer
(configuration # 14609724) QTY: 1 Unit Price:$XXXX Total Price:$XXXX
or as low as $XXX/month
Share your Configuration
Email successfully sent
Let us Help You
Need Expert Advice?
Our technical support staff is here to help in any way that they can! please fill out the form below and a friendly technician will contact you.
Email a Quote
Email successfully sent
or as low as $XXX/month
7Z75 - 1 year warranty
7Z74 - 3 year warranty
Tower or 4U Rack
One or two third-generation Intel Xeon Scalable processor (formerly codenamed "Ice Lake"). Supports processors up to 36 cores, core speeds of up to 3.6 GHz, and TDP ratings of up to 250W.
Intel C621A "Lewisburg" chipset, part of the platform codenamed "Whitley"
32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported. DIMM slots are shared between
standard system memory and persistent memory. DIMMs operate at up to 3200 MHz at 2 DPC.
Supports up to 16x Intel Optane Persistent Memory 200 Series modules (8 per processor) installed in the DIMM slots. Persistent memory (Pmem) is installed in combination with system memory DIMMs.
With RDIMMs: Up to 4TB by using 32x 128GB 3DS RDIMMs
With Persistent Memory: Up to 5TB by using 16x 64GB 3DS RDIMMs and 16x 256GB Pmem modules (2.5TB per processor)
ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays
2.5-inch drive bays:
Up to 32x 2.5-inch hot-swap bays (16x NVMe) plus 2x 5.25-inch media bays
3.5-inch drive bays:
Up to 16x 3.5-inch hot-swap bays (8x NVMe) (no media bays)
Up to 12x 3.5-inch hot-swap bays (8x NVMe) plus 2x 5.25-inch media bays
Up to 12x 3.5-inch simple-swap bays plus 2x 5.25-inch media bays
Internal drives for OS boot or drive storage:
Internal M.2 module supporting up to two M.2 drives
Maximum internal storage
122.88TB using 32x 3.84TB 2.5-inch SAS/SATA SSDs
61.44TB using 16x 3.84TB 2.5-inch NVMe SSDs
76.8TB using 32x 2.4TB 2.5-inch HDDs
256TB using 16x 16TB 3.5-inch HDDs
61.44TB using 16x 3.84TB 3.5-inch SAS/SATA SSDs
30.72TB using 8x 3.84TB 3.5-inch NVMe SSDs
12x onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID)
Up to 8x onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs)
The server also supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. See the location of the Internal RAID adapter (cabled) in the Internal view of
All nine slots are mounted on the system board. The optional slot, Slot 8, is enabled through a cable, routed from one of the PCIe NVMe onboard connectors. See the I/O expansion section for details.
Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs
Front: 1x USB 3.1 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management)
Rear: 2x 10GBASE-T RJ45 Ethernet ports, 4x USB 3.1 G1 (5 Gb/s) ports, 1x VGA video port, 1x DB-9 COM serial port, 1x 1GbE RJ-45 systems management port for XCC remote management, External diagnostics port
Internal: 1x USB 3.1 G1 connector for operating system or license key purposes
Up to 4x single-rotor or dual-rotor hot swap 92 mm fans, configuration dependent. Fans are N+1 redundant. One additional fan integrated in each power supply.
Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W and 2400 W AC options, supporting 220 V AC. 750 W and 1100 W options
also support 110V input supply. In China only, all power supply options support 240 V DC.
G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Drives, power supplies, and fans.
Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller (XCC) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins,
and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced and Enterprise to enable remote control functions.
Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0. In China only, optional Nationz TPM 2.0. Optional lockable front security door and optional chassis intrusion switch.
Operating systems supported
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics.
Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support
Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Width: 175 mm (6.9 in.), height: 462 mm (18.2 in.), depth: 734 mm (28.9 in.). See Physical and electrical specifications for details.
2.5-inch configuration: 39.28 kg (86.60 lb) maximum
3.5-inch configuration: 46.23 kg (101.92 lb) maximum
