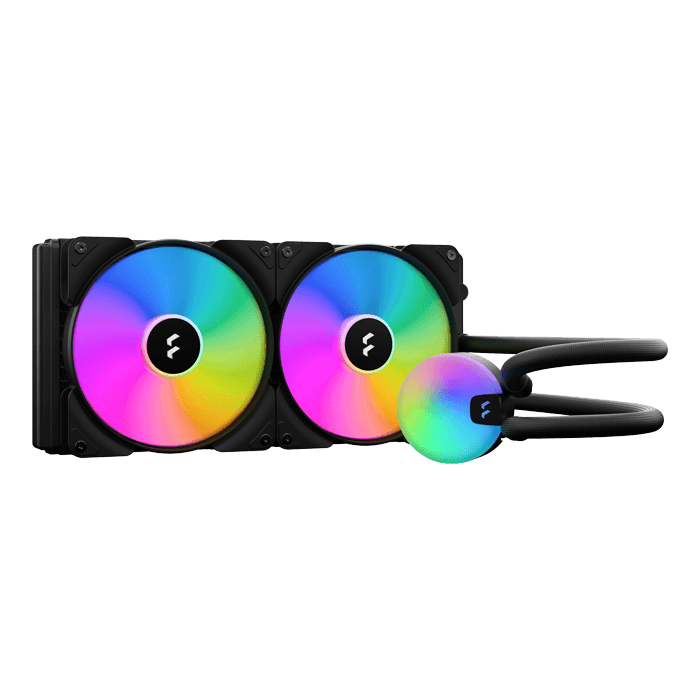

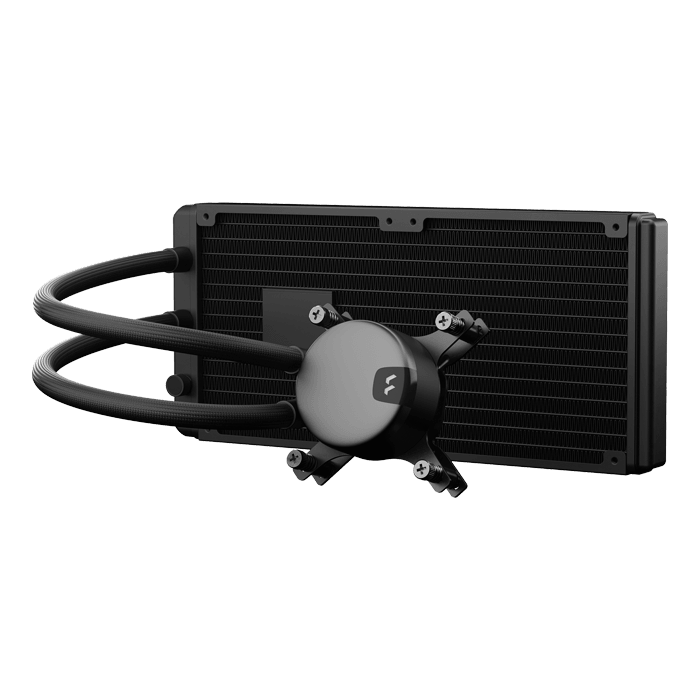

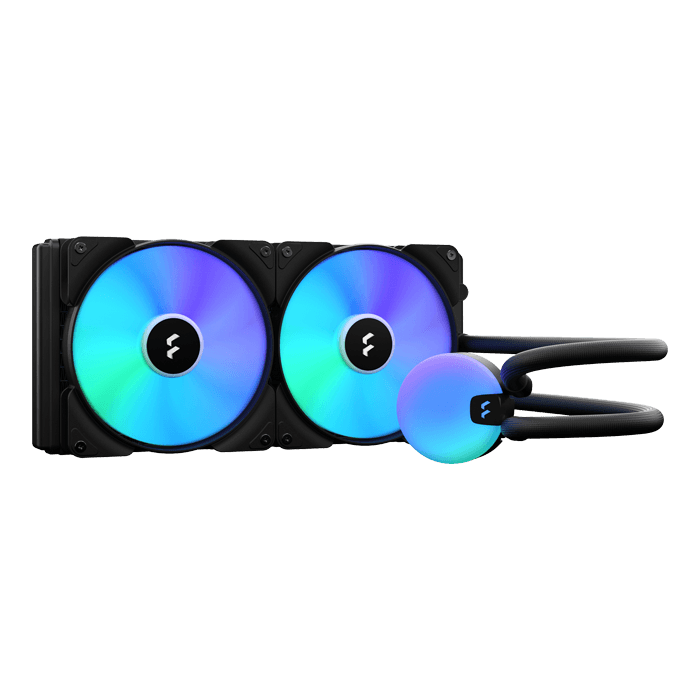

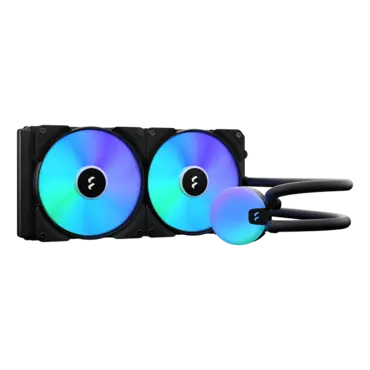

Lumen S28 RGB, 280mm Radiator, Liquid Cooling System
Quantity:
- SKU: 15892799
- Manufacturer: Fractal Design
- MPN: FD-W-L1-S2812
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$135.69
Lumen S28 RGB, 280mm Radiator, Liquid Cooling System
Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Compatible with LGA 1700 and AM5
| General specifications | |
| Sockets supported (Intel) | LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets supported (AMD) | AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version |
| Cold plate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree Elbow |
| Fittings, radiator side | Barbed fitting |
| Block height | 43mm |
| Block measurements (with fittings) | 79 x 67 mm |
| Block diameter (main block body) | 67 mm |
| Fan specifications | |
| Fan type | Aspect 14 RGB PWM |
| Rotational speed | 500–1700 RPM |
| Fan bearing | Rifle bearings |
| Fan PWM control | Yes |
| Fan acoustical noise | <10–35.5 dBA |
| Fan maximum air flow | 20-78 CFM |
| Fan maximum static pressure | 0.3–2.05 mm H2O |
| Fan input voltage | 12V |
| Fan maximum input current | 0.24A |
| Fan MTTF | 90,000 hours |
| Pump specifications | |
| Rotational speed | 4000 ± 10% RPM |
| Bearing type | Ceramic |
| PWM control | No |
| Acoustical noise (full speed) | 22 dBA |
| Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.34 A |
| MTTF | 50 000 hours |
| Radiator specifications | |
| Radiator dimensions | 313 x 140 x 27 mm |
| Radiator housing material | Aluminum |
| Radiator fin material | Aluminum |
| Radiator fan screw threads | 6-32 |
| Other | |
| Package contents | CPU Cooler Assembly, 2x Aspect 14 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
| Package dimensions | 369 x 183 x 171 mm |
| Package weight | 2.00kg |
| EAN | 7340172705949 |
| UPC | 843276105945 |
| JAN | 4537694317627 |
| Product Code | FD-W-L1-S2812 |
