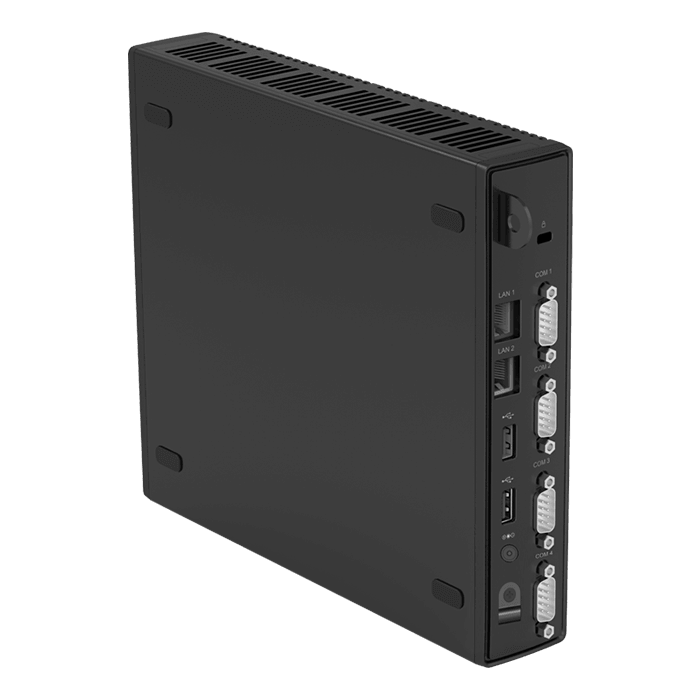

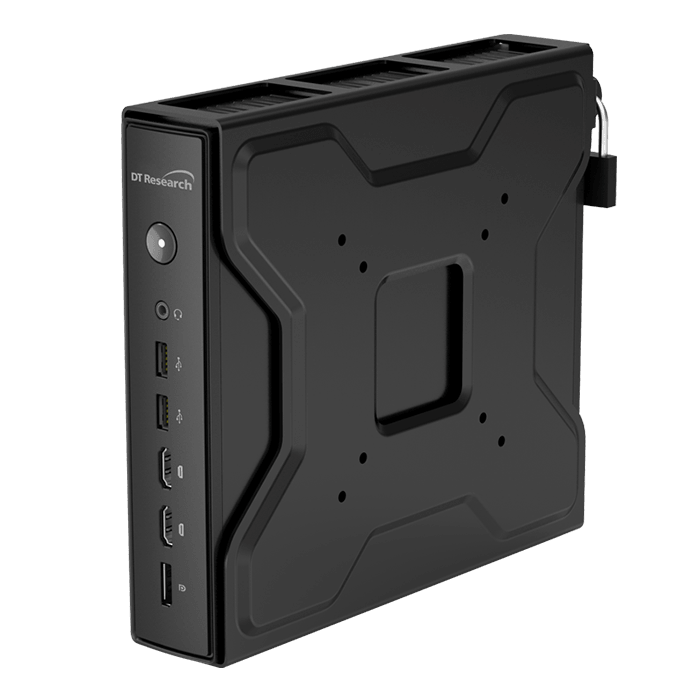

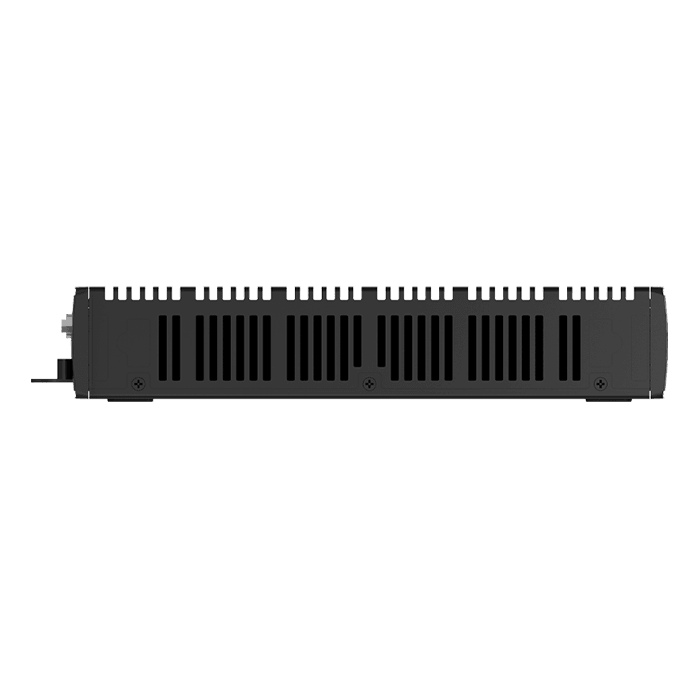

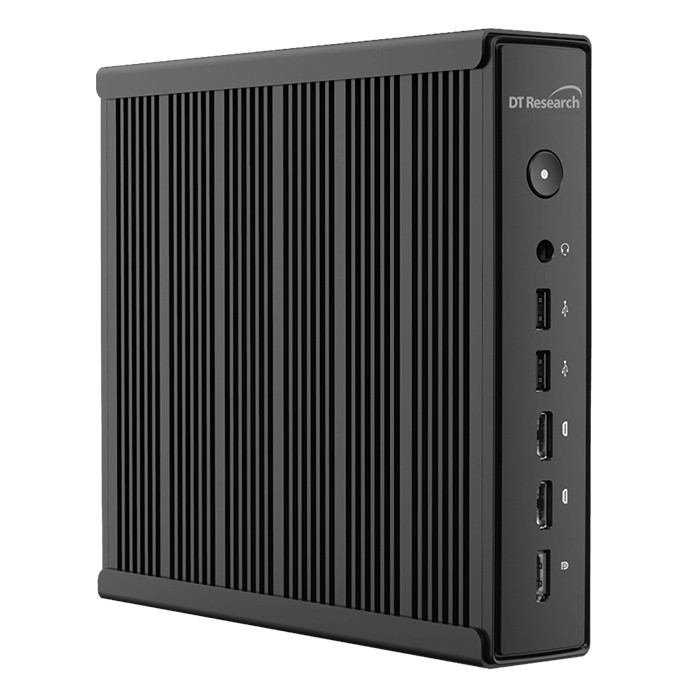

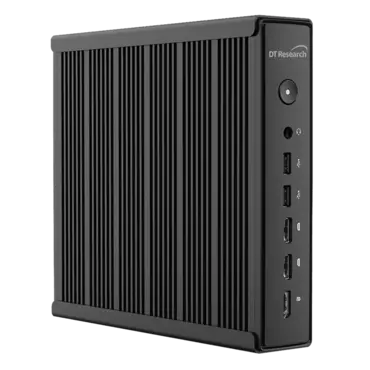

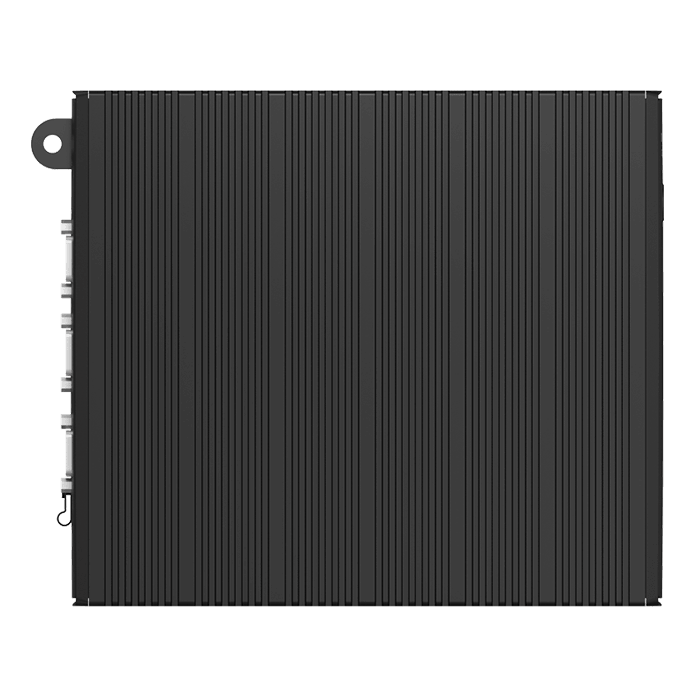

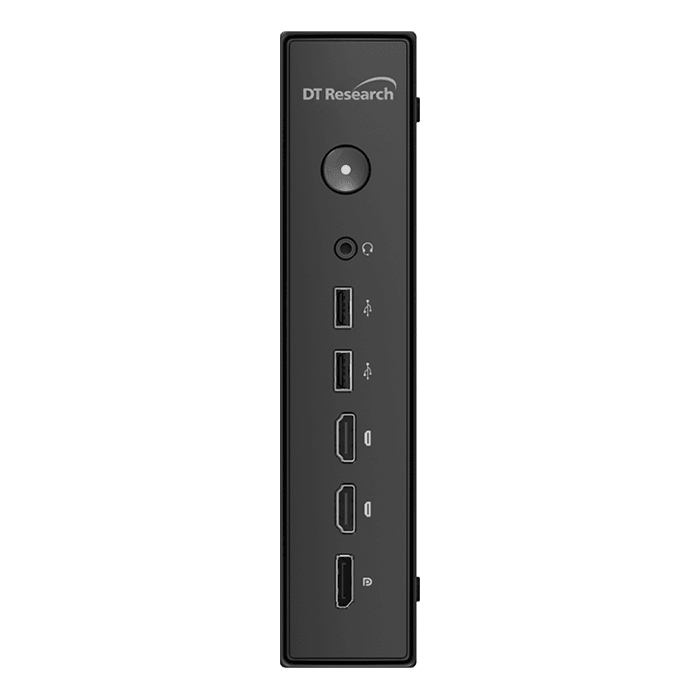

MA1393CS Multi Screen Appliance, Intel® 10th Gen Core™ i5 6 cores, 16GB Memory, 256GB Storage, Microsoft® Windows® 10 IoT Enterprise
Quantity:
- SKU: 15252339
- Manufacturer: DT RESEARCH
- MPN: MA1393CS-I5
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,194.84
- Intel® Core™ i5 processor
- Slim, robust and fanless design
- Microsoft® Windows® 10 IoT Enterprise operating system
- Drives up to 3 screens
- Support for multiple zones of content
- Content flexibility for many multimedia file formats
- Real-time or scheduled content playback
- Flexible screen layout options with multiple zones and layers
- Automatic content download recovery
| System | |
| CPU | Intel® 10th Generation Core™ i5, 6 cores |
| RAM | 16GB |
| Storage | 256GB |
| Operating System | Microsoft® Windows® 10 IoT Enterprise operating system |
| Max. Display Connection | 3 screens |
| Display Resolution | 3840 x 2160 @ 60Hz (x1), 1920 x 1080 @ 60Hz (x3), 3840 x 2160 @ 30Hz (x3) |
| Video Performance? | 1080P x 3 @ 12mbps/30fps; 2160P x 2 @ 60mbps/30fps |

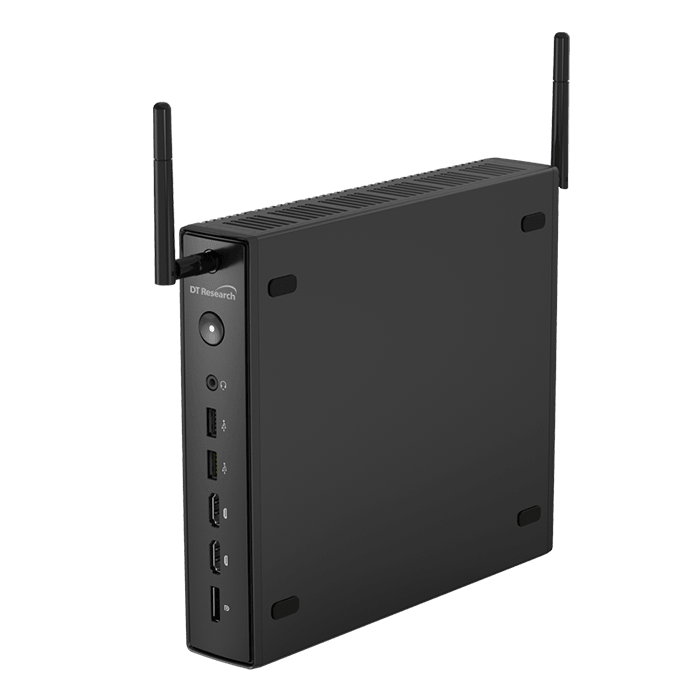

| Network Interface | 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11ax, 2.4GHz/ 5GHz dual band (optional) |

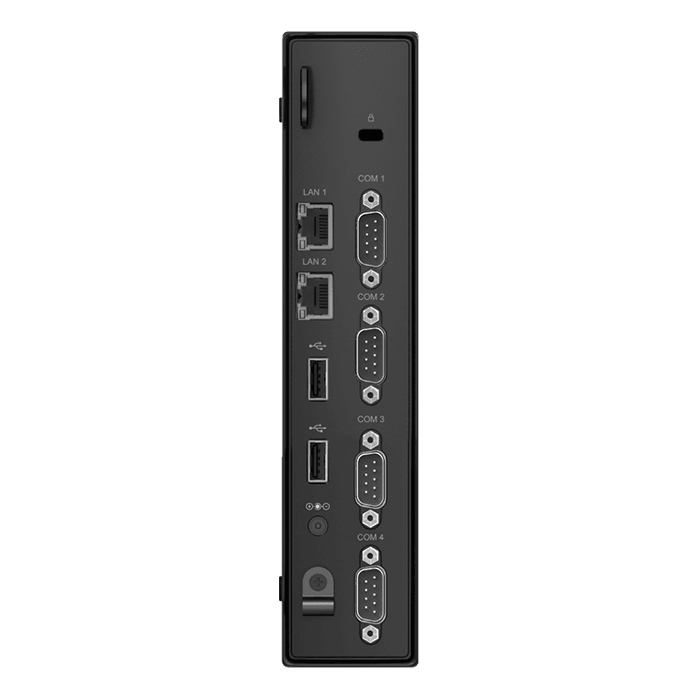

| I/O Ports | |
| Video-out | 2 HDMI (1.4), 1 DisplayPort (1.2) |
| Audio Jack | 3.5mm phone jack x 1 |
| USB 3.0 | 4 |
| COM | 4 |
| DC-in | 1 |
| Ethernet | RJ45 connector for Ethernet x 2 |
| Mechanical and Environmental | |
| AC/DC Adapter | Input: 100 – 240 V AC; Output: 19V DC |
| Fan/ Fanless | Fan |
| Enclosure | Aluminum + steel |
| Dimensions (H x W x D) | 1.7 x 8 x 9.1 in/ 43.5 x 202 x 232 mm |
| Weight | 4.6 lb/ 2.1 kg |
| Temperature | Operation: -10°C to 50°C (14°F to 122°F); Storage: -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% – 90% non-condensing |
