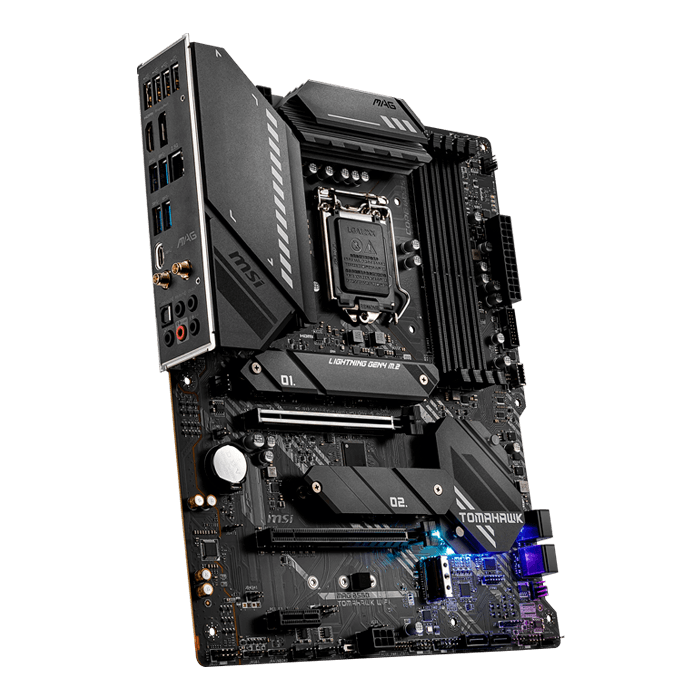

MAG B560 TOMAHAWK WIFI, Intel® B560 Chipset, LGA 1200, Type-C 2x2, ATX Motherboard

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core^™ Processors, Pentium^® Gold and Celeron^®1

Processor socket LGA1200

1. Please go to intel.com for compatibility information.

Intel^® B560 Chipset

• 4 x DDR4 memory slots, support up to 128GB ¹
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5066 MHz
    • 1DPC 2R Max speed up to 4600+ MHz
    • 2DPC 1R Max speed up to 4266+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

• 2x PCIe x16 slots
  1. Support up to PCIe 4.0 for 11th Gen Intel^® CPU
  2. Support up to PCIe 3.0 for 10th Gen Intel ® CPU
  1. Support up to PCIe 3.0 x4
1. PCI_E1 (from CPU)
2. PCI_E2 (from B560 chipset)
• 1x PCIe 3.0 x1 slot (from B560 chipset)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹²
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz¹²
1. Available only on processors featuring integrated graphics
2. Graphics specifications may vary depending on the CPU installed.

• Supports 2-Way AMD^® CrossFire^™ Technology

• 6x SATA 6Gb/s ports (from B560 chipset) ¹
• 3x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    1. Available only on 11th Gen Intel^® CPU
    2. Supports up to PCIe 4.0 x4
    3. Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2¹ slot (from B560 chipset)
    1. Supports up to PCIe 3.0 x4
    2. Supports SATA up to 6Gb/s
    3. Supports 2242/ 2260/ 2280 storage devices
    4. Intel^® Optane™ Memory Ready²
  • M2_3 slot (from B560 chipset)
    1. Supports up to PCIe 3.0 x4
    2. Supports 2242/ 2260/ 2280 storage devices
    3. Intel^® Optane^™ Memory Ready²
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• 1x Realtek^® RTL8125B 2.5Gbps LAN controller

• The Wireless module is pre-installed in the M.2 [Key-E] slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^® 5.2², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
2. Bluetooth 5.2 will be ready in WIN10 21H1.

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 5x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector
