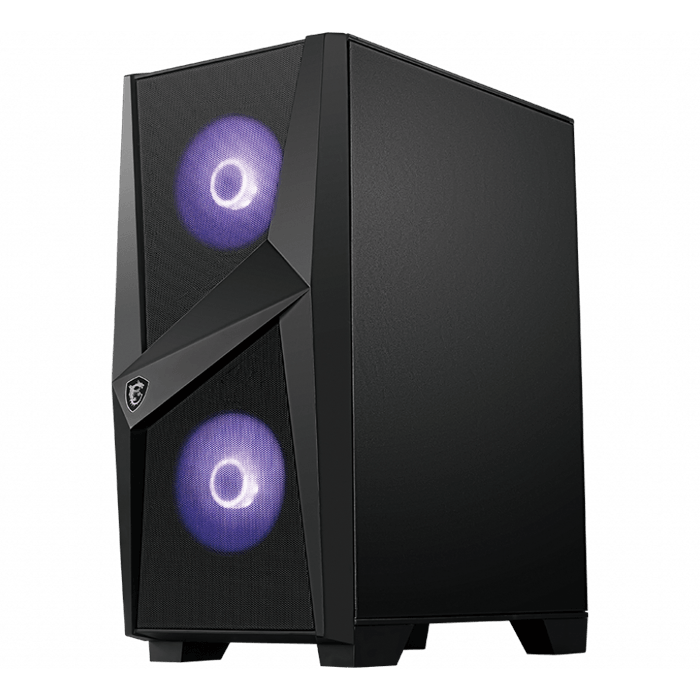

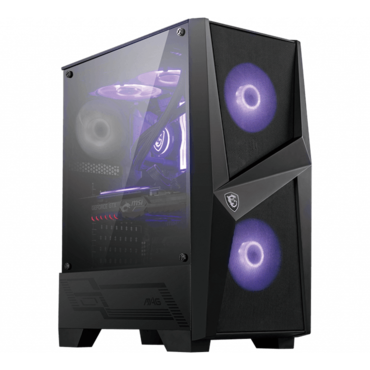

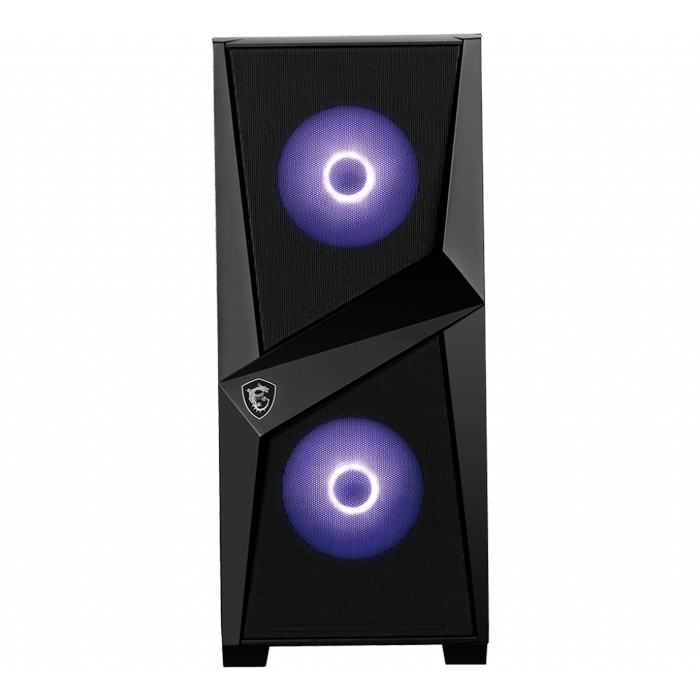

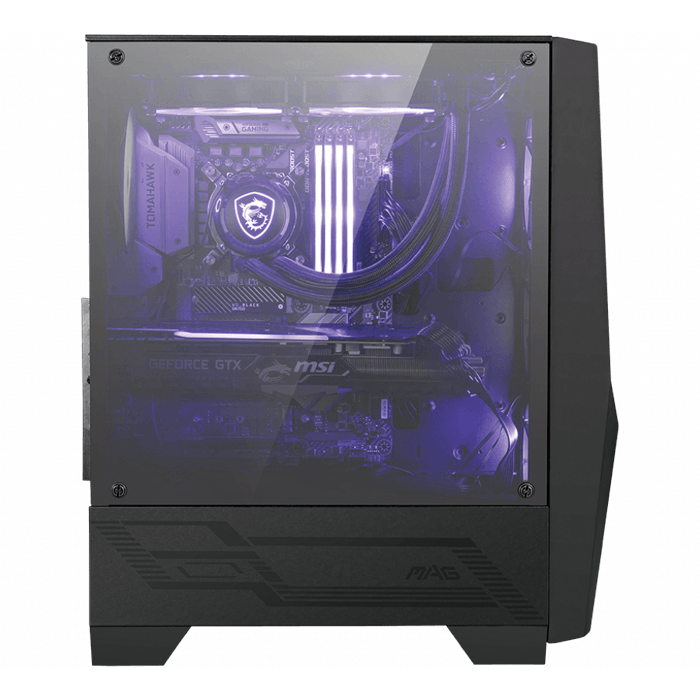

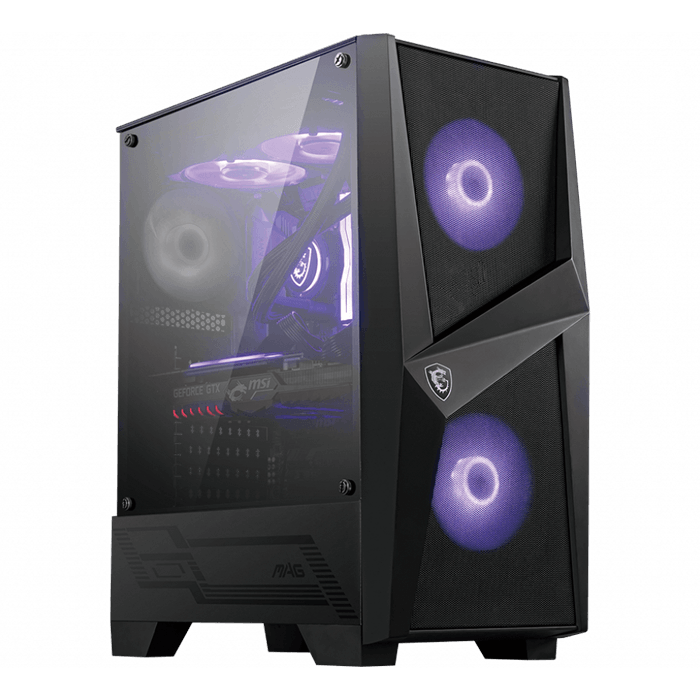

MSI FORGE 100M. Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.
PRODUCT NAME | MAG Forge 100M |
I/O PORTS | 2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1 x Mic |
DRIVER BAYS | 2 x 3.5” (compatible with 2.5”) + 3 x 2.5” |
CASE EXPANSION SLOTS | 7 |
MAXIMUM GPU LENGTH | 330 mm |
MAXIMUM CPU COOLER LENGTH | 160 mm |
POWER SUPPLY | Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed) |
COOLING LAYOUT |
Front:Up to 3 x 120 mm / 2 x 140 mm Top:Up to 2 x 120 mm / 2 x 140 mm Rear:Up to 1 x 120 mm |
PRE-INSTALL FAN |
Front:2 x 120 mm RGB LED Fan included Rear:1 x 120 mm System Fan included |
RADIATOR LAYOUT |
Front:Up to 240 mm Top:Up to 240 mm Rear:Up to 120 mm |
FORM FACTOR | Mid-Tower |
SUPPORT MB FORM FACTOR | ATX / mATX / Mini-ITX |
DIMENSION |
421(D) x 210(W) x 499(H) mm 17.05(D) x 8.27(W) x 19.65(H) inch |
WEIGHT | 5.64 kg |
