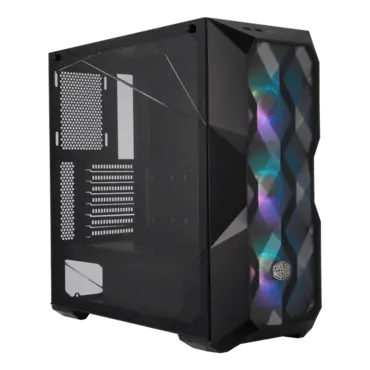

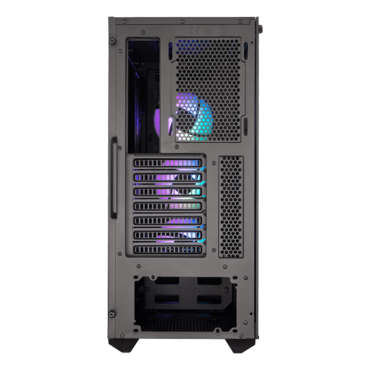

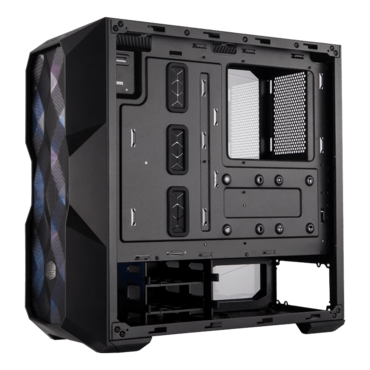

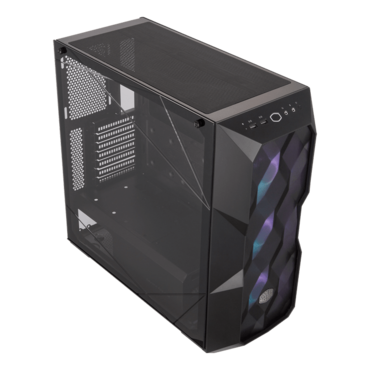

MASTERBOX TD500 MESH Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case

SKU: 13226267

Manufacturer: COOLER MASTER

MPN: MCB-D500D-KGNN-S01

Availability: Available


Price: $97.35
or as low as $3/month
Quantity:

COOLER MASTER MASTERBOX TD500 MESH (MCB-D500D-KGNN-S01). The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass. Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge.

MODEL NUMBER MCB-D500D-KGNN-S01
SERIES MasterBox Series
SIZE Mid Tower
AVAILABLE COLOR(S) Black
MATERIALS Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L X W X H) 493 x 217 x 469mm, 429.5 x 205x 447mm
WEIGHT 6.95 kg
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
EXPANSION SLOTS 7
5.25" DRIVE BAYS No
2.5" / 3.5" DRIVE BAYS (COMBO) 2
2.5" DRIVE BAYS 4 (2+2 combo)
I/O PANEL 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter
PRE-INSTALLED FANS - TOP N/A

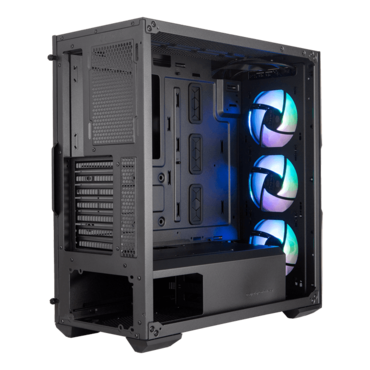

PRE-INSTALLED FANS - FRONT 3x 120mm ARGB Fans
PRE-INSTALLED FANS - REAR N/A
FAN SUPPORT - TOP 3x 120mm, 2x 140mm
FAN SUPPORT - FRONT 3x 120mm, 2x 140mm
FAN SUPPORT - REAR 1x 120mm
RADIATOR SUPPORT - TOP 120mm, 240mm, 360mm, (44mm max motherboard component height)
RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT - REAR 120mm
CLEARANCE - CPU COOLER 165mm/6.49"
CLEARANCE - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
CLEARANCE - GFX 410mm/16.1"
CABLE ROUTING 19mm/0.74"
DUST FILTERS Top, Bottom, Front
POWER SUPPLY SUPPORT Bottom mount, ATX
WARRANTY 2 years
EAN CODE 4719512095522 (Mesh w/ controller)
UPC CODE 884102067822 (Mesh w/ controller)
